Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Nuohua
-
Voltage:
-
220V 380V 415V
-
Dimension(L*W*H):
-
/
-
Weight (KG):
-
900 kg
-
Product name:
-
Packed Seafood Loading Unloading Conveyor
-
After Warranty Service:
-
Online support
-
Local Service:
-
None
Quick Details
-
Power:
-
2.2kw 1.5kw
-
Warranty:
-
3 years
-
Width or Diameter:
-
600mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Nuohua
-
Voltage:
-
220V 380V 415V
-
Dimension(L*W*H):
-
/
-
Weight (KG):
-
900 kg
-
Product name:
-
Packed Seafood Loading Unloading Conveyor
-
After Warranty Service:
-
Online support
-
Local Service:
-
None
|

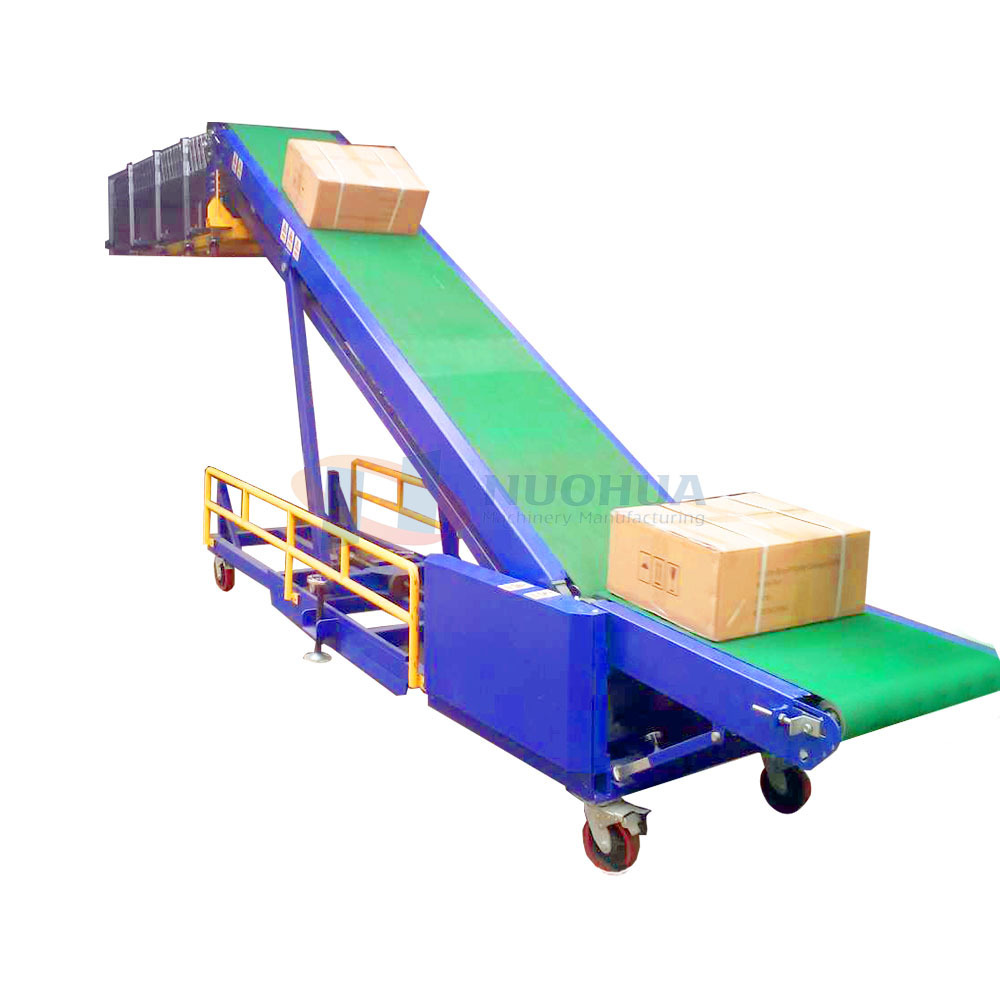

Telescopic belt conveyor loading/unloading ( with 4.2m motorized flexible conveyor)
|
|
|
|
Belt width
|
600 mm
|
|
|
Belt
|
High friction PVC belt with 5 mm thickness
|
|
|
Straight belt part length
|
900 mm
|
|
|
Inclined belt part length
|
3700 mm
|
|
|
Boom conveyor height
|
700-1800 mm adjustable
|
|
|
Flexible roller part length
|
2000-4200 mm
|
|
|
Roller
|
Dia. 50 mm galvanized steel roller
|
|
|
Castor
|
6'' PU castor with brake
|
|
|
Speed
|
10-20 m/min
|
|
|
Load capacity:
|
50kg/m
|
|
|
Motor for belt running
|
1.5 KW
|
|
|
Motor for lifting
|
2.2 KW
|
|
|
Motor for flexible power roller
|
60 W
|
|
|
Input
|
220V, 1PH, 50HZ
|
|
|
Two way direction of the conveyor:loading & unloading
|
|
|
|
Controller box: off/on, power light, abnormal light, forwaed/up, stop, reversal/down, emergency stop
|
|
|
Other Specification:
1. It help loading/unloading products for the trucks and containers.
2.The conveyor consists of two parts:FLEXIBLE TONGUE(two types optional) & UPGRADING CONVEYOR, which can both work independently.
3.Either type of flexible "tongue" can be lifted up to a certain height and extended towards target goods.
4.Controlled by one electrical box, it can be right started or stopped & runforward or reverse at will . It can be applied as a horizontal conveyor line when the tongue is not lifted.
1. It help loading/unloading products for the trucks and containers.
2.The conveyor consists of two parts:FLEXIBLE TONGUE(two types optional) & UPGRADING CONVEYOR, which can both work independently.
3.Either type of flexible "tongue" can be lifted up to a certain height and extended towards target goods.
4.Controlled by one electrical box, it can be right started or stopped & runforward or reverse at will . It can be applied as a horizontal conveyor line when the tongue is not lifted.
ABOUT
NUO
HUA
Founded in
2008 and based in Hangzhou, China, Nuohua has been in the field of conveyors for more than 15 years. We design and manufacture conveyor systems as well as a wide range of conveyor components. We’ve set up a distribution center in South Korea in 2008, offering OEM/ ODM flexible conveyors, roller conveyors, etc. to many distributors all over the world. We also handle conveying system projects in and outside of China, mainly cooperating with furniture companies, express enterprises, garment factories, E-commerce warehouses, etc. to offer them automation solutions. More than 10 years of expert experience makes us could offer better services and technical support to our customers from the beginning to after sales. We could say a lot more, but we prefer proving ourselves a good supplier through our competitive price, services, and quality!
Q: Are you a factory or trading company?
A: We are Professional manufacturer.
Q: How to buy?
A: Clear your requirements to our sales - get quotation - discuss details - order confirm - deposit payment - drawing reconfirm
-production - finished products photo and test video sent - packing - balance payment - delivery
Q: What about your delivery period?
A: Sample order or small quantity order 3-7 days, bulk production: 20 days.
Q: How can you guarantee quality?
A: 1. We have completed working system and procedures and we follow them
very strictly.
2. We will do strict test running after the machine is finished.
Q: How long is the warranty of the product?
A: 1 years.
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Paypal & MoneyGram and so on.
PLEASE be free to contact us if you have any confusion about anything!
