Quick Details
-
Warranty of core components:
-
2 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lei Na
-
Advantage:
-
Lifetime technical support
-
Brand:
-
Lei Na
-
Function:
-
Material handling platform vehicle
-
Electric drive:
-
motor drive
-
Certificates:
-
ISO
-
Load capacity:
-
1-300T customized
-
Power Source:
-
Lithium/storage Battery
-
Application:
-
Warehouse/ factory/ production line
-
Equipment size:
-
Customized
-
Running Speed:
-
0-20m/min(Adjustable)
Quick Details
-
Warranty:
-
2 years
-
Weight (KG):
-
6500
-
Marketing Type:
-
Hot Product 2023
-
Warranty of core components:
-
2 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lei Na
-
Advantage:
-
Lifetime technical support
-
Brand:
-
Lei Na
-
Function:
-
Material handling platform vehicle
-
Electric drive:
-
motor drive
-
Certificates:
-
ISO
-
Load capacity:
-
1-300T customized
-
Power Source:
-
Lithium/storage Battery
-
Application:
-
Warehouse/ factory/ production line
-
Equipment size:
-
Customized
-
Running Speed:
-
0-20m/min(Adjustable)
Product Description

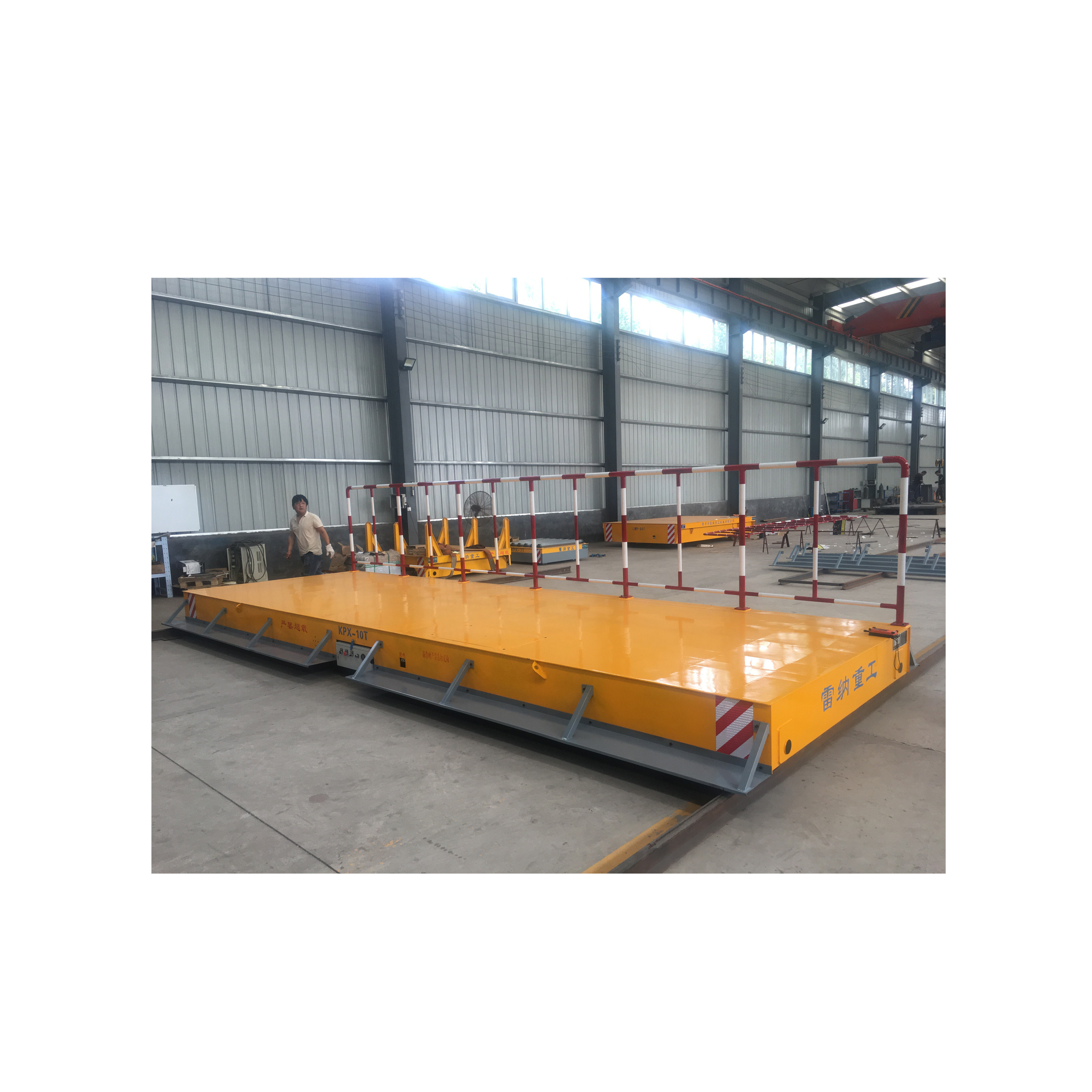

KPX battery powered transfer vehicle is a track transfer vehicle powered by batteries. The battery is installed inside the flat car and can be used for S-shaped tracks, curved tracks, as well as flammable, explosive, and ferry situations; Hydraulic or mechanical lifting systems and other devices are allowed to be installed on the flat car platform; Can achieve automated remote control.
|
model
|
KPX-2t
|
KPX-16t
|
KPX-25t
|
KPX-40t
|
KPX-63t
|
KPX-100t
|
KPX-150t
|
|||||||
|
Rated load capacity (t)
|
2
|
16
|
25
|
40
|
63
|
100
|
150
|
|||||||
|
Platform size
|
2*1.5*0.15
|
4*2*0.55
|
4.5*2.2*0.6
|
5*2.4*0.65
|
5.6*2.4*0.7
|
6.5*2.8*0.9
|
10*3*1.2
|
|||||||
|
Track width(m)
|
1.2
|
2.8
|
3.2
|
3.8
|
4.3
|
4.9
|
7
|
|||||||
|
Rail inner distance(m)
|
1.2
|
1.4
|
1.4
|
1.4
|
1.4
|
2
|
2
|
|||||||
|
Wheel Dia.(m)
|
Φ0.27
|
Φ0.35
|
Φ0.4
|
Φ0.5
|
Φ0.6
|
Φ0.6
|
Φ0.6
|
|||||||
|
Number of wheels(pieces)
|
4
|
4
|
4
|
4
|
4
|
4
|
8
|
|||||||
|
Ground clearance(mm)
|
50
|
50
|
50
|
50
|
75
|
75
|
75
|
|||||||
|
Running speed(m/min)
|
0-25
|
0-20
|
0-20
|
0-20
|
0-20
|
0-20
|
0-18
|
|||||||
|
Motor power(kW)
|
1
|
2
|
3
|
4
|
6.3
|
10
|
15
|
|||||||
|
Battery Capacity(Ah)
|
180
|
180
|
250
|
300
|
400
|
440
|
600
|
|||||||
|
Battery voltage(V)
|
24
|
48
|
48
|
48
|
48
|
72
|
72
|
|||||||
|
continuous running time(h)
|
4.32
|
4.3
|
4
|
3.6
|
3
|
3.2
|
2.9
|
|||||||
|
Range(km)
|
6.5
|
5.1
|
4.8
|
4.3
|
3.6
|
3.8
|
3.2
|
|||||||
|
Maximum wheel pressure(KN)
|
14.4
|
64.5
|
94.5
|
142.8
|
221.4
|
343.8
|
265.2
|
|||||||
|
Reference weight(t)
|
2.8
|
5.5
|
6.5
|
7.6
|
10.8
|
14.6
|
26.8
|
|||||||
|
Recommended track model
|
P15
|
P24
|
P38
|
P43
|
P50
|
QU100
|
QU100
|
|||||||
|
Explanation:
1.Load capacity, table size, and rail inner distance can be designed and manufactured according to customer needs; 2.Optional wireless remote control device (domestic or imported); 3.Optional automatic stop and limit device when encountering people; 4.Optional maintenance free batteries, lithium batteries, explosion-proof batteries, high-temperature batteries, etc; 5.Optional DC brushed motor and DC brushless motor; 6.It can be optionally equipped with domestic and imported appliances. |
|
|
|
|
|
|
|
|||||||
Detailed Images
Company Introduction
Xinxiang LeiNa Heavy Industry Machinery Co., Ltd. has 23 years of professional research and development and production of material handling equipment. With over 20 years of experience in research and development, the company has a first-class management team.
Undertake the design and production of 1-500 ton industrial transfer vehicles and heavy-duty material handling vehicles, suitable for the transportation of goods in workshops and work areas.
