22 Gauge 4 Conductors Red Black Wire with Fire Resistant CL2P White Jacket 22AWG OFC Hookup Electrical Wire LED Strips Extension

22 Gauge 4 Conductors Red Black Wire with Fire Resistant CL2P White Jacket 22AWG OFC Hookup Electrical Wire LED Strips Extension

FOB Reference Price: Get Latest Price

≥5000 Meters

US $0.6

≥10000 Meters

US $0.48

≥50000 Meters

US $0.43

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Jacket:: PVC

Place of Origin:: Guangdong, China

Brand Name:: Hejia

Model Number:: HJSP60

Product name:: Copper Core PVC Insulated Electrical Power Cable

No. of Cores:: 4 Core

Color:: White

Conductor:: Bare Copper

Certificate:: UL,ROHS,REACH

Rated voltage:: 300/500V

Insulation:: PVC Insulation Control Cable

Standard:: UL13

Length:: Lengths Customize

Hot Sale Size:: 22AWG,18AWG,16AWG,14AWG

Quick Details

Insulation Material:: PVC

Application:: LED Light Lamp

Conductor Material:: Copper

Jacket:: PVC

Place of Origin:: Guangdong, China

Brand Name:: Hejia

Model Number:: HJSP60

Product name:: Copper Core PVC Insulated Electrical Power Cable

No. of Cores:: 4 Core

Color:: White

Conductor:: Bare Copper

Certificate:: UL,ROHS,REACH

Rated voltage:: 300/500V

Insulation:: PVC Insulation Control Cable

Standard:: UL13

Length:: Lengths Customize

Hot Sale Size:: 22AWG,18AWG,16AWG,14AWG

Product Description

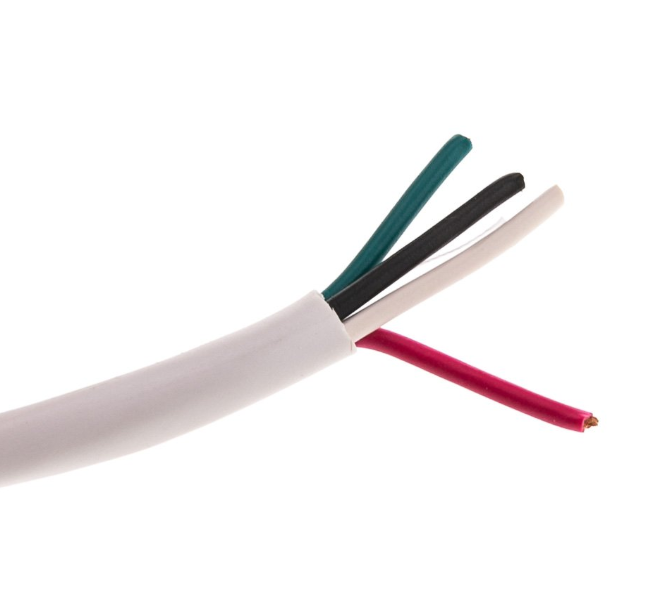

22 Gauge 4 Conductors Red Black Wire with Fire Resistant CL2 White Jacket 22AWG OFC Hookup Electrical Wire LED Strips Extension

Product specifications: 22 AWG 4Pin Maximum input voltage: 300V. Maximum current: 5A Color: red and black. Material: pure copper
or tinned copper. High conductivity: There are 17 strands of copper wire inside each cable. High-precision oxygen-free copper has
good conductivity. Compared with aluminum, pure copper has lower resistance and higher conductivity.
Wide range of applications: The red and black pure copper wires are soft, easy to weld, and suitable for low voltage (5V-12V-24V)
installation. It is widely used in various low-voltage situations, as the extension cord of monochromatic LED light bar, power
supply and other low-voltage lighting.
Durable material: The sheath/insulation material is PVC (UL) to protect the wires from abrasion, sunlight and chemical corrosion.
The rated working temperature is as high as 80°C/176°F.

Brand Name:Hejia Cable

Length:50feet to 500feet
Color:White color or black color
Jacket material:PVC
Conductor material:Pure copper
Input Voltage：110.00 volts
Item Diameter：0.14 inches
Outside Diameter：4.5 millimeters
Strands：17
Voltage：300.00 volts

More details for this cables

1.Item: 2-Conductor Stranded wire.
2.Type: Low Voltage LED Extension Cord
3.Cable construction: 17 strand wire
4.Conductor cross section: 0.75,1.0,1.5,2.0,2.50mm²
5.Conductor material:OFC OR tinned copper
6.Insulation material:PVC
7.Color:whie color or black color
8.Outer diameter:4.5mm
9.Packaging: Coil,Spool, Header Card,Blister, Gift box, pull box and other package could design according to customer
requirements.10.Length: 1 meter to 100meter
11.Plus-/minus marking: Yes
12.Meter marking on the PVC jacket: from 1 meter to 100meter

22 AWG extension cable can be used to run 80-300V power(But suggest for 12V 24V 5V LED LIGHT). This extension cable are ideal
items for connecting LED strips to the 12V/24v power supply when you are trying to arrenge a beautiful LED light scenery. This
extension cable can be used with all 5V 12V or 24V LED lights products .
