Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINDUN
-
Product name:
-
workshop exhaust fan
-
Application:
-
poultry farm air cooling fans
-
Product type:
-
greenhouse wall mounted air ventilation hoods
-
Material:
-
Steel
-
Size:
-
24" 36" 50" 55"
-
mounting:
-
wall/windows
-
blade:
-
stainless steel 403
-
power:
-
motor, belt driving
-
service life:
-
8years
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Printing Shops, Construction works
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINDUN
-
Product name:
-
workshop exhaust fan
-
Application:
-
poultry farm air cooling fans
-
Product type:
-
greenhouse wall mounted air ventilation hoods
-
Material:
-
Steel
-
Size:
-
24" 36" 50" 55"
-
mounting:
-
wall/windows
-
blade:
-
stainless steel 403
-
power:
-
motor, belt driving
-
service life:
-
8years

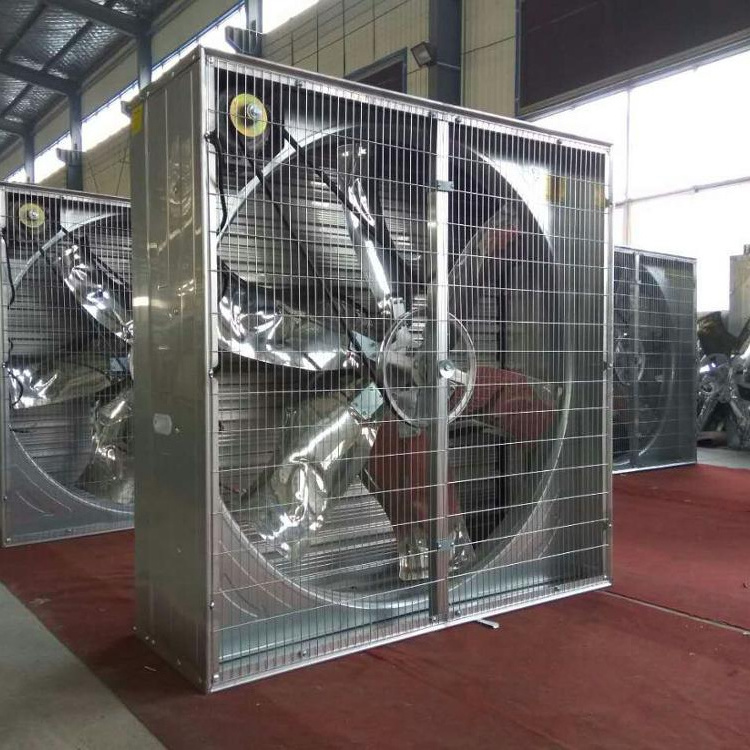

one side of the fan is shutter with heavy hammer openning device, easy opening and closing, 0.45mm thickness. the other side is guard net
Krupp stainless steel 430 propeller type blades, 1380mm industrial workshop exhaust fan / poultry farm cooling fan / greenhouse wall mounted air venter
High strength nylon swung drop hammer opening device can ensure the shutters opening and closing flexibly,
easy operating and maintance with light weight and long service life
Motor power and belt drive method, Type B belt imported from Japan, ensure long service life.
Siemens motor and Chinese famous motor are for option, 220V/380V/460V, 50hz/60hz, 1phase/3phase are available.
Fan belt pulley and flange, with light weight and lower vibration, are made of high strength aluminum-magnesium alloy by die-casting. Blast-sanding treatment for attractive appearance and eliminate internal stress
widely used for cooling system of tunnel film greenhouse, glass greenhouse, hydroponic greenhouse
Technical parameter:
| Model |
Dirve method |
Dia.of blades mm |
Speed of blades mm |
Motor speed RPM |
Air flow m³/h |
Total pressure Pa |
Noise db |
Input power W |
Rated Voltage V |
Overall dimensions Height*Width*Thickness mm |
| JDFH-620 | Direct | 500 | 1400 | 1400 | 5700 | 55 | ≤70 | 250 | 380 | 620*620*370 |
| JDFH-800 | Belt | 710 | 650 | 1400 | 18000 | 60 | ≤60 | 370 | 380 | 800*800*400 |
| JDFH-1000 | Belt | 900 | 610 | 1400 | 25000 | 70 | ≤70 | 750 | 380 | 1000*1000*400 |
| JDFH-1100 | Belt | 1000 | 600 | 1400 | 325000 | 70 | ≤70 | 750 | 380 | 1100*1100*400 |
| JDFH-1220 | Belt | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220*1200*400 |
| JDFH-1380 | Belt | 1270 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380*1380*400 |
| JDFH-1530 | Belt | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530*1530*400 |
