Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Powder Filling Packing Machine
-
Film material:
-
OPP/CPP,OPP/PE,BOPP/VMPET/PE etc
-
Packing Speed:
-
10-30 bags/min
-
Bag type:
-
Pillow Bag,Stand up pouch
-
Film Width:
-
Max.720mm
-
Bag Length:
-
180-350mm
-
Bag Width:
-
100-500mm
-
Range of Measurement:
-
4000ml
-
Optional functions:
-
Air filling,Date Print,Hole Pouching,etc
-
Warranty Period:
-
One year
Quick Details
-
Function:
-
FILLING, Labeling, Sealing, Wrapping
-
Packaging Type:
-
Bags, Film, Pouch, Stand-up Pouch
-
Packaging Material:
-
Plastic
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Powder Filling Packing Machine
-
Film material:
-
OPP/CPP,OPP/PE,BOPP/VMPET/PE etc
-
Packing Speed:
-
10-30 bags/min
-
Bag type:
-
Pillow Bag,Stand up pouch
-
Film Width:
-
Max.720mm
-
Bag Length:
-
180-350mm
-
Bag Width:
-
100-500mm
-
Range of Measurement:
-
4000ml
-
Optional functions:
-
Air filling,Date Print,Hole Pouching,etc
-
Warranty Period:
-
One year

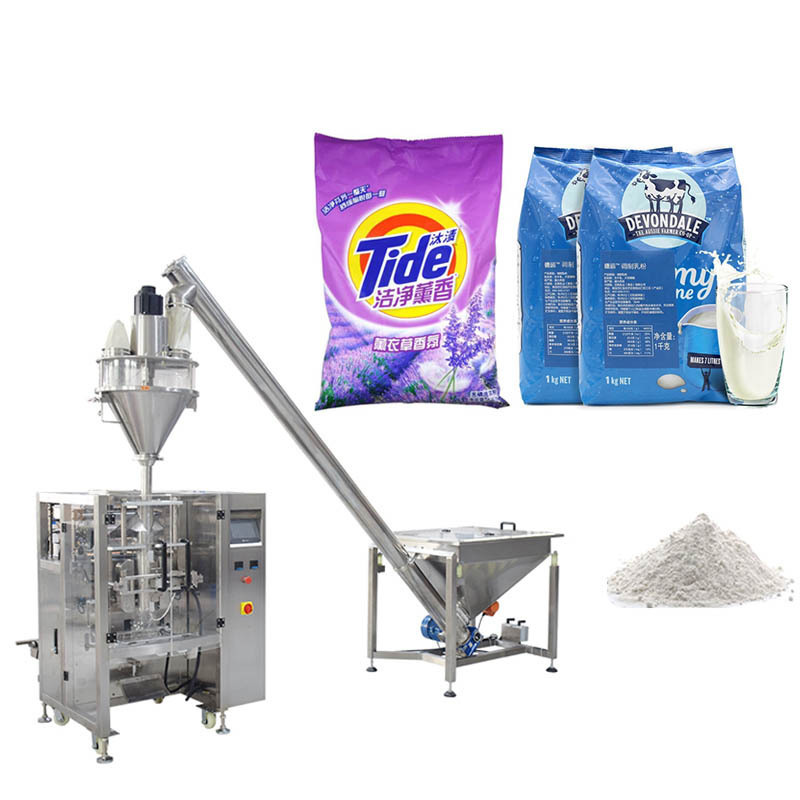

Automatic Vertical 1kg 2kg 5kg Washing Powder/ Detergent Powder Filling Packing Machine
>>Main Features
- Computer control and English-Chinese touch screen for easy operation without stopping the unit.
- Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.
- Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
- Full automation from bag making, measuring, filling, sealing, counting and date printing.
>>Application:
- For materials requiring high accuracy of measurement or careful handling, such as milk powder, sugar powder, coffee powder, wheat flour, detergent powder, coconut powder, etc .
- Various bag types are available, e.g. pouch, back-sealing bag,linking bags,etc
>>Package material: BOPP/CPP/VMCPP,BOPP/PE,PET/VMPET,PE,PET/PE,et c
Packing Samples:
Main Frame Specification:
| Model | LD-420(upgrade) | LD-520(upgrade) | LD-720(upgrade) |
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Lenth | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Film Roll diameter | Max.320mm | Max.320mm | Max.320mm |
| Packaging Rate | 5-60bags/min | 5-60bags/min | 5-55bags/min |
| Measurement Range | 150-1500ml | 2000ml | 4000ml |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V/3KW |
| Machine Size | (L)1217*(W)1015*(H)1343mm | (L)1488*(W)1080*(H)1490mm | (L)1780*(W)1350*(H)2050mm |
| Machine Weight | About 650KG | About 680KG | About 750KG |
(Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size)
Need more machines details or videos? Please contact us directly !
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
· Products to be packed
· Type of pouches to be used , size and type of packaging film
· Production capacity requ irement
· Automation requirement
· Protection requirement
· Other specific requirement
