Operating environment
|
|
|
|
Content
|

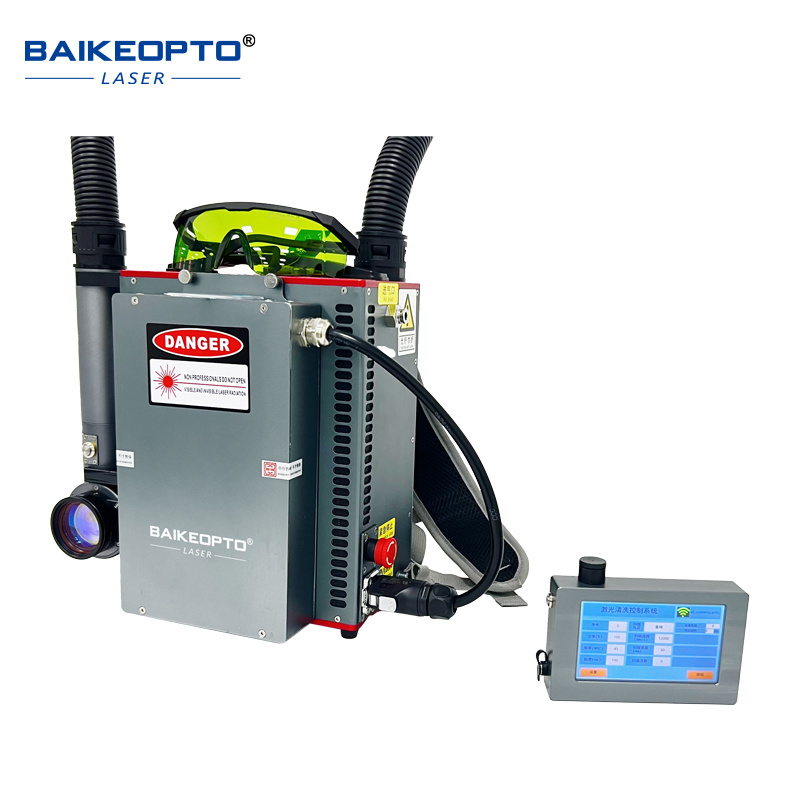

BK-FLC50SC
|
|
|
Supply voltage
|
Optional single battery, 50W continuous work 2h
|
|
|
|
Standard AC220V±10%, 50/60Hz power adapter (output DC48V)
|
|
|
Power consumption
|
＜400W
|
|
|
Working environment temperature
|
5℃～40℃
|
|
|
Working environment humidity
|
≤80%
|
|
|
Optical parameters
|
|
|
|
Average laser power
|
≥50W
|
|
|
Power instability
|
＜5%
|
|
|
Laser Working Mode
|
Pulse
|
|
|
Pulse width
|
80-110ns
|
|
|
Maximum monopulse energy
|
1.1mJ
|
|
|
Power regulation range (%)
|
10-100 (Gradient Adjustable)
|
|
|
Repeat frequency (kHz)
|
45-170 (Gradient Adjustable)
|
|
|
Fiber length
|
1.5m
|
|
|
Cooling mode
|
Air cooling
|
|
|
Cleaning Head Parameters
|
|
|
|
Scan range (length * width)
|
0mm~100 mm, continuously adjustable;
|
|
|
|
Biaxial supporting 8 scanning modes
|
|
|
Scanning frequency
|
10Hz~300Hz Continuous Adjustable
|
|
|
Field mirror focal length (mm)
|
160mm (Optional 210mm/254mm/330mm/420mm)
|
|
|
Depth of focus
|
About 5 mm
|
|
|
Mechanical parameters
|
|
|
|
Machine size (Length, width and height)
|
About 328mm×118/163mm×303mm
|
|
|
Machine Weight
|
About 7Kg (Do not contain batteries)
|
|
|
Cleaning head weight (including isolator)
|
＜0.75Kg
|
|
|
Mode of operation
|
Handheld/automated
|
|
|
Name of name
|
Model specifications
|
Units
|
Quantity
|
|
Laser cleaning mainframe
|
BK-FLC50SC
|
Table
|
1
|
|
Laser cleaning head
|
QCDXY100P
|
Set
|
1
|
|
Process database
|
Built-in
|
Set
|
1
|
|
Laser protective glasses
|
SD-3
|
Payment
|
1
|
|
protect the lens
|
48*3
|
Pcs
|
5
|
|
Lens cleaning kit
|
|
Pcs
|
10
|
