NdFeB 2 inches magnetron sputtering gun with low impedance sputtering head

NdFeB 2 inches magnetron sputtering gun with low impedance sputtering head

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Name:: Magnetron Sputter Source

Power Requirement:: DC (Max.) 500 W RF (Max.) 300 W

Electrical Connection:: Standard HN Female Connector

Sputtering Current (Max.):: 5 Amp

Sputtering Voltage:: 200-1000 V

Sputtering Pressure:: 1-1000 mTorr

Dimensions:: Anode Shield Diameter: 86mm

Sputtering Target:: Diameter: 2.0" (50.8mm),

Target Thickness:: up to 1/4" for non-magnetic target; up to 1/16" for magnetic target

Mounting:: Feedthrough: 3/4" O.D.tube

Certification:: CE

Quick Details

Warranty:: 1 YEAR

Brand Name:: TN

Model Number:: HVMSS-SPC-2

Place of Origin:: Henan, China

Name:: Magnetron Sputter Source

Power Requirement:: DC (Max.) 500 W RF (Max.) 300 W

Electrical Connection:: Standard HN Female Connector

Sputtering Current (Max.):: 5 Amp

Sputtering Voltage:: 200-1000 V

Sputtering Pressure:: 1-1000 mTorr

Dimensions:: Anode Shield Diameter: 86mm

Sputtering Target:: Diameter: 2.0" (50.8mm),

Target Thickness:: up to 1/4" for non-magnetic target; up to 1/16" for magnetic target

Mounting:: Feedthrough: 3/4" O.D.tube

Certification:: CE

Product Description

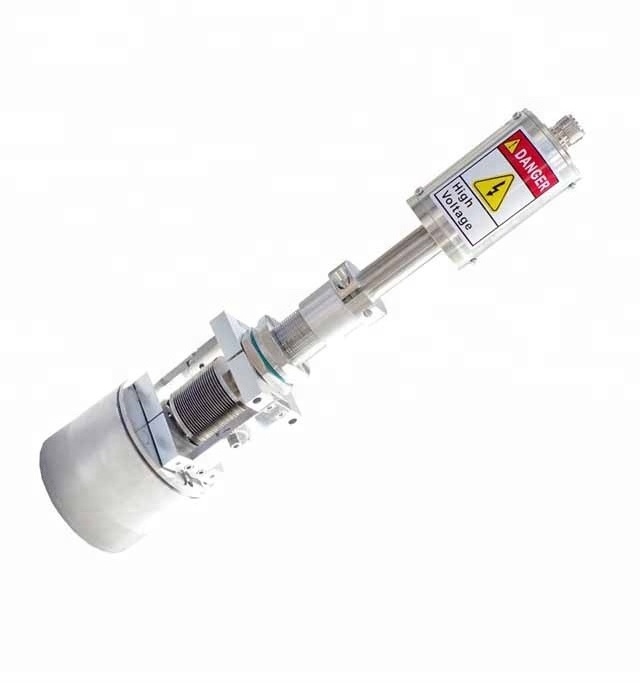

The TN-HVMSS-SPC-2 is a 2" diam. circular magnetron sputtering source which can accommodate a wide range of sputtering targets, such as metallic/insulating or magnetic/non-magnetic. The circular rare-earth NdFeB permanent magnet is implemented to ensure excellent film uniformity and target utilization. Such a sputtering gun is easy to operate and maintain. Installation is straight forward and it can be operated with either DC or RF power supply.

Technical parameters:

Features	The sputtering head can be tilted +/- 25 degrees for adjusting the incidence angle of bombardments to improve the sputtering yield. Made of high-quality materials of stainless steel and ceramics. Electromagnetic finite element calculations are used in the design of the permanent magnetic assembly to achieve high field strength and uniform field profile. The magnet is coated with protective material against cooling water corrosion to maximize durability. Standard RF connector, which matches with a wide range of DC and RF sputtering power supplies. The low impedance sputtering heads are easily interfaceable with an external power supply. Easy to install a standard fitting with included quick connector 2" Copper Backing Plate is included. Target replacement is easy and no need to adjust the gun to fit targets with different height.
Power Requirement	DC (Max.) 500 W RF (Max.) 300 W
Electrical Connection Type	Standard HN Female Connector is included (DC and RF, Pic.1) Optional SL16 cable Connector Optional 148 cm RF cable with SL6 connector
Sputtering Current (Max.)	5 Amp
Sputtering Voltage	200-1000 V
Sputtering Pressure	1-1000 mTorr
Dimensions	Anode Shield Diameter: 86mm
Sputtering Target	Diameter: 2.0" (50.8mm), Thickness: up to 1/4" for non-magnetic target; up to 1/16" for magnetic target Utilization: up to 30% Magnet: NdFeB Rare Earth Magnet
Cooling Water Requirement	Flow Rate: 0.8 GPM, filtered Water Inlet Temperature: <20 C Water tubing: 6mm quick disconnect
Mounting	Feedthrough: 3/4" O.D.tube
Net Weight	3.5 lbs
