Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PowMr
-
Model Number:
-
POW-HVM4.5K-24V
-
Input Voltage:
-
120V-450V
-
Output Voltage:
-
220v/230v/240v
-
Output Current:
-
80A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
46.8*31.8*15.9
-
Certificate:
-
CE
-
Warranty:
-
24 Months
-
Weight:
-
9.5kg
-
Product name:
-
Off-grid Hybrid Inverter built in MPPT Solar charger
-
Battery type:
-
Lead Acid \ Lithium \ Gel
-
Charging type:
-
MPPT
-
Max PV input voltage:
-
120V-450V
-
Max PV input:
-
6000W
-
AC charging current:
-
80A
-
Communication:
-
RS232/RS485/WIFI
-
Display:
-
LCD+LED Display
-
Cooling:
-
3 fans in the top
-
Application:
-
Solar Power System Home
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PowMr
-
Model Number:
-
POW-HVM4.5K-24V
-
Input Voltage:
-
120V-450V
-
Output Voltage:
-
220v/230v/240v
-
Output Current:
-
80A
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
46.8*31.8*15.9
-
Certificate:
-
CE
-
Warranty:
-
24 Months
-
Weight:
-
9.5kg
-
Product name:
-
Off-grid Hybrid Inverter built in MPPT Solar charger
-
Battery type:
-
Lead Acid \ Lithium \ Gel
-
Charging type:
-
MPPT
-
Max PV input voltage:
-
120V-450V
-
Max PV input:
-
6000W
-
AC charging current:
-
80A
-
Communication:
-
RS232/RS485/WIFI
-
Display:
-
LCD+LED Display
-
Cooling:
-
3 fans in the top
-
Application:
-
Solar Power System Home
Good reviews
Products Description

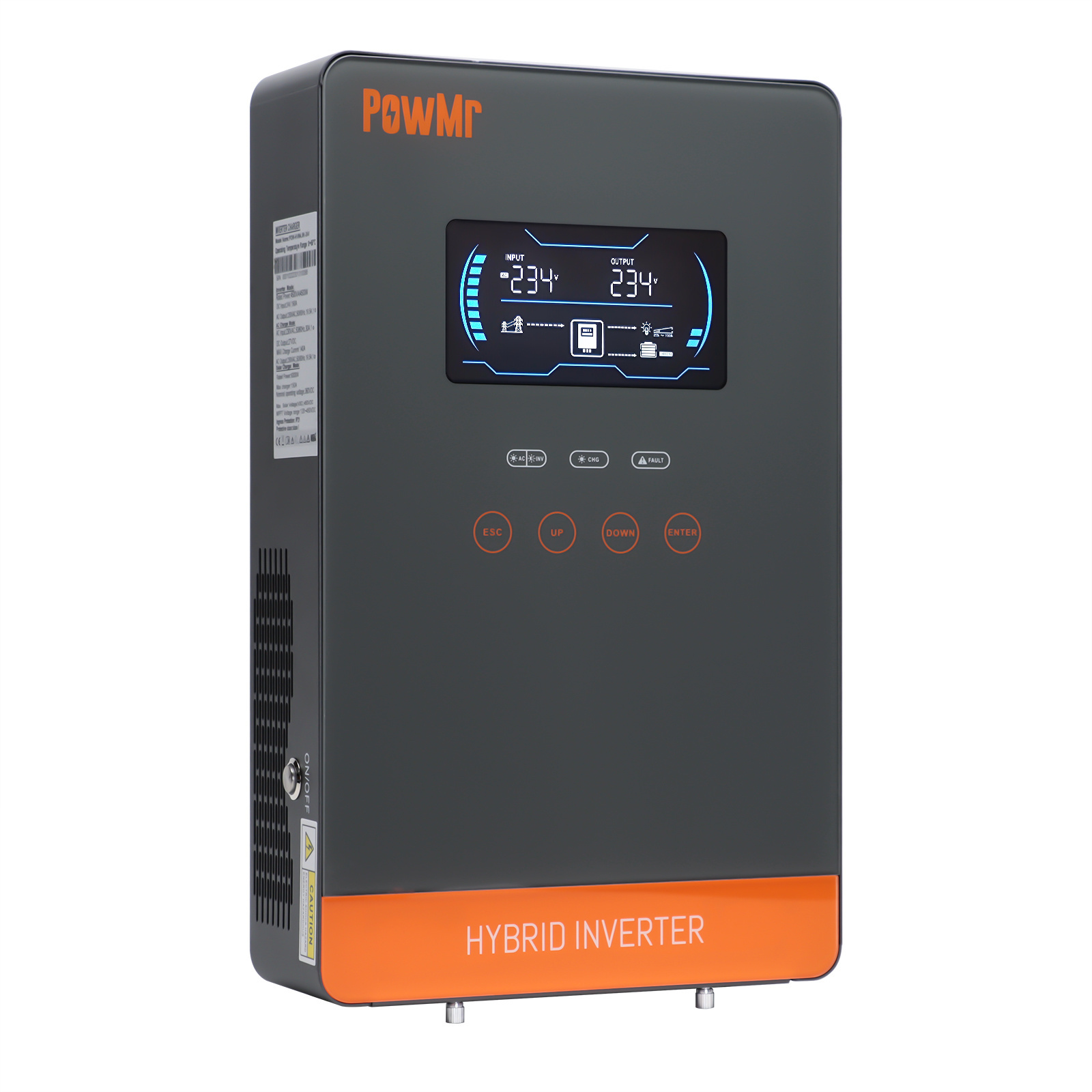

PowMr PowMr 4500W 24V Hybrid Inverter MPPT 230V Pure Sine Wave Solar Inverter 220V Hybrid Solar Inverter For Solar System
Features
55~500Vdc wide voltage range for PV access.
Built-in 150A MPPT (Max. PV) solar charger.
Anti-dusk kit for harsh environment. (Optional).
Built-in lithium battery automatic activation.
Unique glass top cover design.
Compatible with 24V lithium-ion and lead-acid battery.
Higher output power up to 4500W, output power factor of 1.0.
No derating when the AC input Voltage is greater than 170V.
Max. solar charging efficiency up to 98%.
Standby power consumption is only 2W.
Communication with RS232/RS485.
WiFi monitoring function(optional).
Restore default Settings with one click.
Installation Instructions
Product Paramenters
|
（1）Line Mode Specifications
|
|
|
||
|
INVERTER MODEL
|
POW-HVM4.5K-24V
|
POW-HVM6.5K-48V
|
||
|
Input Voltage Waveform
|
Pure Sine Wave(Utility or Generator)
|
|
||
|
Nominal Input Voltage
|
230Vac
|
|
||
|
Max AC Input Voltage
|
300Vac
|
|
||
|
Efficiency(Line Mode)
|
>95%( Rated R load,battery full charged)
|
|
||
|
Transfer Time
|
10ms typical(UPS);20ms typical(Appliances)
|
|
||
|
（2）Charge Mode Specifications
|
|
|
||
|
Utility Charging Mode
|
|
|
||
|
INVERTER MODEL
|
POW-HVM4.5K-24V
|
POW-HVM6.5K-48V
|
||
|
Charging Algorithm
|
3-Step
|
|
||
|
AC Charging Current (Max)
|
80A
|
80A
|
||
|
MPPT Solar Charging Mode
|
|
|
||
|
INVERTER MODEL
|
POW-HVM4.5K-24V
|
POW-HVM6.5K-48V
|
||
|
Max. PV Array Power
|
6000W
|
6500W
|
||
|
Nominal PV Voltage
|
300-380V
|
|
||
|
PV Array MPPT Voltage Range
|
55Vdc~450Vdc
|
|
||
|
Max. PV Array Open Circuit Voltage
|
450Vdc
|
|
||
|
Max Charging Current(AC charger plus solar charger)
|
150A
|
130A
|
||
|
（3） Inverter Mode Specifications
|
|
|
||
|
INVERTER MODEL
|
POW-HVM4.5K-24V
|
POW-HVM6.5K-48V
|
||
|
Rated Output Power
|
4.5KVA/4.5KW
|
6.5KVA/6.5KW
|
||
|
Output Voltage Waveform
|
Pure Sine Wave
|
|
||
|
Output Voltage Regulation
|
230Vac±5%
|
|
||
|
Output Frequency
|
50HZ/60HZ
|
|
||
|
Peak Efficiency
|
94%
|
|
||
|
Overload Protection
|
5s@≥150% load; 10s@101%~150% load
|
|
||
|
Surge Capacity
|
2* rated power for 5 seconds
|
|
||
|
Nominal DC Input Voltage
|
24Vdc
|
48Vdc
|
||
|
Cold Start Voltage
|
23.0Vdc
|
46.0Vdc
|
||
|
Low DC Warning Voltage
|
22.0Vdc
|
44.0Vdc
|
||
|
Low DC Warning Return Voltage
|
23.0Vdc
|
46.0Vdc
|
||
|
Low DC Cut-off Voltage
|
21.0Vdc
|
42.0Vdc
|
||
|
High DC Recovery Voltage
|
29.0Vdc
|
58.0Vdc
|
||
|
High DC Cut-off Voltage
|
31.0Vdc
|
62.0Vdc
|
||
|
No Load Power Consumption
|
35W
|
50W
|
||
|
（4） General Specifications
|
|
|
||
|
INVERTER MODEL
|
POW-HVM4.5K-24V
|
POW-HVM6.5K-48V
|
||
|
Safety Certification
|
CE
|
|
||
|
Operating Temperature Range
|
0°C to 55°C
|
|
||
|
Storage temperature
|
-15°C~ 60°C
|
|
||
|
Dimension (D*W*H), mm
|
468*318* 159mm
|
|
||
|
Net Weight, kg
|
9.5kg
|
10.5kg
|
||
Details Images
Product packaging
Q1: How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3. We want to know month capacity.
A3: 20000-30000PCS per Month.
Q4: How is your technical
support?
A4: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the
payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information,Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings
