Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
BIPV Mounting
-
Certificate:
-
CE,FCC,RoHs, UL,TUV
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Joyvoit
-
Model Number:
-
MESS2500H
-
Load Power (W):
-
1KW
-
Output Voltage (V):
-
18V~60V
-
Product name:
-
offgrid Solar Power Systems
-
Battery type:
-
LifePO4
-
Battery Capacity:
-
2240Wh
-
Battery Dimension (L*W*H):
-
350*290*160mm
-
Charge/discharge current:
-
50A
-
Micro inverter:
-
with 1.5m AC cable, 800W, 33-60V
-
Solar panels:
-
410W x2 units, Mono-crystalline
-
Mounting brackets:
-
Aluminum
-
DC 5V output:
-
USB & Type C
-
Life cycles:
-
>6000(25℃)
Quick Details
-
Application:
-
Balcony
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
BIPV Mounting
-
Certificate:
-
CE,FCC,RoHs, UL,TUV
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Joyvoit
-
Model Number:
-
MESS2500H
-
Load Power (W):
-
1KW
-
Output Voltage (V):
-
18V~60V
-
Product name:
-
offgrid Solar Power Systems
-
Battery type:
-
LifePO4
-
Battery Capacity:
-
2240Wh
-
Battery Dimension (L*W*H):
-
350*290*160mm
-
Charge/discharge current:
-
50A
-
Micro inverter:
-
with 1.5m AC cable, 800W, 33-60V
-
Solar panels:
-
410W x2 units, Mono-crystalline
-
Mounting brackets:
-
Aluminum
-
DC 5V output:
-
USB & Type C
-
Life cycles:
-
>6000(25℃)

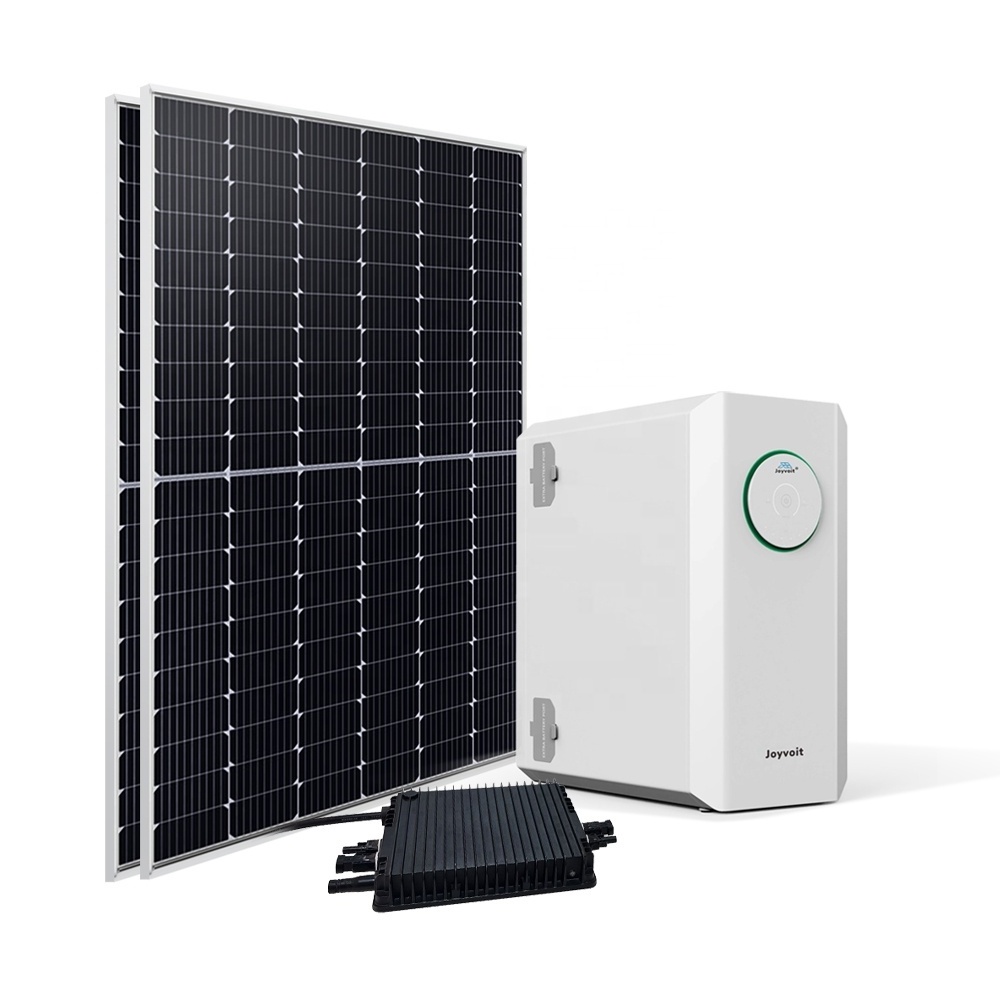

Harnessing Solar Energy System: The MESS Solution
Model: MESS2500H
Compact
48V lithium batteries 500W and Micro Inverter with aluminum brackets Hybrid 2.5KW MESS Balcony solar system
Micro Energy Storage System (MESS) :
The Micro Energy Storage System (MESS) is a groundbreaking innovation that brings solar power right to your balcony. harnessing the sun's energy to power your home, charge your devices, and provide emergency backup—all from the comfort of your own outdoor space. Also the Solar Balcony System with Intelligent Battery (MESS) is more than just a power solution—it's a lifestyle upgrade. Embrace sustainability, enjoy uninterrupted energy, and make your balcony a hub of clean power!
Features :
1.
Round-the-Clock Power
a. Daytime Energy: MESS generates electricity during daylight hours. Whether you’re brewing your morning coffee or running your washing machine, you’re using clean, renewable energy.
b. Nighttime Power: When the sun sets, the MESS battery takes over. You can power your lights, gadgets, and appliances without relying on the grid. Say goodbye to high electricity bills! 2. Mobile Charging and 5V Appliances
b. Nighttime Power: When the sun sets, the MESS battery takes over. You can power your lights, gadgets, and appliances without relying on the grid. Say goodbye to high electricity bills! 2. Mobile Charging and 5V Appliances
a. Charge Your Devices: Plug your smartphone, tablet, or smart watch into the MESS system. It’s like having a personal charging station right on your balcony.
b. 5V Appliances: Need to power a fan, a small speaker, or a USB lamp? MESS has you covered. It’s perfect for creating a cozy outdoor ambiance. 3. Grid Independence and Emergency Backup
b. 5V Appliances: Need to power a fan, a small speaker, or a USB lamp? MESS has you covered. It’s perfect for creating a cozy outdoor ambiance. 3. Grid Independence and Emergency Backup
a. Grid Independence: MESS operates independently of the grid. Even during power outages or maintenance, your balcony remains a reliable energy source.
b. Emergency Power: Imagine a stormy night with no electricity. MESS provides essential power for emergency lighting, communication devices, and medical equipment.
c. Scalability and Parallel Capability: MESS allows users to connect up to 6 units in parallel. Scalability ensures flexibility
for varying energy needs and future expansion.
b. Emergency Power: Imagine a stormy night with no electricity. MESS provides essential power for emergency lighting, communication devices, and medical equipment.
c. Scalability and Parallel Capability: MESS allows users to connect up to 6 units in parallel. Scalability ensures flexibility
for varying energy needs and future expansion.
|
S/N
|
Specifications
|
|
|
||
|
|
|
|
|
||
|
1
|
Solar panels
|
Power
|
410W * 2
|
||
|
|
|
Type
|
Mono-crystalline
|
||
|
|
|
Color
|
black
|
||
|
|
|
Cable
|
3m * 2
|
||
|
2
|
Mounting brackets
|
Material
|
aluminum
|
||
|
|
|
mounting type
|
ground
|
||
|
|
|
quantity
|
2 sets
|
||
|
3
|
Micro inverter with 1.5m AC cable
|
Power output max.
|
800W
|
||
|
|
|
type
|
Micro inverter
|
||
|
|
|
PV open circuit voltage
|
33-60V
|
||
|
|
|
Recommend solar panels
|
2*475W
|
||
|
|
|
Output voltage
|
230V or 120V, 50hz/60hz
|
||
|
|
|
Efficiency
|
99.50%
|
||
|
|
|
Temp. range:
|
- 20°C to + 50°C
|
||
|
|
|
AC cable
|
5m with plug
|
||
|
4
|
Battery unit
|
Model:
|
MESS2500H
|
||
|
|
|
Battery
|
LiFePO4
|
||
|
|
|
Battery capacity
|
2240Wh
|
||
|
|
|
MPPT for Solar
|
500W*2
|
||
|
|
|
MPPT input current
|
10A
|
||
|
|
|
MPPT inputs
|
MC4*2
|
||
|
|
|
PV max. voltage
|
59V
|
||
|
|
|
DC output power
|
800W
|
||
|
|
|
DC output current
|
19.04A
|
||
|
|
|
DC 5V output
|
USB & Type C
|
||
|
|
|
Battery working voltage
|
42V～50.4V
|
||
|
|
|
Charge/discharge current
|
50A
|
||
|
|
|
Life cycles
|
>6000(25℃)
|
||
|
|
|
Net weight
|
20±1.0kg
|
||
|
|
|
Dimension (L*W*H)
|
350*290*160mm
|
||
The MESS system combines three essential components:
1. Solar Panels:
These sleek, photovoltaic panels capture sunlight and convert it into electricity. Mounted discreetly on your balcony railing or roof, they silently work their magic throughout the day.
2. Intelligent Lithium-Ion Battery :
2. Intelligent Lithium-Ion Battery :
MESS features a state-of-the-art battery that stores excess solar energy. This means you can tap into this stored power during cloudy days or at night when the sun isn't shining.
3. Micro Inverter Solar :
3. Micro Inverter Solar :
The micro inverter ensures efficient energy conversion. It optimizes the electricity generated by the solar panels, making every ray of sunlight count.
