Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
600Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Mosslink
-
Place of Origin:
-
Guangdong, China
-
Chipset:
-
MTK7621A+MT7975D+MT7905D
-
Flash/RAM:
-
16MB Nor Flash DDR3 256MB Ram
-
Product name:
-

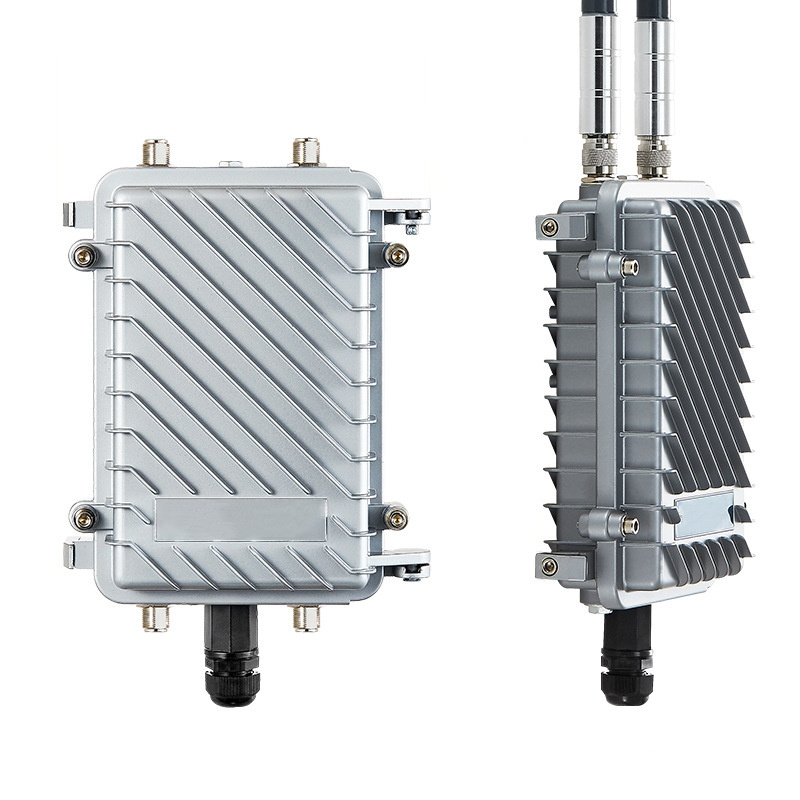

Wifi6 5G outdoor ap router
-
Antenna:
-
4-6PCS internal antennas
-
Wireless Speed:
-
2.4GHz 600Mbps + 5GHz 1200Mbps
-
Interface:
-
1WAN/LAN
-
System:
-
OpenWRT
-
SIM card slot:
-
1*Spring type SIM slot
-
module interface:
-
Built-in one M.2/Mini-PCIE interface
-
Color:
-
silvery
Quick Details
-
Max. LAN Data Rate:
-
1750Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
600Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Mosslink
-
Place of Origin:
-
Guangdong, China
-
Chipset:
-
MTK7621A+MT7975D+MT7905D
-
Flash/RAM:
-
16MB Nor Flash DDR3 256MB Ram
-
Product name:
-
Wifi6 5G outdoor ap router
-
Antenna:
-
4-6PCS internal antennas
-
Wireless Speed:
-
2.4GHz 600Mbps + 5GHz 1200Mbps
-
Interface:
-
1WAN/LAN
-
System:
-
OpenWRT
-
SIM card slot:
-
1*Spring type SIM slot
-
module interface:
-
Built-in one M.2/Mini-PCIE interface
-
Color:
-
silvery
Overview
8MP High Speed Dome PTZ IP Camera Features:
• Max. 3840*2160@15fps(50Hz/60Hz)
• Support RTSP&Onvif(17.2 Version).Compatible with many third-party NVRs and CMS
• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service • Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT, D-WDR,Mirror, Image Flip etc. Functions
• 20X 5-90mm Motor Lens
• IR range: up to 100m
• Pan:0-360°/Tilt:0-90°@45°/s/Zoom 20X • Support 256 Preset Points/Cruise functions
Dimension Figure:
5G Cellular
5GNR:n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79; LTE-FDD:
B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; LTE-TDD: B34/38/39/40/41/42/43/48; LAA: B46; WCDMA: B1/2/4/5/8/19
4G Cellular
LTE-FDD: B1/3/7/8/20/28;
LTE-TDD: B38/40/41;
WCDMA: B1/5/8; GSM: B3/8
Warm Tips:
Different Country has different carriers with different bands and frequencies. If you don’t know which one solution is suitable for your country, please feel free contact with us,we will give advice.
5GNR:n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79; LTE-FDD:
B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; LTE-TDD: B34/38/39/40/41/42/43/48; LAA: B46; WCDMA: B1/2/4/5/8/19
4G Cellular
LTE-FDD: B1/3/7/8/20/28;
LTE-TDD: B38/40/41;
WCDMA: B1/5/8; GSM: B3/8
Warm Tips:
Different Country has different carriers with different bands and frequencies. If you don’t know which one solution is suitable for your country, please feel free contact with us,we will give advice.
Products Specification
|
Processor
|
MT7621A /MIPS Dual core CPU/880MHZ
|
|
2.4G+5.8G WIFIchip
|
MT7905D+MT7975D
|
|
Memory
|
DDR3 256MB (Max.512MB)
|
|
Flash Memory
|
Nor Flash 16MB,support NAND Flash
|
|
Protocol Standards
|
IEEE802.11n/g/b/a/ac/ax,IEEE 802.3/802.3u/802.ab
|
|
Wireless Rate
|
Dual-band concurrent up to 1800Mbps
|
|
Operating band
|
2.4GHz 5.8GHz
|
|
Output Power |
11n：17dBm±1dBm 11g: 17dBm±1dBm
11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11ax: 17dBm±1dBm |
|
Receiving sensitivity |
11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm
11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 802. 1 1AX HE40 MCS11:-64dBm |
|
Antenna
|
2 *8dbi high gain omni-directional 2.4G&5.8G wifi antennas, 2-4*8dbi high gain omni-directional 4G5G antennas
|
|
Interface |
1*10/100M/1000M LAN ports, auto MDI/MDIX 1*PCI-E
1*M.2 1*SIM card |
|
LED
|
power/2.4G/5.8G/MESH/NET/5G 1/5G 2/SYS
|
|
Button
|
1 Reset button
|
|
Power adapter
|
15V1A
|
|
Color scheme
|
Silvery
|
|
Accessories and Packaging |
380*310*10cm *1PCS Power adapter 15V/1A *1PCS
Super Category 5 network cable *2PCS |
|
Working Environment |
Operating temperature: 0℃ to 40℃. Storage temperature: -40°C to 70°C.
Operating humidity: 10% to 90% RH non-condensing. Storage humidity: 5% to 90%RH non-condensing. |
|
