Quick Details
-
Model Number:
-
SGT
-
Application:
-
For chemicals,petroleum products and oils.
-
Working Temperature:
-
-40℃ to + 120℃((-72℉ to +248℉)
-
Cover:
-
Abrasion PVC
-
Feature:
-
resistant to chemical,weathering and ozone
-
Size:
-
25~300mm
-
Standard Length:
-
12/30/60m
-
Reinforcement:
-
High strength synthetic cord and helix wire.
-
Color:
-
Request
-
WP:
-
2 Bar
-
Name:
-
composite hose
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Orientflex
-
Model Number:
-
SGT
-
Application:
-
For chemicals,petroleum products and oils.
-
Working Temperature:
-
-40℃ to + 120℃((-72℉ to +248℉)
-
Cover:
-
Abrasion PVC
-
Feature:
-
resistant to chemical,weathering and ozone
-
Size:
-
25~300mm
-
Standard Length:
-
12/30/60m
-
Reinforcement:
-
High strength synthetic cord and helix wire.
-
Color:
-
Request
-
WP:
-
2 Bar
-
Name:
-
composite hose

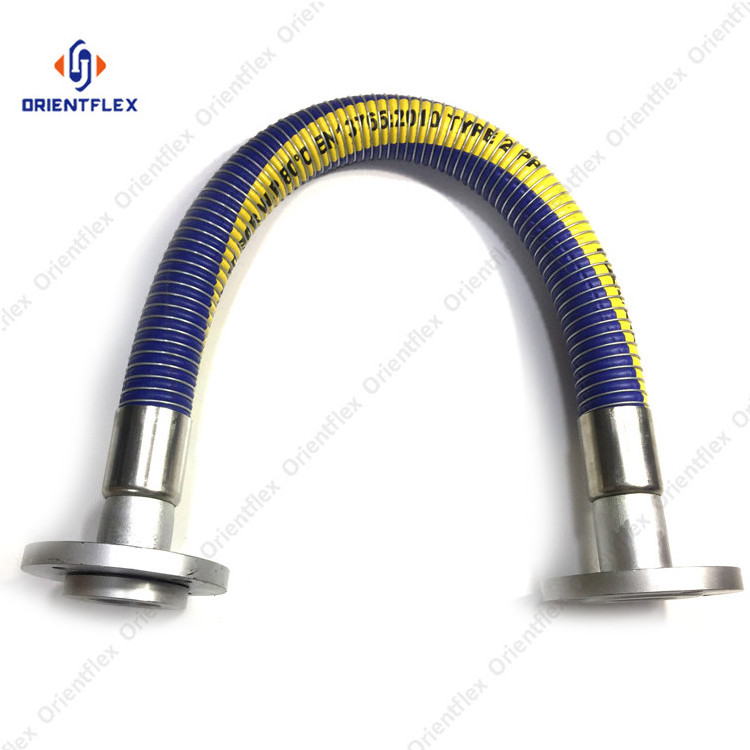

Application:
Composite hose, like other hose, provides the vital flexible connection to compensate for vibration, movement, or misalignment in a fluid transfer system.
It can be used for delivery and/or suction of fuels, oils and lubricants on tank trucks, railcars or fixed deposits.
Characteristics:
1.40% lighter than the rubber hose which has the same diameter and length.
2.Excellent flexibility Good positive and negative pressure resistance
3.Excellent corrosion resistance for chemical liquid medium
4.Outstanding flame retardant property
5.Anti-static Long-term durability
| Type |
Inner
Wire |
Outer
Wire |
Carcass | Cover | Application |
| GGE | G | G |
multiple layers of polypropylene or polyester fabrics,
films and polyester barrier layers |
PVC coated fabric | gasoline, diesel fuel, crude oil, lubricant oil, mineral spirits, water, Nitrogen, etc. |
| GGT | G | G |
multiple layers of polypropylene or polyester fabrics,
films, PTFE, fiberglass and polyester barrier layers |
PVC coated fabric | chemicals without corrosion |
| SGE | S | G |
multiple layers of polypropylene or polyester fabrics,
films and polyester barrier layers |
PVC coated fabric | gasoline, diesel fuel, crude oil, lubricant oil, mineral spirits, water, Nitrogen, etc. |
| SGT | S | G |
multiple layers of polypropylene or polyester fabrics,
films, PTFE, fiberglass and polyester barrier layers |
PVC coated fabric | corrosive and aggressive chemicals |
| SSE | S | S |
multiple layers of polypropylene or polyester fabrics,
films and polyester barrier layers |
PVC coated fabric |
gasoline, diesel fuel, crude oil, lubricant
oil, mineral spirits, sea water, fresh water, Nitrogen, etc. |
| SST | S | S |
multiple layers of polypropylene or polyester fabrics,
films, PTFE, fiberglass and polyester barrier layers |
PVC coated fabric | corrosive and aggressive chemicals |
Note: Three capital letters are used for the composite hose. The first capital letter means the inner wire; the second capital letter
means the outer wire; the third letter means the carcass.
S—stainless steel 304/304L/316/316L G—galvanized steel E—Polypropylene T— PTFE
| Inner Diameter(mm) | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 |
| Diameter Tolerances(mm) | ±4 | |||||||||
| Length(m)±5% | 20 | 16 | ||||||||
| Working Pressure(Mpa) | 0.6-2.0 | 0.6-1.6 | ||||||||
| Temperature(℃ ) | –40~+130 | |||||||||
| Electrical Resistance (Ω) | CS | ≤ 10 | ||||||||
| SS | ≤ 20 | |||||||||
| Bending Radius(mm)±100 | 220 | 220 | 300 | 300 | 350 | 400 | 575 | 800 | 1000 | 1200 |
|
Note: 1. The maximum diameter of the camlock can reach 150(6”), other specifications are according to customers’ requirements.
2. The outer diameter changes with the inner diameter. |
||||||||||
