* Adopt SMD 2835 as light source.* High CRI,standard is CRI 80.90 is available
* Keep every batches in one Bin, SDCM<1.
* 3M 300LSE adhesive tape for easy intallation.
* Widely used in light box, bar, large area lighting,led panel light
* CE,RoHS,UL, 3 years warranty.
* Can be cut by every 1 led,Any shape are available.A led strip can be folded into two sides lighting, three sides lighting, and
full coverage lighting.
- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
3-Year
-
Product Weight（kg）:
-
0.5
-
Lamp Luminous Flux(lm):
-
3200
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PERFECT
-
Model Number:
-
PSB422C
-
Product Name:
-
2835 LED Strip Sheet
-
Power:
-
35W/sheet
-
LED QTY:
-
420-led/sheet
-
Warranty:
-
3years
-
Size:
-
503.1*235*6.5mm
-
wire material:
-
copper wire
-
IP Rank:
-
IP20
-
Voltage:
-
12V/24V
-
Usage:
-
Used for Light Box
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Application:
-
Hotel
-
Lamp Body Material:
-
led+pcb
-
Warranty(Year):
-
3-Year
-
Product Weight（kg）:
-
0.5
-
Lamp Luminous Flux(lm):
-
3200
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PERFECT
-
Model Number:
-
PSB422C
-
Product Name:
-
2835 LED Strip Sheet
-
Power:
-
35W/sheet
-
LED QTY:
-
420-led/sheet
-
Warranty:
-
3years
-
Size:
-
503.1*235*6.5mm
-
wire material:
-
copper wire
-
IP Rank:
-
IP20
-
Voltage:
-
12V/24V
-
Usage:
-
Used for Light Box

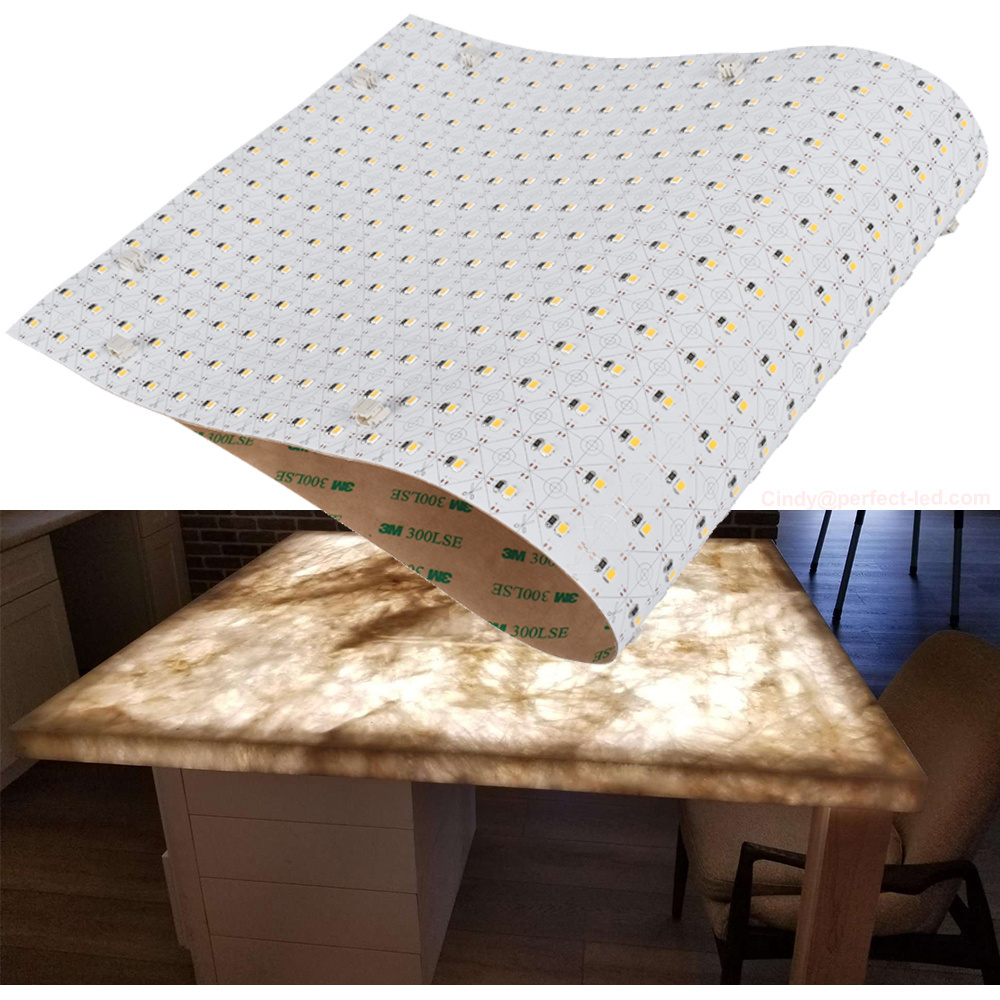

CRI80 90 3000k 4000k ultra flat illuminated LED backlit panel for LED light sheet marble stone backlighting
Flexible LED Strip Sheet
Product Details
|
IP
|
|
IP20
|
Luminous flux
|
3900Lm/sheet
|
|
|
LED Quantity
|
|
420-led/sheet
|
Power(w)
|
35W/sheet
|
|
|
Product size
|
|
503.1*235*6.5mm
|
Input voltage
|
DC 12V/24V
|
|
|
Warranty
|
|
3 Years
|
LED type
|
SMD2835
|
|
|
Working hour
|
|
30000hr
|
CRI(Ra)
|
80/90 Ra
|
|
|
Working temperture
|
|
-20℃~+45℃
|
Input current
|
1.5A/ 2.92A
|
|
|
CCT(K)
|
|
2700K/3000K/4000K/6500K/ 7500K
|
Size of section
|
16.77MM(1LED)
|
|
①Short wires （4PCS）
Sheet to sheet connection;
Length 60mm
②Long wires （4PCS）
Sheet to sheet connection;Length 150mm
③ Cable management clips（4PCS ）
12.6*9.6*6MM
④Protective bumpers（8PCS）
Φ12mm*8.3MM
⑤WAGO connectors（2PCS）
18*13*8MM
⑥Power input cable（1PCS）
Length 250MM
Companly Profile
PERFECT LED LIMITED established in 2013 , is a professional LED Strip manufacturer with strong capability in R&D,
production,marketing and customer service , we specialize in producing LED Strip for 10 years , including waterproof
LED Strip,non-waterproof LED Strip , aluminium profile and so on. By our advanced tech , high quality , super brightness ,
low light-declining& long lifetime LEDs , we have got very good response from many customers and become a famous
brand in LED field. Our products are distributed to countries worldwide , majority in Europe , U.S.A. ,Australia , and Asia ,
which gain a good reputation in global market. All of PERFECT LED products are in line with international product standards ,which has got UL , CE, ROHS certification.
production,marketing and customer service , we specialize in producing LED Strip for 10 years , including waterproof
LED Strip,non-waterproof LED Strip , aluminium profile and so on. By our advanced tech , high quality , super brightness ,
low light-declining& long lifetime LEDs , we have got very good response from many customers and become a famous
brand in LED field. Our products are distributed to countries worldwide , majority in Europe , U.S.A. ,Australia , and Asia ,
which gain a good reputation in global market. All of PERFECT LED products are in line with international product standards ,which has got UL , CE, ROHS certification.
Our Exhibition
Customer Feedback
Certifications
Payment & Shipment
Packing Detail: OEM package, Standrd package.
Inside: Electrostatic Bag, 50bags / carton
Outside: Carton Package
Size: 44*34*28 cm
Delivery Detail: 3-5 working days
Inside: Electrostatic Bag, 50bags / carton
Outside: Carton Package
Size: 44*34*28 cm
Delivery Detail: 3-5 working days
