Super Compact Nitrogen Gas Spring

FOB Reference Price: Get Latest Price

≥10 Pieces

US $59

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Wmould

Model Number:: WX

Pressure medium:: Nitrogen gas

Max. charging pressure:: 180 bar (at 20℃)

Min. Charging pressure:: 25 bar (at 20 ℃)

Operating temperature:: 0 to + 80℃

Force increase by temperature:: +/-0.3%/℃

Max. piston:: 1.6m/s

WX170-007:: In Stock

Type:: Self-Contained

Quick Details

Style:: Cylinder

Material:: Stainless steel

Usage:: Automobile;Auto;Car

Place of Origin:: Guangdong, China

Brand Name:: Wmould

Model Number:: WX

Pressure medium:: Nitrogen gas

Max. charging pressure:: 180 bar (at 20℃)

Min. Charging pressure:: 25 bar (at 20 ℃)

Operating temperature:: 0 to + 80℃

Force increase by temperature:: +/-0.3%/℃

Max. piston:: 1.6m/s

WX170-007:: In Stock

Type:: Self-Contained

Product Overview

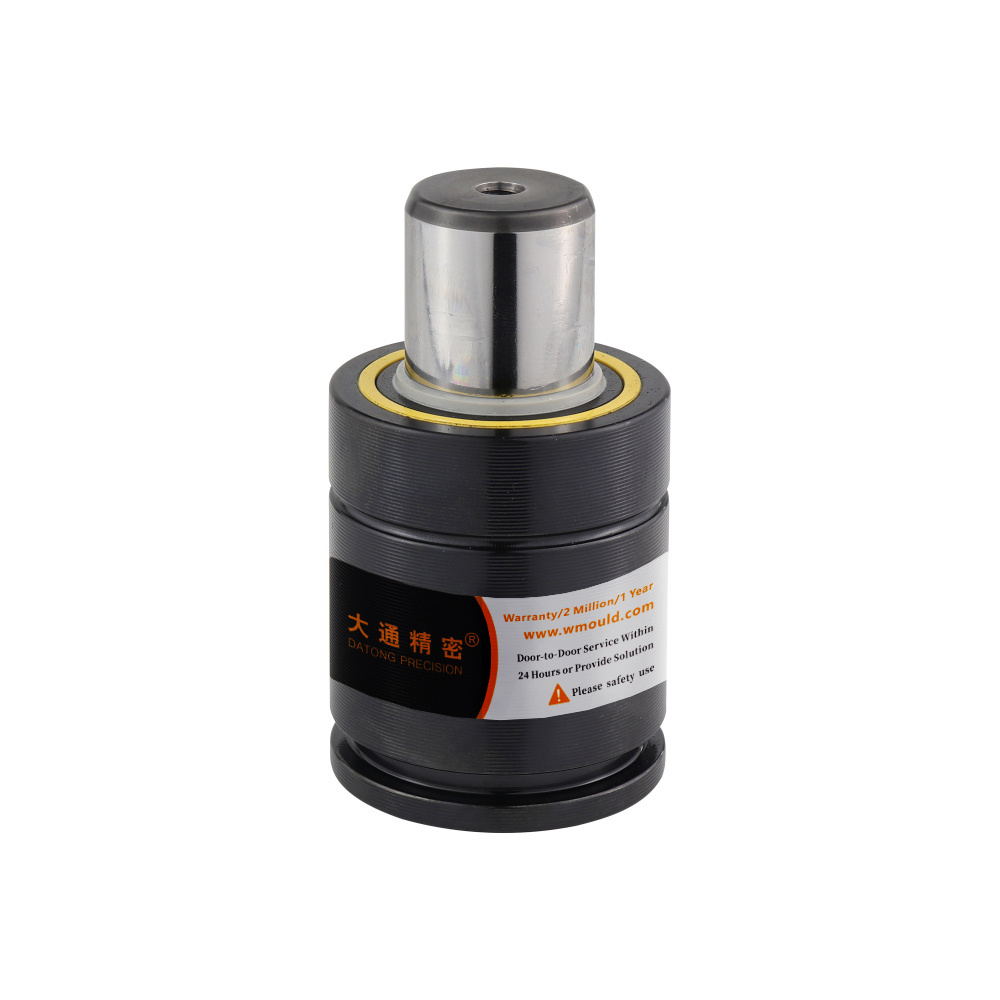

Wmould Gas Spring WX170

WX170 is a extremely compact and powerful piston rod sealed gas spring series.

It uses compressed nitrogen gas, contained in a cylinder and compressed by a piston rod, to exert a force. The benefits, compared
to typical wire die springs, are ability, safety, and longer service life.
It's widely used in fields of the Stamping Industry / Metal forming industry / Automotive / Tool & Die Industry / ect.

FEATURES AT A GLANCE

1) Super compact nitrogen gas spring

2) It’s in small size, big elastic force, long stroke, stable working

3) Make mold design and manufacturing easy

4) Unique safety and reliability features

5) WX series compact gas spring can reach extreme initial forces, ranging from 170 to 280 with stroke lengths up to 125 mm.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Pressure medium	Nitrogen gas
2	Max. charging pressure	180 bar (at 20℃)
3	Min. charging pressure	25 bar (at 20℃)
4	Operating temperature	0 to +80℃
5	Force increase by temperature	+/- 0.3%℃
6	Max. piston rod velocity	1.6m/s
7	Initial force (Kgf)	170
8	Final force	280
