Quick Details
-
Brand Name:
-
yuehongbo
-
Weight (KG):
-
4.5
-
Voltage:
-
110*220V 50HZ
-
Dimensions:
-
210*170*120
-
Certification:
-
ISO9001
-
Material:
-
aluminium alloy
Quick Details
-
Marketing Type:
-
Hot Product
-
Core Components:
-
PCB main board, transformer
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
yuehongbo
-
Weight (KG):
-
4.5
-
Voltage:
-
110*220V 50HZ
-
Dimensions:
-
210*170*120
-
Certification:
-
ISO9001
-
Material:
-
aluminium alloy
Products Description

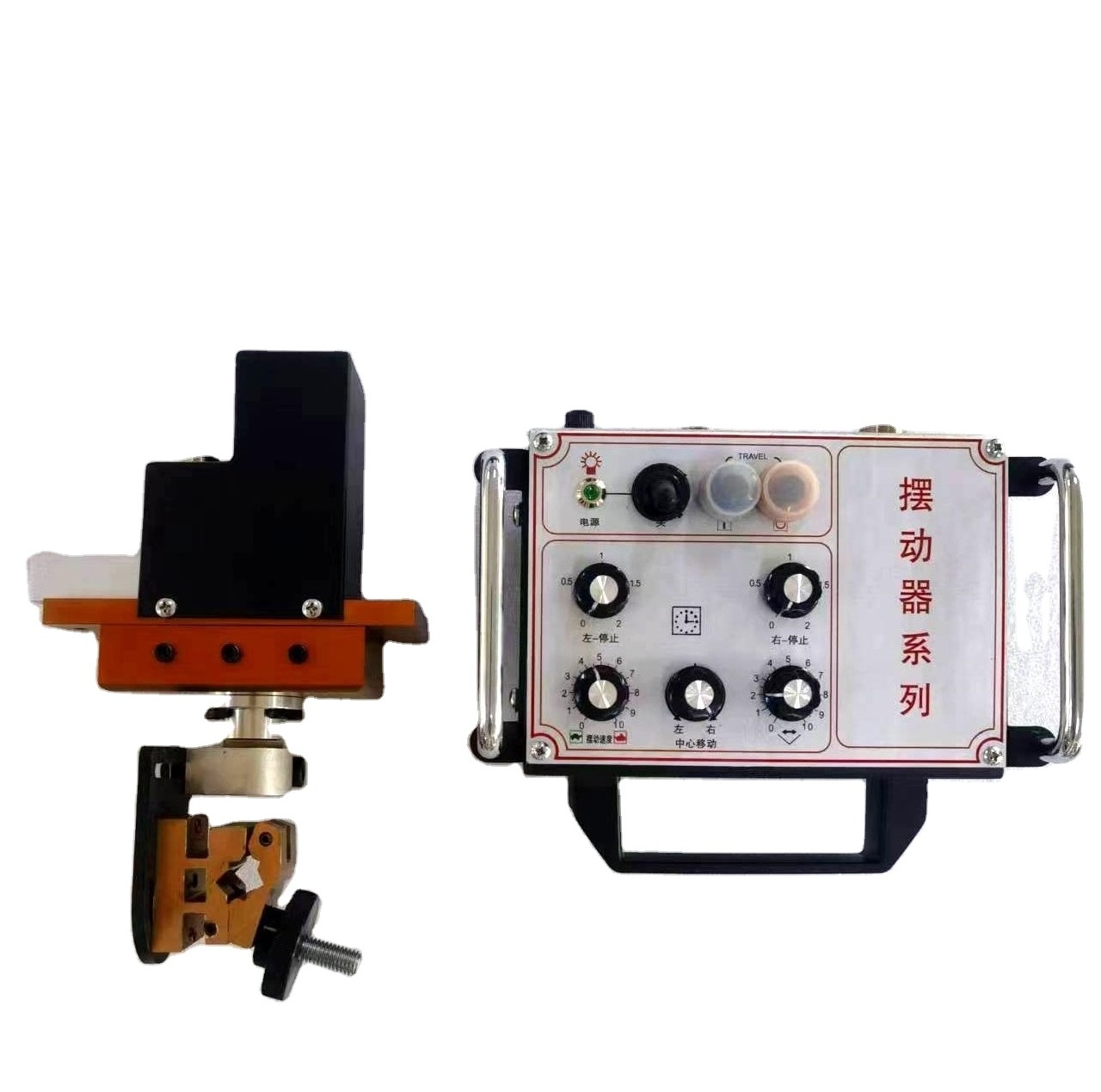

The function of the welding swinging device is to increase the forming width of a single welding seam during welding, mainly used for relatively wide welds, such as groove welds and fillet welds. Because when the weld seam is relatively wide, if the welding gun does not swing, the forming width of a single welding seam will be relatively narrow, and there will be defects such as high in the middle and low on both sides of the weld seam.
To solve this problem, it is necessary to have the welding gun oscillate regularly along the width direction of the weld seam during welding. Working principle: The welding swinging device mainly consists of two parts: a mechanical swinging mechanism and electrical control. The welding gun is fixed on the sliding plate of the welding swinging device. We set and adjust the swinging parameters on the controller, and control the swinging machine head to swing with the welding gun through the controller. Due to the variations in material, weld width, welding current, welding voltage, welding speed, and other aspects of different workpieces, in order to adapt to these changes, the welding swinging device must be able to adjust the swinging width and speed, and some may also need to adjust the dwell time at both ends. The welding swinging device developed and developed by Qingdao Yuehongbo Welding and Cutting Equipment Co., Ltd.
It uses high-quality microcontrollers to quickly and accurately control the movement of the welding gun by programmatically controlling the swinging slide plate. Due to the adjustable swing speed and amplitude at any time, it is easy to meet the requirements of different weld widths and swing speeds.
The welding swinging device can be combined with welding machines to achieve mechanized automatic welding, thereby improving the welding quality between layers and surfaces of the weld seam, reducing the occurrence of welding defects, enhancing the adaptability of automatic welding equipment to different welding thickness and welding quality requirements, improving the automation level of automatic welding equipment, greatly reducing the labor intensity of welders, ensuring welding quality and improving welding efficiency, and reducing customer purchase costs.
|
Color
|
Blue or black
|
|
Voltage
|
110*220V 50HZ
|
|
Name
|
Welding carriage
|
|
Usage
|
Welding
|
