Quick Details
-
Optical Resolution:
-
4mil
-
Scan Speed:
-
500 Scans/sec
-
Brand Name:
-
YHDAA
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
YHD-M300D Mini scanner module
-
Light source:
-
620nm Visible red light diode/CMOS
-
Trigger Mode:
-
Continuous,Auto-Induction
-
Size:
-
50*37 *22mm
-
Warranty:
-
2 Years
-
Color:
-
Black
-
Drop test:
-
1.5m fall to concrete
-
Indication:
-
Buzzer & LED
-
Decode Capabilities:
-
1D QR 2D
-
Certificate:
-
CE FCC ROHS IP54
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4 Size
-
Optical Resolution:
-
4mil
-
Scan Speed:
-
500 Scans/sec
-
Brand Name:
-
YHDAA
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
YHD-M300D Mini scanner module
-
Light source:
-
620nm Visible red light diode/CMOS
-
Trigger Mode:
-
Continuous,Auto-Induction
-
Size:
-
50*37 *22mm
-
Warranty:
-
2 Years
-
Color:
-
Black
-
Drop test:
-
1.5m fall to concrete
-
Indication:
-
Buzzer & LED
-
Decode Capabilities:
-
1D QR 2D
-
Certificate:
-
CE FCC ROHS IP54
Video Description>>>>>>YHD-M300D Barcode Scanner
Contact us for Wholesale Price

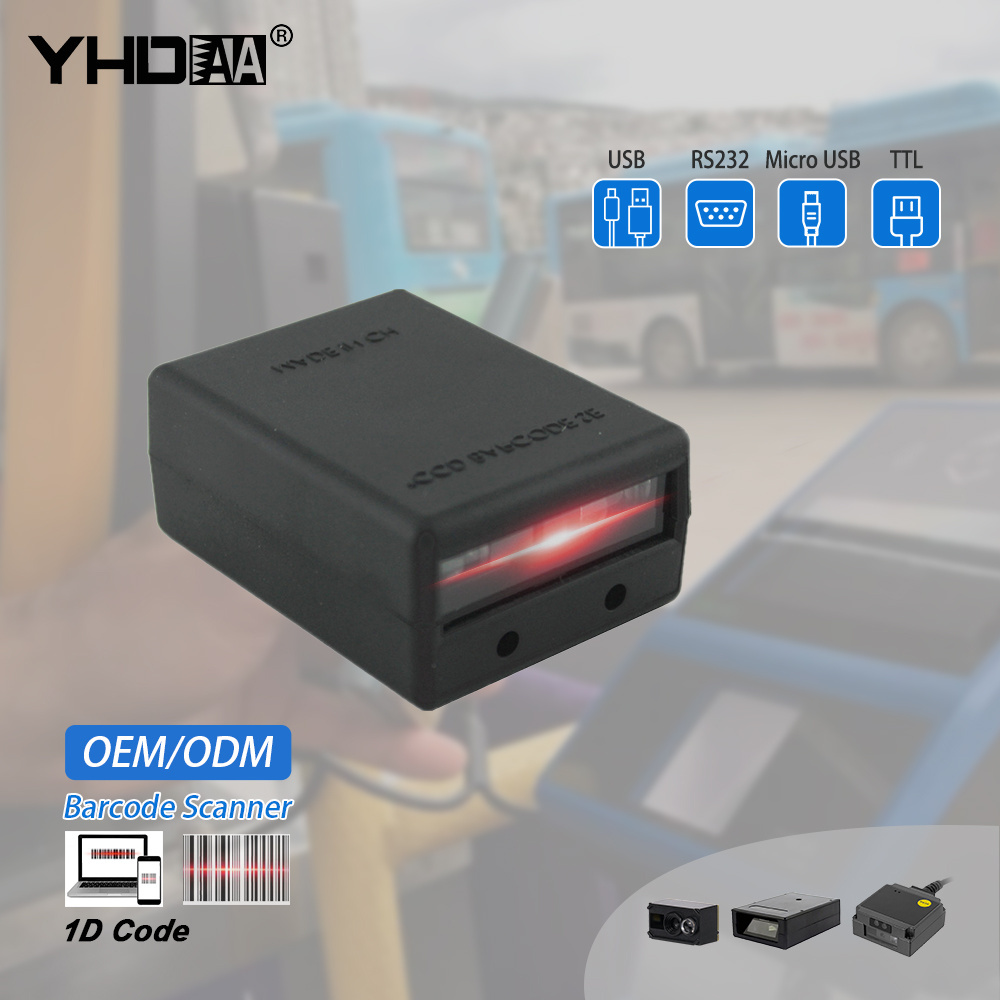

Embedded Mini Fixed Mount Barcode Scanner Module Scan Engine
1D Laser / 1D CCD / 2D
Support customization !!!
Support second development
Just tell us your requirements
Products Description
|
Model: YHD-M300D 2D Embedded Mini Barcode Scanner Module Scan Engine
|
|
|
|
|
||||
|
Optical Source
|
620nm Visible red light diode
|
Material
|
ABS+PC
|
|
||||
|
Imaging Sensor
|
640*480 CMOS
|
Relative Humidity
|
5 ~ 95%
|
|
||||
|
Indication
|
Buzzer & LED
|
Printing Contract
|
≥ 25%
|
|
||||
|
Resolution
|
4mil
|
Interface
|
RS232,USB,TTL,Micro USB
|
|
||||
|
Trigger Mode
|
Continuous,Auto-Induction
|
Decoding speed
|
500scans/sec
|
|
||||
|
Scanning angle
|
±360°，± 65°， ± 60°
|
Bit error rate
|
1/5millon
|
|
||||
|
Temperature
|
Working : -20℃-60℃
|
Temperature
|
Storage: -40℃-80℃
|
|
||||
|
Dimension
|
50×37×22 mm
|
Weight
|
22g
|
|
||||
|
Current Working
|
212mA(Max)
|
Working Voltage
|
DC3.3 V ± 10%
|
|
||||
|
Current Stand-by
|
156mA
|
Drop test
|
1.5m
|
|
||||
|
Decode Capability
|
1D Code：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5,Coda bar，MSI Plessey，RSS，etc.
2D Code: QR Code, Data Matrix，PDF417，Aztec code，Maxicode，etc.
|
Work with Windows XP/7/8/10/11, Mac, Linux.
|
Extremely small and easy to embedded into miniature equipment.
Read 1D 2D QR codes on screen and paper. |
|
||||
1D 2D Barcode Scanner Module Engine Embedded CCD Fixed Bar Code Reader Module for Kiosk RS232 USB Interface OEM ODM
Features
* Mini Size: 5 *3.7 *2.2cm/ 1.9 *1.4 *0.8in.
* Powerful decoding capacity for most 1D and 2D codes.
* Plug and play, driver-free, convenient for usage.
* Supports Continuous/Auto-Induction , 2modes for option.
* Can scan the phone, computer and other electronic screen.
* Super scanning and decoding ability, can read incomplete and fuzzy codes.
* Small size,easily to integrate into any device, especially for limit space application.
* Auto-sensing scanning saves power and time -- when the product barcode passes through the scanning window, the module wakes up to read the barcode instantly.
* Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
* Application fields: parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine,self-service store, check-in machine, bank counter machine, factory assembly line,logistics, hospital,etc.
* Can be customized according to customer demand.
