Quick Details
-
Lift Speed:
-
7m/min
-
Weight (KG):
-
3000 kg
-
Product name:
-

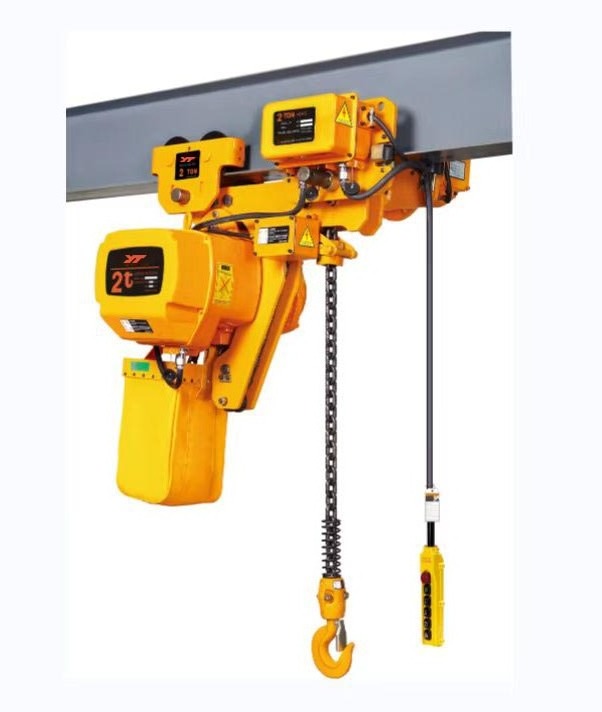

Electric Chain Hoist
-
Power supply:
-
220V-440V(Accpet Requirements)
-
Capacity:
-
0.5-10t
-
Color:
-
Customer Required
-
Application:
-
Lifting Goods
-
After-sales Service Provided:
-
Free spare parts
-
MOQ:
-
1 Set
-
OEM:
-
Accept
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yongtong
-
Lift Speed:
-
7m/min
-
Weight (KG):
-
3000 kg
-
Product name:
-
Electric Chain Hoist
-
Power supply:
-
220V-440V(Accpet Requirements)
-
Capacity:
-
0.5-10t
-
Color:
-
Customer Required
-
Application:
-
Lifting Goods
-
After-sales Service Provided:
-
Free spare parts
-
MOQ:
-
1 Set
-
OEM:
-
Accept
Yongtong HC/HM electric rope wire hoist is a kind of small and light Lifting machine. It can be assembled in such as Single grider overhead cranes, Single beam bridge cranes, Gantry cranes, Jib cranes. So, it is widely used on workshop, digging, harbor, warehouse and so on. It's the necessary equipment for improving working effciency and optimizing working conditions.
Stable and Reliable electric chain hoists nitchi mh-5.,quipment manual hoist hsz 1 ton chain block
| Hook | Rope guide |
|
1.The Hook Block is tested to 150% of full load before assembly. 2.The rope sheaves are fully guarded with protective steel casting. 3.All sheaves rotate on ball bearing the pulley is thicken and dilated.
|
1.In two halves, easy accessibility. 2.It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. 3.Thickened and dilated, so that it is not easy to be damaged. |
| Rope Drum | Wire Rope |
|
1.Grooved Hoist Drum. 2.Seamless pipe with adequate length. 3.Proper support for the rope to minimize abrasive wear. 4.Drum shaft resolves on Ball Bearings for ensuring smooth running. |
1.Comply with the exporting standards. 2.The leading rope won't slip sideways when slack. 3.the safety factor is 6. |
| Gear Box | Motor |
|
1.Special treated for high wear resistance. 2.Each Geared Shaft assembly is supported on ball or roller bearings. 3.Smooth, low-friction opearation. |
1.A taper type rotator motor with braking, made by Nanjing Special Motor Factory. 2.Best quality motor with bigger torque to be adapted to moving frequently. 3.The Maximum torque is 2.4-3 times bigger as the rated torque. |
| Mode | Lifting capacity | Working class |
Lifting Hight H(m) |
Lifting speed (m/min) |
travel speed (m/min) |
Pulley rate |
| HC04HM04 | 3t | M4 | 6 |
8(HC) 8/0.8 (HM) |
20 | 2/1 |
| 9 | ||||||
| 12 | ||||||
| 15 | ||||||
| 24 | ||||||
| 30 | ||||||
| 6.3t | M3 | 6 |
4(HC) 4/0.4 (HM) |
20 | 4/1 | |
| 9 | ||||||
| 12 | ||||||
| 15 | ||||||
| HC05HM05 | 5t | M4 | 6 |
8(HC) 8/0.8 (HM) |
20 | 2/1 |
| 4.9 | ||||||
| 12 | ||||||
| 15 | ||||||
| 24 | ||||||
| 30 | ||||||
| 10t | M3 | 6 |
4(HC) 4/0.4 (HM) |
20 | 4/1 | |
| 9 | ||||||
| 12 | ||||||
| 15 |
