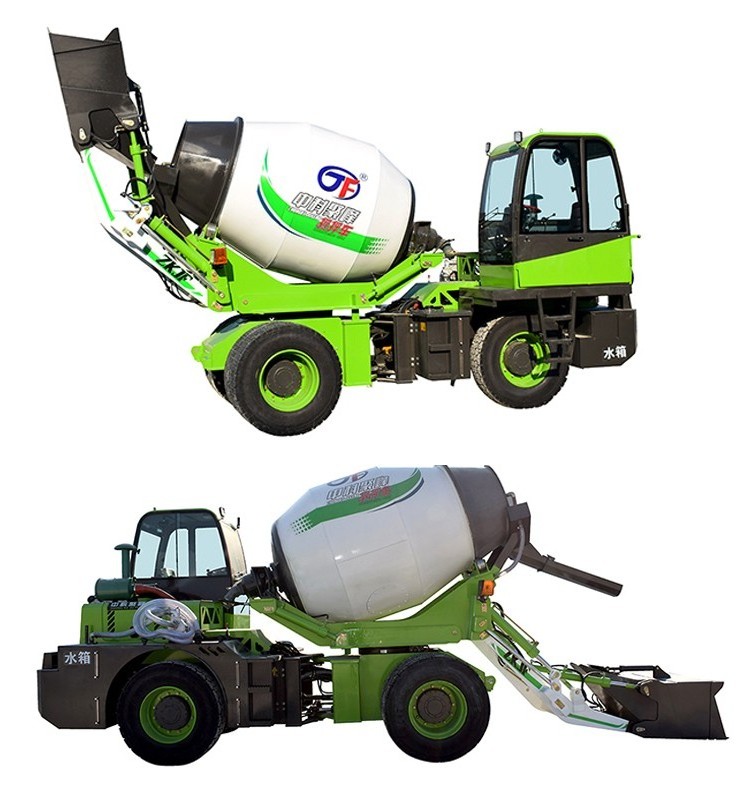

2.0cbm self-loading concrete truck mixer self loading concrete mixer

2.0cbm self-loading concrete truck mixer self loading concrete mixer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 50 kg

Dimension(L*W*H):: 9970*2500*3740

Power:: 280HP

Engine Capacity:: National V

Engine:: Weichai

Feature:: Unloading

Drum capacity:: 5.2

Application:: Construction Engineering

Brand:: Cu-mmins

Power type:: Hydraulic Motor

Color:: Customers Optional

Product name:: concrete mixer truck

Quick Details

Marketing Type:: New Product 2023

Place of Origin:: Denmark

Brand Name:: concrete mixer truck

Weight:: 50 kg

Dimension(L*W*H):: 9970*2500*3740

Power:: 280HP

Engine Capacity:: National V

Engine:: Weichai

Feature:: Unloading

Drum capacity:: 5.2

Application:: Construction Engineering

Brand:: Cu-mmins

Power type:: Hydraulic Motor

Color:: Customers Optional

Product name:: concrete mixer truck

Product name	Concrete Mixer Truck
Chassis model	ZZ1257N3841W
Overall dimension	8560x2496x3800mm
Volume	10 cbm optional
Engine	WD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.
Cabin	HW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.
Clutch	430 diaphragm spring clutch, hydraulic control air power assisted.
Transmission	HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m
Drive Axle	HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.
Front Axle	HF9, 9ton, drum brake
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO
	Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer
	Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel
	Fuel tank: 300 L capacity, with locking fuel cap
Steering	ZF8118, hydraulic steering with power assistance, LHD
Brake system	Service brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.
Tyre	12.00R20 Radial plus one spare tyre (11 units)
Mixing Tank	Effective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm
Other Specification	With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor
Place of Origin	DK
