Quick Details
-
Fuel:
-
Gasoline
-
max.spreading force:
-
8 ton
-
tip clearance:
-
6 mm
-
max.spread:
-
77 mm
-
weight:
-
10.4 kgs
-
Certification:
-
ISO9001:2000
Quick Details
-
Brand Name:
-
TLP
-
Model Number:
-
HHP-8
-
Type:
-
wedge spreader
-
Fuel:
-
Gasoline
-
max.spreading force:
-
8 ton
-
tip clearance:
-
6 mm
-
max.spread:
-
77 mm
-
weight:
-
10.4 kgs
-
Certification:
-
ISO9001:2000
|
Model |
Max.spreading force (Ton) |
Tip clearance (mm) |
Max.spread (mm) |
Type |
Oil capacity (cm³) |
G.W. (Kg) |
Packing size ( c m) |
|
HHP-8 |
8 |
6 |
77 |
Mechanical type |
- |
10.4 |
31 ×1 6 × 12 |
|
HHP-10 |
10 |
6 |
81 |
Hydraulic type |
70 |
11.5 |
53 ×1 7 ×1 1 |
|
HHP-1481 |
14 |
6 |
81 |
Hydraulic type |
70 |
10.2 |
31 ×1 6 ×1 2 |
Features
Hydraulic and Mechanical Wedge Spreaders
Friction-free, smooth and parallel wedge movement
with unique interlock wedge design.
Eliminates flange damage and risk of spreading arm failure.
Hydraulic and Mechanical Wedge Spreaders

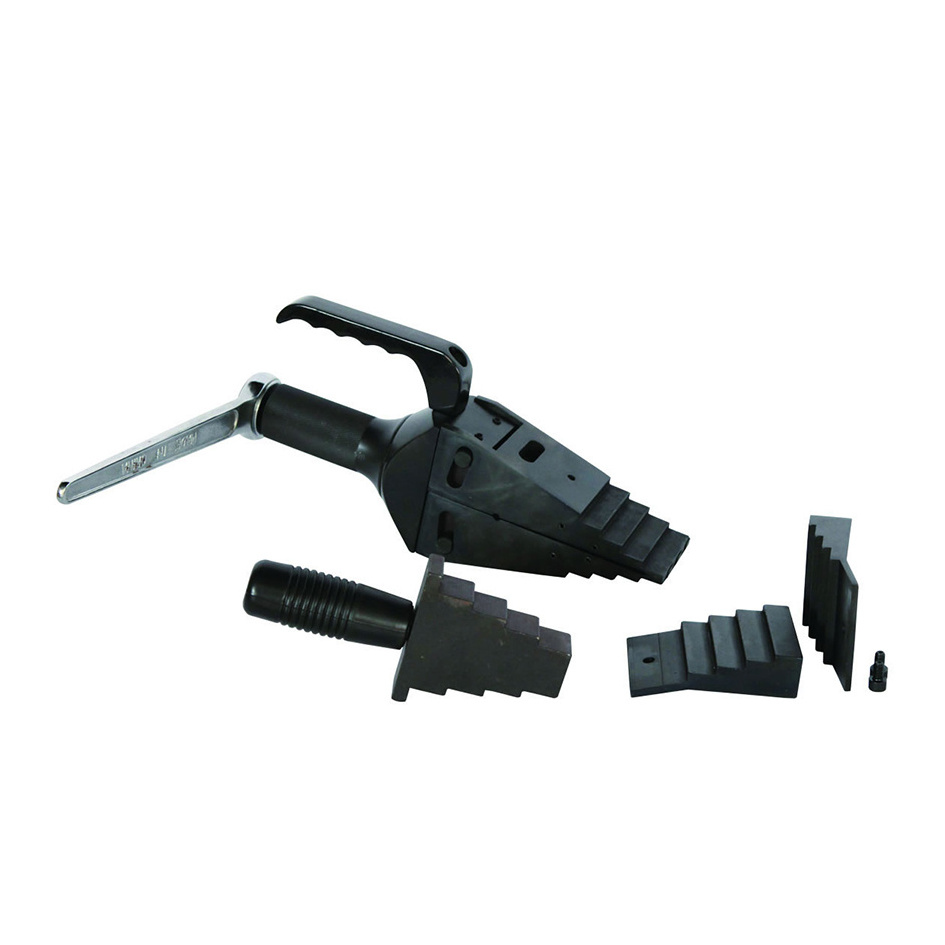

Hydraulic Wedge Spreader HHP-1481
Stepped spreader arm design - each step can spread under full load
Requires very small access gap of only 6 mm
Includes safety block and stepped blocks
Self-contained Hydraulic Wedge Spreader HHP-10
1. Manual hydraulic operation
2. Use stepped blocks to increase wedge opening up to 81 mm
3. Safe and reliable hydraulic system
Hydraulic Wedge Spreader HHP-1481
1. Operated by hydraulic pump with rated pressure of 700 bar
2. Use stepped blocks to increase wedge opening up to 81 mm
3. Supplied with 3/8NPT male coupler and dust cap off on safety
