12V-48V 50-600mm 6000N Limit Switch Hall Sensor IP65Waterproof Electric Actuator

12V-48V 50-600mm 6000N Limit Switch Hall Sensor IP65Waterproof Electric Actuator

FOB Reference Price: Get Latest Price

≥2 Pieces

US $21

≥100 Pieces

US $20

≥200 Pieces

US $18

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 year

Place of Origin:: Jiangsu, China

Brand Name:: DYX

Model Number:: YMD 501B

Torque:: 6000N

Quick Details

Speed(RPM):: 2800rpm

Continuous Current(A):: 8A full load current

Efficiency:: 100W

Warranty:: 1 year

Place of Origin:: Jiangsu, China

Brand Name:: DYX

Model Number:: YMD 501B

Torque:: 6000N

Product Overview

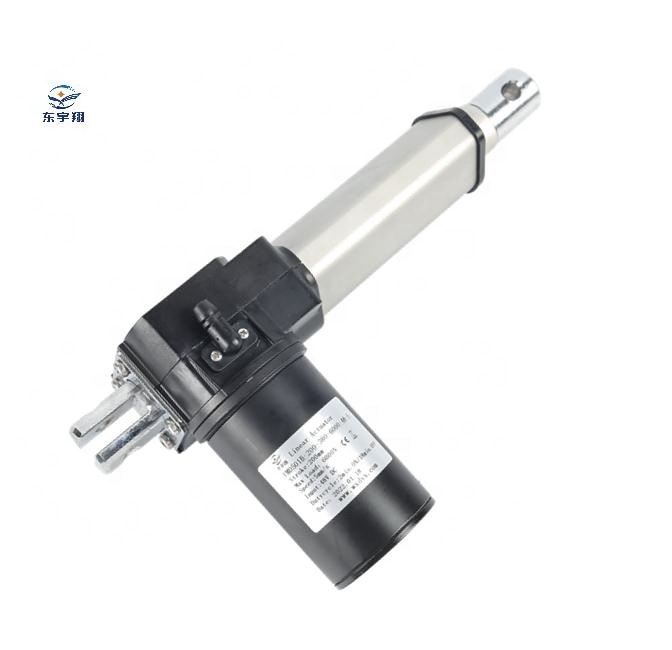

YMD 501B Linear Actuator

YMD 501B is a compact linear actuator that is suitable for industrial, vehicle and furniture projects. It has 6,000N (600kg) maximum load capacity and 600mm (0.6 meter) maximum stroke length. YMD 501B is waterproof and is p owered by a 12V/24V/36V/48V DC electric motor , which ensures stable and durable performance under temperature from -40 to 65 °C. YMD 501B has limit switch that automatically shuts down the linear actuator when the rod is completely extracted or extended. C ustomers can also choose hall sensors to monitor rod travel position of YMD 501B linear actuator.

Large Load Capacity

Customizable Stroke Length

IP65 Protection Level

Signal FeedBack Option Available

Easy To Install

Long Lifetime

Stable And Durable
Low Maintenance

Product Specification

Maximum Load	6,000 N (600 kg)	Input Voltage	12V/24V/36V/48V DC
Maximum Stroke	600 mm (0.6 meter)	Free Load Current	Less than 2A
Protection Level	IP65	Full Load Current	Less than 8A
Rod Travel Speed	3-17mm/s	Screw Type	Lead Screw

Work Temperature	-40 to 65 °C	Inner Tube Material	Aluminium Alloy
Position Feedback	Hall Sensor	Outer Tube Material	Aluminium Alloy
Limit Switch	Build-in	Overload Self-Locking	Yes
Duty Cycle	20%	Overload Protection	Clutch

Company Introduction

Wuxi East Yu Xiang Science and Technology Co., Ltd is a Chinese company that produces electrical linear actuators and related control systems. Through continuous innovation and improvement, our company developed YMD linear actuators which had been widely applied in many industrial areas such as vehicle, agricultural machinery, medical equipment and furniture.

Our company is always dedicated to providing powerful products that meet customers' requirements. Different YMD models usually have different stroke, load and rod travel speed. Each YMD model is versatile for different applications by adding optional customization. Customers can choose specific DC Input, position feedback signal, multiple mounting ends and synchronization controller as per their demands.

Our company is cooperating with 132 enterprises among 15 countries, and our products are welcomed by these customers for excellent stability and durability. Each linear actuator for sale is produced by experienced workers and has passed water-proof, dust-proof, signal and temperature tests performed by senior test engineers. All qualified products are carefully packed in carton boxes to ensure safety and corrosion resistance during transportation and storage. Once a YMD linear actuator is correctly mounted and used, it performs well at 20% duty cycle under temperature from -40 to 65 Celsius Degree.

Our company achieved ISO9001 certificate and all YMD models achieved CE certificate, as our company culture says: consistent quality, consistent mentality. If you are looking for a linear actuator supplier, then we are your reliable choice.

SIMILAR PRODUCTS

FAQ

Q: What is the lead time?
A: Normally takes about 10 days . For bulk or urgent orders, please contact us so we can set a precise lead time.

Q: How do I know the product's quality and the packings meet my requirements?
A: Each product will be tested before packaging. We can send you photos of the goods to confirm your preferred packings.

Q: How do we make the payment?
A: We usually accept payment by T/T, west union, and other payment ways. We will confirm this when we conclude the order.

Q.Why choose YMD electrical linear actuator?
A: YMD linear actuator is designed in ripe technology and is manufactured by experienced workers. You will find YMD linear actuators:
* Easy to install, easy to disassemble, easy to transport;
* High quality, high efficiency, high performance;
* Low noise, low cost, low maintenance.

Q: My order quantity is small, can you provide it?
A: No matter how many products you want, we will serve you with our best products and services.

Q: Loading port?
A: Shanghai. Of course you can tell us another port you prefer.

Q: Do you get the relevant certifications?
A: Yes, we have got the certifications of CE, ISO9001:2015 so far.

Q: How can I get the quotation?
A: Contact us on made-in-china.com and tell us details of your desired products: Stroke length, Input voltage, Load capacity, Purchase Quantity, etc.
