1) 22GPM gallon hydraulic oil reservoir, powered by 18HP petrol engine
2) Adopting advanced famous brand components and parts ,engine parts and operation parts.
3) able to cut logs that are up to 490mm in length and up to 500mm in diameter approximately
4) Running in a high automatization and intellectualization,no pollution
5) 225*52*57cm wood individual package per unit which makes it could be loaded 44pcs per 20ft container.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
225*52*57
-
Weight:
-
252 KG
-
Cycle Time:
-
7seconds
-
Splitting Force:
-
35Ton
-
Max Splitting Force:
-
490mm
-
Max splitting diameter:
-
500mm
-
Engine type:
-
18HP Petrol engine
-
MPA(PSI):
-
22Mpa
-
Tires:
-
16''4.8-8Pneumatic
-
Pump capacity:
-
22GPM
-
Wedge:
-
Welded cross
-
Loading Q'ty:
-
44pcs/20ft
Quick Details
-
Use:
-
Split Wood
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SPLITKING
-
Dimension(L*W*H):
-
225*52*57
-
Weight:
-
252 KG
-
Cycle Time:
-
7seconds
-
Splitting Force:
-
35Ton
-
Max Splitting Force:
-
490mm
-
Max splitting diameter:
-
500mm
-
Engine type:
-
18HP Petrol engine
-
MPA(PSI):
-
22Mpa
-
Tires:
-
16''4.8-8Pneumatic
-
Pump capacity:
-
22GPM
-
Wedge:
-
Welded cross
-
Loading Q'ty:
-
44pcs/20ft
Product Description

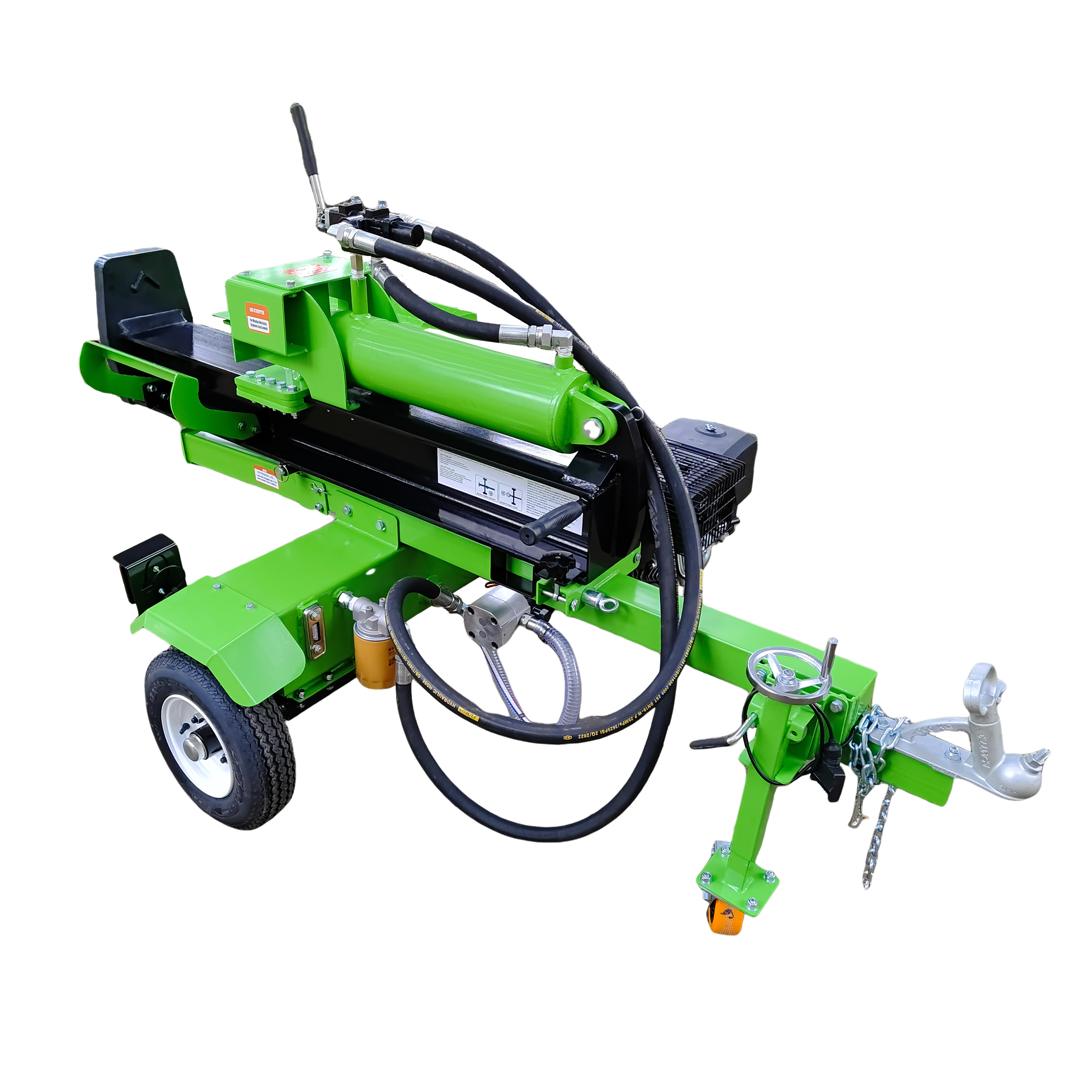

LS35T-490MM
Portable and nice design
with 16"4.8-8 tube wheel, the whole piece stable and portable
high quality finishing
all angle fine finishing with high quality
Product Paramenters
|
Item No.
|
Power
|
Force
|
Pump Capacity
|
MPA
(PSI)
|
Wheel
|
Split Length
|
Split Dia
|
Cycle time
|
N/G weight
|
|
LS35T-490MM
|
18HP Petrol Engine
|
35Ton
|
22GPM
|
22Mpa
|
16*4.8-8"
|
490mm
|
500mm
|
7seconds
|
252/292KGS
|
