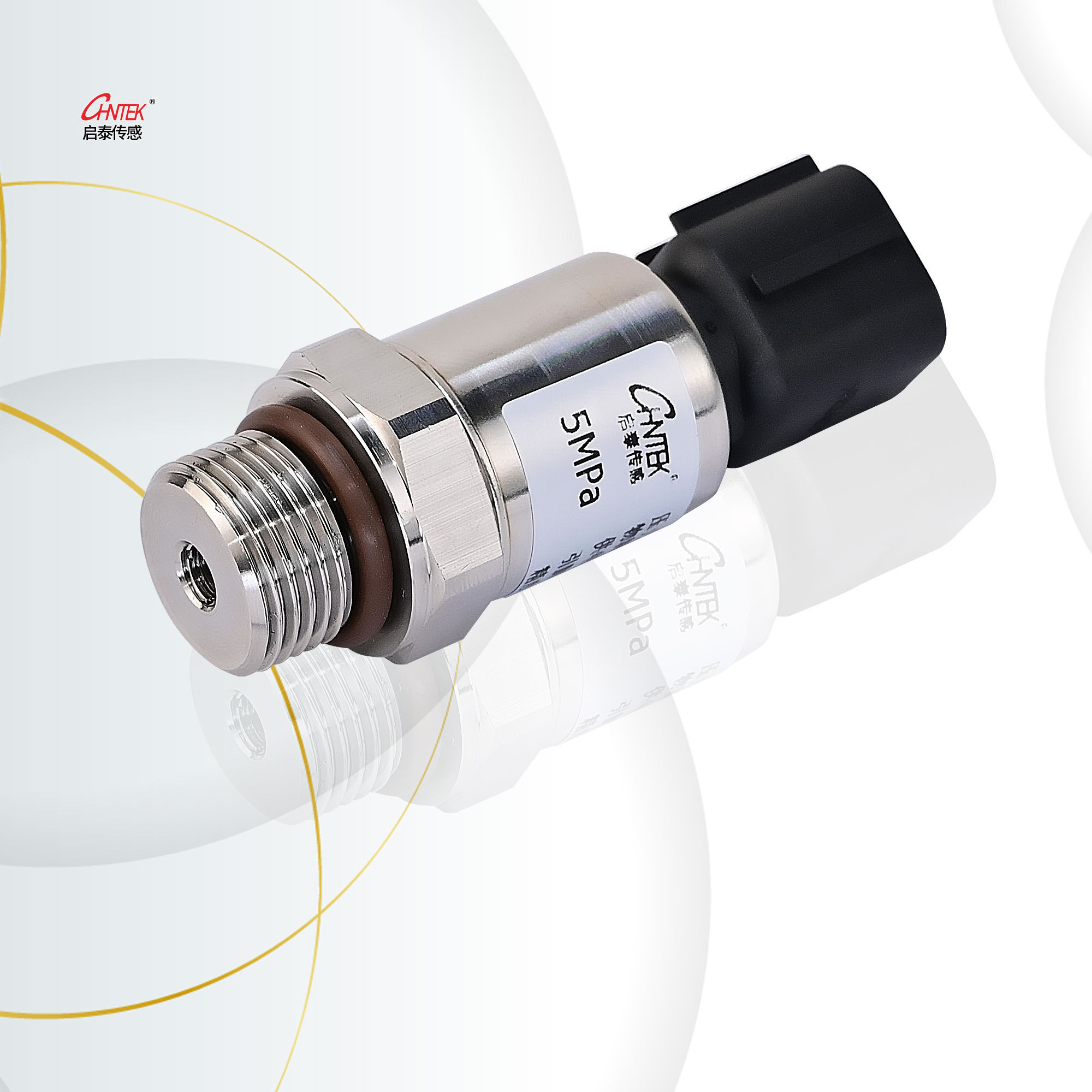

Quick Details
-
Model Number:
-
QTQ302-J
-
Pressure Range:
-
25~2500bar
-
Measuring medium:
-
Gases, liquids compatible with 17-4PH stainless steel
-
Sensor technology:
-
Sputtered Thin Film Sensor
-
Accuracy:
-
±0.5%F.S
-
Output:
-
4-20mA, 0.5-4.5V, 0.5-4.5V(ratiometric), 0-10V
-
Power supply:
-
8-32VDC/5VDC
-
Overload:
-
200%F.S/300%F.S
-
Burst Pressure:
-
4000%/1000% and ≤400MPa
-
Long-term Stabilty:
-
±0.2%F.S/year
-
Work temperature:
-
-40~+105℃ or by customized
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CHNTEK
-
Model Number:
-
QTQ302-J
-
Pressure Range:
-
25~2500bar
-
Measuring medium:
-
Gases, liquids compatible with 17-4PH stainless steel
-
Sensor technology:
-
Sputtered Thin Film Sensor
-
Accuracy:
-
±0.5%F.S
-
Output:
-
4-20mA, 0.5-4.5V, 0.5-4.5V(ratiometric), 0-10V
-
Power supply:
-
8-32VDC/5VDC
-
Overload:
-
200%F.S/300%F.S
-
Burst Pressure:
-
4000%/1000% and ≤400MPa
-
Long-term Stabilty:
-
±0.2%F.S/year
-
Work temperature:
-
-40~+105℃ or by customized
Product Description
Product Paramenters
|
Parameter
|
QTQ 300 Series
|
|
|
|
|||
|
Measuring range(MPa)
|
1-10
|
16-40
|
60
|
70-250
|
|||
|
Burst pressure
|
300%
|
300%
|
250%
|
200%
|
|||
|
Overload pressure
|
4000%
|
1000% and ≤400MPa
|
≤400 MPa
|
|
|||
|
Accuracy
|
±0.5%F.S
|
|
|
|
|||
|
Long-term stability
|
±0.2%F.S/year
|
|
|
|
|||
|
Output
|
4-20mA, 0.5-4.5V, 0.5-4.5V(ratiometric), 0-10V，0-5V
|
|
|
|
|||
|
Power Supply
|
8-32VDC
|
|
|
|
|||
|
Zero point temperature drift
|
±0.1%F.S/10℃
|
|
|
|
|||
|
Full range temperature drift
|
±0.3%F.S/10℃
|
|
|
|
|||
|
Response time
|
≤1ms
|
|
|
|
|||
|
Durability
|
10^8pressure circles
|
|
|
|
|||
|
lnsulation resistance
|
≥1000MQ/500VCD
|
|
|
|
|||
|
Sensitive component material
|
17-4PH
|
|
|
|
|||
|
lP rating
|
IP67
|
|
|
|
|||
|
Medium temperature range
|
-40~+80℃(0.25%F.S), -40~+105℃(0.5%F.S,1%F.S)
|
|
|
|
|||
|
Ambient temperature range
|
-40~+105℃
|
|
|
|
|||
|
Storage temperature range
|
-40~+105℃
|
|
|
|
|||
|
Random vibration
|
20g,GB/T2423.56-2006
|
|
|
|
|||
|
Sinusoidal vibration
|
14.1g,GB/T2423.10-2008
|
|
|
|
|||
|
Shock
|
50g,11ms,GB/T2423.5-1995
|
|
|
|
|||
|
EMC-electromagnetic field radiation immunity
|
GB/T 17626.3-2016
|
|
|
|
|||
|
EMC-electrostatic discharge immunity
|
GB/T 17626.2-2018
|
|
|
|
|||
|
Dimensions
|
Outer diameter Φ21±0.1 mm, height 60.7±2mm
|
|
|
|
|||
|
Electrical Connection
|
SUMITOMO 6189-0131
|
|
|
|
|||
|
Pressure port
|
G2=G1/4-19
M3=M12*1.5 G1=G1/8 G5=G1/4-19A M6=M20*1.5 M1=M8*1.25 G4=G1/2 M4=M14*1.5 N2=NPT1/4 G3=G3/8 |
|
|
|
|||
