Quick Details
-
Brand Name:
-
JJCC;OEM
-
Engine Capacity:
-
< 4L
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Online support
-
Size:
-
3015*1440*1450
-
Gross Vehicle Weight:
-
3450 kg
-
Towing tractor PART:
-
Japanese
-
Engine:
-
MITSUBISHI
-
Transmission:
-
EXEDY KT
-
Product name:
-

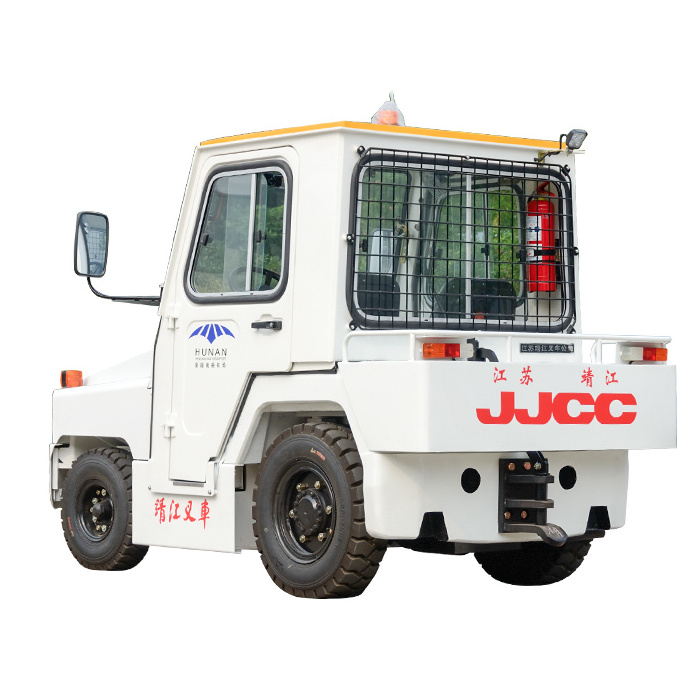

diesel tractor engine baggage tractor towing tractor for airport
-
Name:
-
diesel towing tractor
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
Euro 3
-
Brand Name:
-
JJCC;OEM
-
Engine Capacity:
-
< 4L
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Online support
-
Size:
-
3015*1440*1450
-
Gross Vehicle Weight:
-
3450 kg
-
Towing tractor PART:
-
Japanese
-
Engine:
-
MITSUBISHI
-
Transmission:
-
EXEDY KT
-
Product name:
-
diesel tractor engine baggage tractor towing tractor for airport
-
Name:
-
diesel towing tractor
New high –power engine ,JAPAN MITSUBISHI S4S engine
New integrated power steering reduces steering effort and enhances maneuverability.It also allows the operator to make sharper and quicker turns easier.
Standard automatic transmission with two-speed torque converter and an additional torque converter oil cooler.
Large open step
Easy-to- Read instrument panel from USA CURTIS ,all meters and warning lamps are clustered together for at –a –glance recognition of vehicle status,which containes oil pressure warning,brake fluid low level warning,hour meter,water temperature gauge with warning light,fuel gauge with warning light etc
E-type two-stage towing bar easy to operate beside seat of drivers.
Front and rear bumper can be equipped (optional)
Japan KT21600000 automatic transmission converts the engine power ifficiently and provides smooth acceleration for the tractor. Transmission oil coller and forward reverse interlock further guarantee reliablity and durability of the transmission
| Manufacturer | JJCC/ NISSAN technology | |||||
| Model code | QCD20-KM II | QCD25-KM II | QCD30-KM II | |||
| Max.drawbar pull | KN | 20 | 25 | 30 | ||
| Max.towed weight (at dry even concrete surface) | Kg | 25000 | 32000 | 38000 | ||
| Traveling speed | Forward | Km/h | 25 | |||
| Backward | Km/h | 22 | ||||
| Max.gradeability | No load | % | 38 | 35 | ||
| Dimensions | Overall length (with coupler) | mm | 3015 | |||
| Overall width | mm | 1440 | ||||
| Overall height(without canopy) | mm | 1450 | ||||
| Wheelbase | mm | 1620 | ||||
| Front overhang | mm | 635 | ||||
| Rear overhang (with coupler) | mm | 760 | ||||
| Front tread | mm | 1250 | ||||
| Rear tread | mm | 1200 | ||||
| Min.turning radius | Outer | mm | 3000 | |||
| Floor height | mm | 425 | ||||
| Seat height | mm | 980 | ||||
| Center height coupler | mm | 305/405 | ||||
| Coupler length | mm | 280 | ||||
| Min.groud clearance | mm | 165 | ||||
| tires | Tire size | Front | 6.50-10-10PR | |||
| Rear | 7.00-15-12PR | 7.50-15-12PR | ||||
| Weight | Truck weight (No load) | Kg | 3450 | 3900 | 4400 | |
| Weight distribution | Front axle | Kg | 1160 | 1120 | 1080 | |
| Rear axle | Kg | 2290 | 2780 | 3320 | ||
| Engine | Model | Japan MITSUBISHI S4S | ||||
| Displacement | cm3 | 3331 | ||||
| Rated output | kw/rpm | 47/2500 | ||||
| Rated torque | N.m/rpm | 200/1600 | ||||
| TRANSMISSION | Model | JAPAN EXEDY KT21600000 | ||||
| Type | AUTOMATIC with torque converter | |||||
| Gear shift | 2 forward/1reverse | |||||
| GEAR RATIO | Forward I: 4.894 | |||||
| Forward II: 2.462 | ||||||
| Reverse:2.696 | ||||||
1.What's the Certificate do you have?
JJCC workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate
2. Can you customize and design as the clients' requirement?
JJCC will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first
4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery or LC at sight, or 70%balance upon BL COPY
6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.
How to choose the most suitable JJCC forklift trucks?
1. Power Type
2. Load Capacity
3. Mast Size and Height
4. Side Shifter, tyre and etc.
