- Product Details
- {{item.text}}
Quick Details
-
Return Force (kN):
-
300 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Rockaway
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
900mm*1500mm*2400mm
-
Weight (T):
-
6 T
-
Model Number:
-
Y41-100T, Y41-100T
-
Motor Power (kw):
-
7.5 kw
-
Product name:
-
Single Column Hydraulic Press
-
Material:
-
Steel Material
-
Function:
-
Punching Ang Press
-
Safety protection:
-
Photoelectric protection
-
Application:
-
Auto Parts
-
Advantage:
-
High Efficiceny
-
Certification:
-
CE/ISO
-
After Warranty Service:
-
Spare parts
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
400
-
Ejector Force (kN):
-
1000
-
Return Force (kN):
-
300 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Rockaway
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
900mm*1500mm*2400mm
-
Weight (T):
-
6 T
-
Model Number:
-
Y41-100T, Y41-100T
-
Motor Power (kw):
-
7.5 kw
-
Product name:
-
Single Column Hydraulic Press
-
Material:
-
Steel Material
-
Function:
-
Punching Ang Press
-
Safety protection:
-
Photoelectric protection
-
Application:
-
Auto Parts
-
Advantage:
-
High Efficiceny
-
Certification:
-
CE/ISO
-
After Warranty Service:
-
Spare parts
Products Description
Y41-100 tons Heavy Duty Type C frame hardware hydraulic plate manufacturing hydraulic press

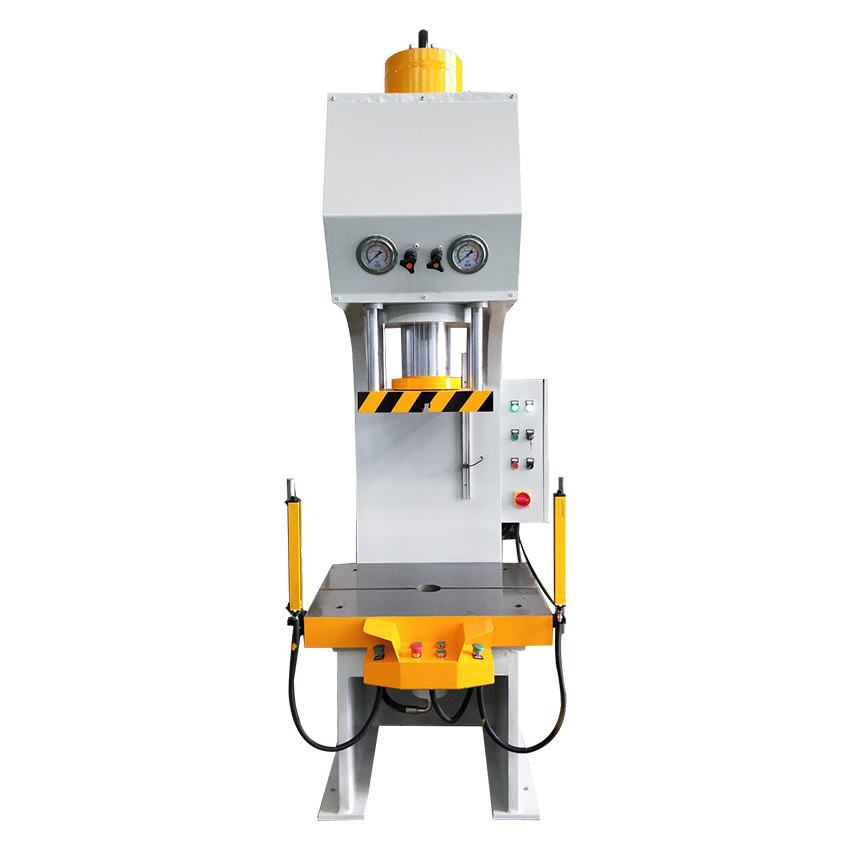

Y41 Single Column Hydraulic Press:
This series of machine tools can be used for shafts and other similar calibration processes,for pressing and assembling of shafts , as well as for stretching,forming and blanking of simple formats.This series of machine tools are operated by pedal linkage,which is simple to operate.Hydraulic press has been equipped with elector-hydraulic reversing valve or cartridge valve,which bears the characteristics of compact,safe,reliable,sensitive in action,fast speed,low energy consumption and low noise.
PRODUCT SPECIFICATIONS
|
Parameter
|
|
Unit
|
Y41-100
|
|
|
Nominal Force
|
|
kN
|
1000
|
|
|
Working table height
|
|
mm
|
800
|
|
|
Max. hydraulic pressure
|
|
MPa
|
25
|
|
|
Throat depth
|
|
mm
|
400
|
|
|
Stroke of slide
|
|
mm
|
600
|
|
|
Max. Open height
|
|
mm
|
800
|
|
|
Speed of slide
|
Empty descending
|
mm/s
|
100
|
|
|
|
Pressing
|
mm/s
|
15-20
|
|
|
|
Return
|
mm/s
|
100
|
|
