Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Type:
-
scaffold steel props
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
huaruitai
-
Model Number:
-
HRT020-001
-
Product name:
-
scaffold steel prop
-
Surface treatment:
-
galvanized, painting, powder coating
-
Package:
-
Bundle Loaded
-
Outer tubes:
-
48mm/56mm/60mm
-
inner tubes:
-
40mm 48mm
-
Length:
-
1.6m-6m
-
Type of Scaffolding:
-
light duty and heavy duty
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Type:
-
scaffold steel props
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
huaruitai
-
Model Number:
-
HRT020-001
-
Product name:
-
scaffold steel prop
-
Surface treatment:
-
galvanized, painting, powder coating
-
Package:
-
Bundle Loaded
-
Outer tubes:
-
48mm/56mm/60mm
-
inner tubes:
-
40mm 48mm
-
Length:
-
1.6m-6m
-
Type of Scaffolding:
-
light duty and heavy duty
PRODUCT SPECIFICATIONS
|
HEAVY DUTY PROP
|
|
|
|
|||
|
MIN Length
|
MAX Length
|
INTERNAL TUBE
|
EXTERNAL TUBE
|
|||
|
1.8M
|
3.2M
|
48MMX2.0MM
|
60MMX2.0MM
|
|||
|
2.1M
|
3.4M
|
48MMX2.0MM
|
60MMX2.0MM
|
|||
|
2.2M
|
4.0M
|
48MMX2.0MM
|
60MMX2.0MM
|
|||
|
2.4M
|
3.9M
|
48MMX2.0MM
|
60MMX2.0MM
|
|||
|
3.5M
|
4.0M
|
48MMX2.0MM
|
60MMX2.0MM
|
|||
|
3.0M
|
5.0M
|
48MMX3.5MM
|
60MMX3.5MM
|
|||
|
LIGHT DUTY PROP
|
|
|
|
|||
|
MIN Length
|
MAX Length
|
INTERNAL TUBE
|
EXTERNAL TUBE
|
|||
|
1.6M
|
3.0M
|
40MMX2.0MM
|
48MMX2.0MM
|
|||
|
1.6M
|
3.0M
|
48MMX2.0MM
|
56MMX2.0MM
|
|||
|
1.8M
|
3.5M
|
40MMX2.0MM
|
48MMX2.0MM
|
|||
|
1.8M
|
3.5M
|
48MMX2.0MM
|
56MMX2.0MM
|
|||
|
2.0M
|
3.5M
|
40MMX2.0MM
|
48MMX2.0MM
|
|||
|
2.0M
|
3.5M
|
48MMX3.5MM
|
56MMX2.0MM
|
|||

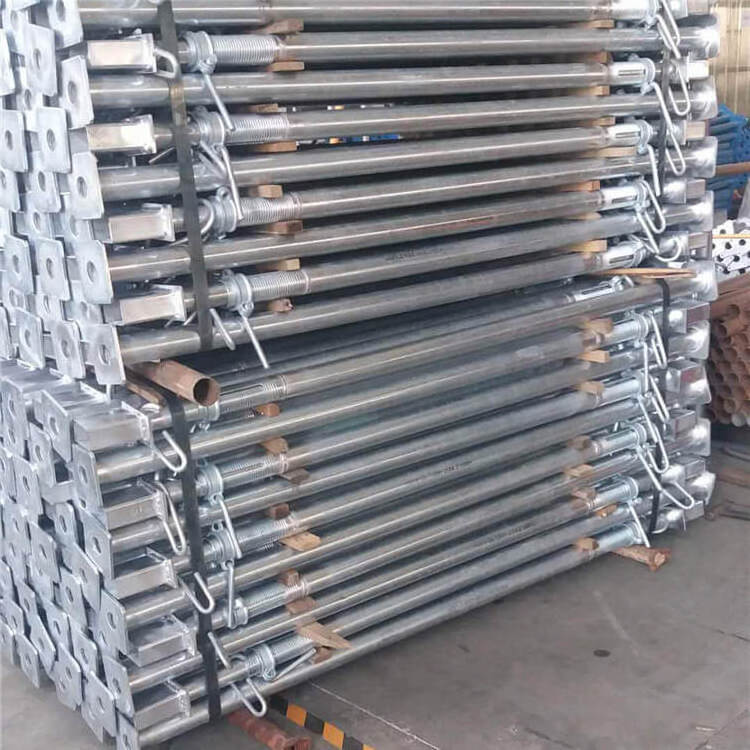

A complete set of adjustable jack post shoring prop consists of an inner tube, an outer tube, a prop nut, a Jack and a Base plate.
|
Name
|
Adjustable Scaffolding Acro Steel Prop
|
|
Size
|
out diameter:48mm 56mm 60mm, inner diameter:40mm,48mm. thickness:1.4-3.5mm.
|
|
Length
|
1.6m - 6m CUSTOMIZED
|
|
Surface
|
color powder coating (red,blue,orange or customize), hot dip galvanized, painted
|
|
Top/Base Plate
|
Flower / Square
|
|
Pin Style
|
G Pin / Line Pin / Wire rod Pin
|
|
Nut and thread
|
Cup type or G-lock.
|
|
Loading quantity
|
1500-2000pcs/Container.
|
|
Materials
|
Q235B Steel Nut:QT450-10 or 20#.
|
|
Model
|
italy,Spanish,european or customized
|
