Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Product name:
-
Polyurethane Wheels
-
Application:
-
Hand Trolley
-
Color:
-
Red
-
Size:
-
3/4/5 Inch
-
Bearing:
-
Bouble bearing
-
Wheel material:
-
PU Tyre+PP Core
-
Load Capacity:
-
150kg
-
Wheel Diameter:
-
75/100/125mm
Quick Details
-
Material:
-
POLYURETHANE, Other, PVC
-
Type:
-
Plate Casters, Stem Casters, Bolt-Hole Casters, Side-Mount Casters
-
Model Number:
-
JP-PR031101
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Product name:
-
Polyurethane Wheels
-
Application:
-
Hand Trolley
-
Color:
-
Red
-
Size:
-
3/4/5 Inch
-
Bearing:
-
Bouble bearing
-
Wheel material:
-
PU Tyre+PP Core
-
Load Capacity:
-
150kg
-
Wheel Diameter:
-
75/100/125mm

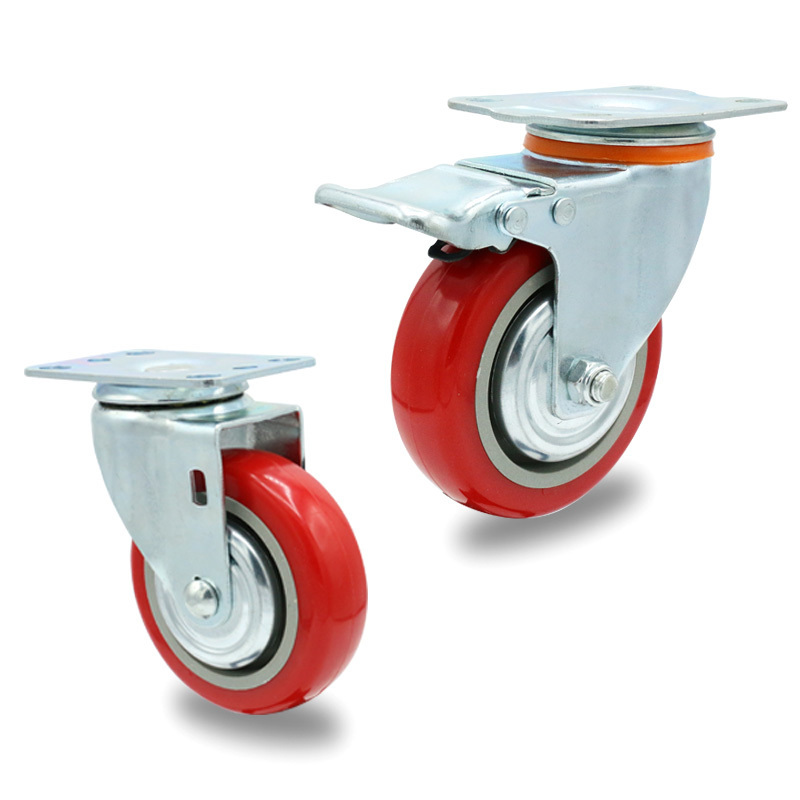

4 inch swivel plate medium duty pu caster 4 inch trolley wheels with brakes
Recommend Products
Characteristics of different material casters
1. PU casters: Whether the casters work indoors or outdoors, they can meet your
requirements.
requirements.
2. TRP casters: They can be used in the situations that require less noise and work quietly, like working in hotels,
on medical equipment, on floors, on wooden floors, on tile floors ....
on medical equipment, on floors, on wooden floors, on tile floors ....
3. Nylon casters and iron casters: The casters are suitable for the places where the ground is uneven or where there are iron scraps on the ground.
4. Rubber casters: The casters are inappropriate under the condition of acid, grease and chemicals. 5. Pneumatic casters: The casters are suitable for light load and the uneven roads .
Products Description
PU wheel features: Good properties of abrasion resistance, chemical resistance, high strength, high elasticity, low pressure resistance, strong shock absorption, tear resistance, radiation resistance, high load bearing and shock absorption.
Bracket process: galvanized/electrophoretic paint/chrome plating.
Wheel size: 3 inches 4 inches 5 inches 6 inches 8 inches.
|
Size
|
3 inch
|
4 inch
|
5 inch
|
||
|
diameter
|
75mm
|
75mm
|
75mm
|
||
|
width
|
30mm
|
30mm
|
30mm
|
||
|
installation height
|
105mm
|
130mm
|
155mm
|
||
|
Square plate thickness
|
2.5mm
|
3mm
|
3mm
|
||
|
Bracket thickness
|
2.5mm
|
2.5mm
|
2.5mm
|
||
|
Bearing form
|
single 6202
|
single 6202
|
single 6202
|
||
|
Capacity
|
80kg
|
110kg
|
150kg
|
||
|
Installation size
|
①94*64mm ②102*80mm
|
|
|
||
|
Square plate size
|
①94*64mm ②102*80mm
|
|
|
||
|
Hole Size
|
8mm
|
|
|
||
|
Stem Size
|
M12 x 30mm,M12*25mm,M16*25 or other
|
|
|
||
|
Material
|
1. Thickened Steel Bracket 2. Enviroment pu Wheels 3. Plastic Core
|
|
|
||
|
Mounting Way
|
1.Rigid 2.Top Plate/Stem Swivel 3.Top Plate /Stem with Brake
|
|
|
||
