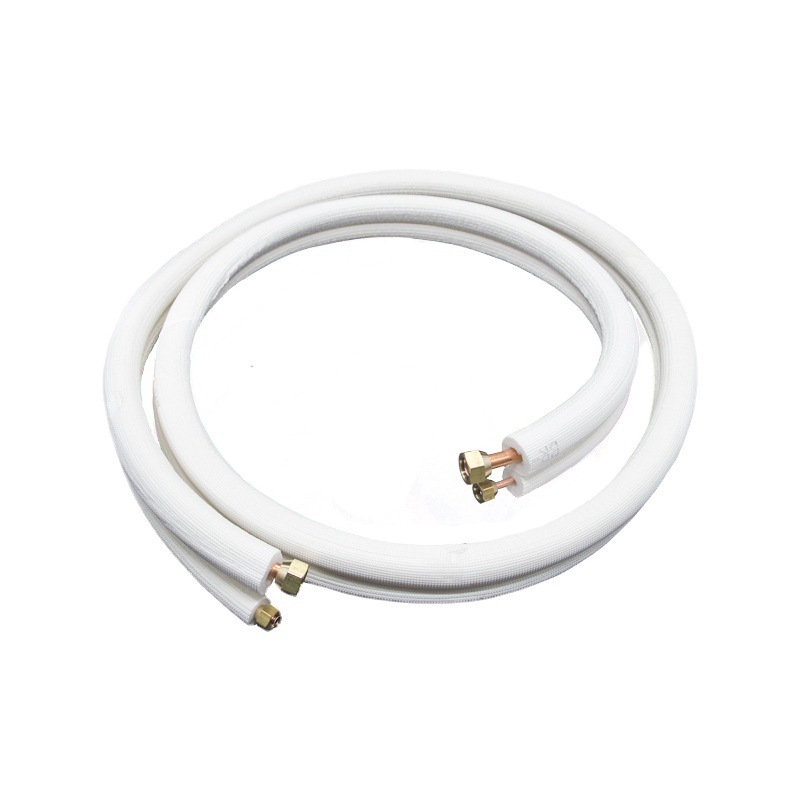

1. Suggestion sizes of airconditioning pipe insulation(double pipe) Parameters (For R410A, R404A, R407C, R507A, R134A refrigerant)

specification	size of aluminum tube	size of insulation tube	wall thickness of insulation tube
1/4”+3/8”	6.35×0.8+9.52×0.8mm	φ8+φ12	8mm+8mm
1/4”+1/2”	6.35×0.8+12.70×0.8mm	φ8+φ14	8mm+8mm
1/4”+5/8”	6.35×0.8+15.88×1.0mm	φ8+φ18	8mm+8mm
3/8”+5/8”	9.52×0.8+15.88×1.0mm	φ12+φ18	8mm+8mm
3/8”+3/4”	9.52×0.8+19.05×1.0mm	φ12+φ22	8mm+8mm
1/2”+3/4”	12.70×0.8+19.05×1.0mm	φ14+φ22	8mm+8mm

2.Suggestion sizes of airconditioning pipe insulation(double pipe) Parameters (For R22,R12 refrigerant)

specification	size of aluminum tube	size of insulation tube	wall thickness of insulation tube
1/4”+3/8”	6.35×0.6+9.52×0.6mm	φ8+φ12	8mm+8mm
1/4”+1/2”	6.35×0.6+12.70×0.6mm	φ8+φ14	8mm+8mm
1/4”+5/8”	6.35×0.6+15.88×0.8mm	φ8+φ18	8mm+8mm
3/8”+5/8”	9.52×0.6+15.88×0.8mm	φ12+φ18	8mm+8mm
3/8”+3/4”	9.52×0.6+19.05×0.8mm	φ12+φ22	8mm+8mm
1/2”+3/4”	12.70×0.6+19.05×0.8mm	φ14+φ22	8mm+8mm

PS:All of the copper and aluminum tube diameter and wall thickness can be changed by customers’ required.

1.Q:Why choose Domi? * Professional supplier on HVAC&R system; * Lowest factory price with good quality; * Low MOQ for start small business; * Free sample to check quality; * Meet safety standard for Europe and other area; * Good printing on tubes and packing boxes; * Accept trade assurance order to protect buyer. 2.Q:What is advantage on quality? * All processing are produced in our own factory,we can control the quality; * All copper pipe insulation kit; * Electric resistance welding technique for copper-aluminum pipe insulation kit; * Fast delivery,we produce more than 8,000 kits for 1 day. 3.Q:Can you do ODM and OEM? * Yes,we do. 4.Q:How to get a sample? * Our sample is free,please charge for the express cost by collection; * For customized sample,please contact us for sample cost. 5.Q:How to save sample cost? *If you place order directly,we will send you free smaple for checking quality before shipping. 6.Q:What is sample time and production time? * Existing sample 2days; * Customized sample 5-7days; * Production time 15-20days. 7.Q:How to ship? * Sea freight,Air freight,express; * Cheapest way is sea freight.
