Quick Details
-
Model Number:
-
WVT-2-65+WVA33-1
-
Name::
-
Globe Valve
-
Model::
-
WVT-2-65+WVA33-1
-
Input Signal:
-
ON/OFF
-
Power::
-
AC220V
-
Actuator Torque::
-
2500N.m
-
Running Time::
-
4.6s/mm
-
Circuit Consumption::
-
2 VA
-
Rated Pressure::
-
PN16
Quick Details
-
Application:
-
Multiple
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Winvall
-
Model Number:
-
WVT-2-65+WVA33-1
-
Name::
-
Globe Valve
-
Model::
-
WVT-2-65+WVA33-1
-
Input Signal:
-
ON/OFF
-
Power::
-
AC220V
-
Actuator Torque::
-
2500N.m
-
Running Time::
-
4.6s/mm
-
Circuit Consumption::
-
2 VA
-
Rated Pressure::
-
PN16

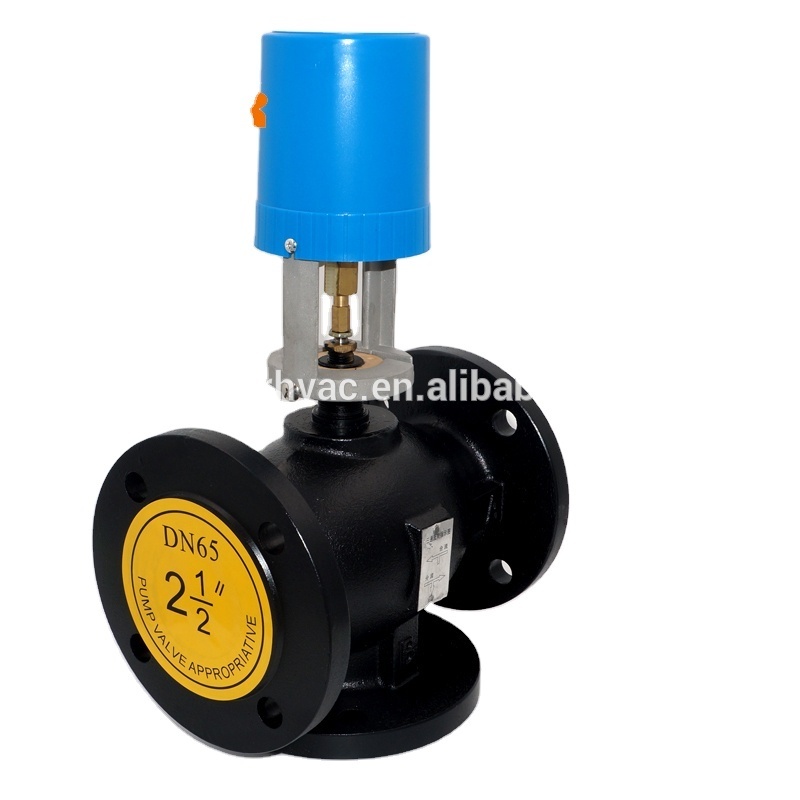

Winner Electric Actuator Seat Valve
Winner Control valve consists of WVA32-2-(..2500) series rotary actuator and WVT-3-..series valve body. Equal percentage flow characteristic guarantees the valve performances of staility. Mode code as following:
WVA32-1-D2500 Incremental control by reversible motor
WVA32-2-A2500 Proportional control with input & output signal 0~10vdc/4~20mA
Electric Actuator Seat Valve Application
1. HVAC System
2. Heating system
3. Water treatment system
4. Industrial equipments
Electric Actuator Seat Valve Features
AC24V Lower power supply voltage, synchronous motor
1. magnetic clutch
2. use a central screw sleeve connection the valve shaft and positioning by leve scale
3. valve opening status indication
4. ABS flame retardant engineering plastics
5. Easy installation type
6. Proportional control, CW/CCW switch rotating direction by press key 2, LED2 on CW, LED2 off CCW
7. Proportional control, input signal switch by press key 3, LED3 on 0~10vdc, LED3 off 4~20mA.
Seat Valve Specfications
WVT-2/3-Series 2 way or 3 way flanged valve consists of valve body, cap, valve clack, stem, shaft seal and sealing elements.
Rate Pressure (Bar): 5
Valve body: WCB
Valve cap: Q235A
Valve clack: Brass
Valve Stem: 1Cr18Ni9(AISI302) Stainless Steel
Flow characteristic: Equal percentage
Sealing elements: Teflon ring +NBR O ring
Max. Temp: 200 C degree
Min. Temp: 10 C degree
Rated Pressure: PN16
Leakage Rate: 0.03% Kvs
| Model Code | WVA32-2-D1000 | WVA32-2-A2500 |
| Control Type | Reversible and increase control | Proportional control, CW/CCW |
| Power &Signal |
Power: 24V AC, 50/60Hz Input signal: 0~10vdc or 4~20mA |
|
| Motor Type | Bidirectional Synchronous motor | |
| Electric Parameters of Motor | 24V AC, 50/60Hz (dual frequency) 10VA | |
| Circuit Consumption | 2VA | |
| Working Torque | 2500 N.m (*4000N.m optional ) | |
| Material | Gear: Stainless steel, brass | |
| Speed reducer panel: Zinc plated steel sheet | ||
| Holder: Die casting aluminum allos | ||
| Shell: ABS Flame retardant engineering plastics | ||
| Running Time | 50Hz, 4.6s/mm (*4000N.m type: 50Hz, 8.3s/mm) | |
| 60Hz, 3.8s/mm (*4000N.m type: 60Hz, 6.9s/mm) | ||
| Ambient Temp | working: -5 C degree~ +500 C degree | |
| Storge: -20 C degree ~ + 65 C degree | ||
| Max. Relative Humidity | <90% RH Non-condenstate | |
| External Cable | 0.75~1.5mm2 | |
| Factory Setting | Input Singal: 0~10v dc | |
| Accessories | Clamp nut, connect nut, simicycle snap ring | |
| N.W. | 4.1kgs | 4.3kgs |
