Quick Details
-
Brand Name:
-
ANCHE
-
Model Number:
-
FRP PANEL
-
Surface Treatment:
-
GELCOAT, Gel coat
-
Product name:
-
1mm-5mm grp 4x8 fiberglass sheet frp gel coat flat panel
-
Color:
-
RAL
-
Thickness:
-
1mm to 5mm
-
Width:
-
≤3000mm
-
Length:
-
100m/roll or customized
-
Certificate:
-
CLASS A
-
HS code:
-
3921909090
-
Material:
-
fiberglass reinforce plastic
Quick Details
-
Application:
-
Truck body, truck body
-
Technique:
-
pultrusion
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
ANCHE
-
Model Number:
-
FRP PANEL
-
Surface Treatment:
-
GELCOAT, Gel coat
-
Product name:
-
1mm-5mm grp 4x8 fiberglass sheet frp gel coat flat panel
-
Color:
-
RAL
-
Thickness:
-
1mm to 5mm
-
Width:
-
≤3000mm
-
Length:
-
100m/roll or customized
-
Certificate:
-
CLASS A
-
HS code:
-
3921909090
-
Material:
-
fiberglass reinforce plastic
Product Description
What is FRP?

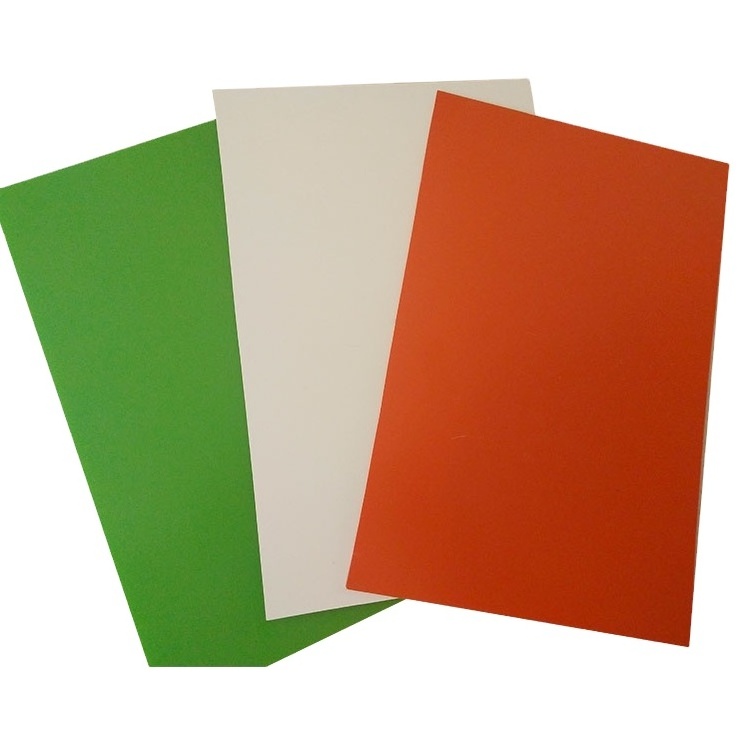

FRP PANEL:FRP sheet is made of thermosetting plastics and reinforced glass fiber, and its strength is greater than that of steel and aluminum. The product will not produce deformation and fission at ultra-high temperature and low temperature, and its thermal conductivity is low. It is also resistant to aging, yellowing, corrosion, friction and easy to clean.
Surface (Gel-coat)
High-quality Gel-coat to improve the material's UV resistance and color durability, while increasing the gloss of the surface of the plate and making the surface not appear pores, cracking, scratches and other phenomena thus form a very beautiful and striking appearance.The Gel coat also provides greater resistance to corrosion and can be cleaned.
Middle (Fiberglass felt or Woven Roving fiberglass)
Anche imported from abroad using glass fiber mat and fiber cloth, and resin bonding stronger, more soluble in styrene, at the same time anche products high strength, light weight, good toughness. The characteristics of good impact resistance are also well displayed.
Back Side (Resin)
The substrate surface of the FRP panel is more flat, clean, no air hole, no crack, no scratch, adhesion is better.
High-quality Gel-coat to improve the material's UV resistance and color durability, while increasing the gloss of the surface of the plate and making the surface not appear pores, cracking, scratches and other phenomena thus form a very beautiful and striking appearance.The Gel coat also provides greater resistance to corrosion and can be cleaned.
Middle (Fiberglass felt or Woven Roving fiberglass)
Anche imported from abroad using glass fiber mat and fiber cloth, and resin bonding stronger, more soluble in styrene, at the same time anche products high strength, light weight, good toughness. The characteristics of good impact resistance are also well displayed.
Back Side (Resin)
The substrate surface of the FRP panel is more flat, clean, no air hole, no crack, no scratch, adhesion is better.
|
Item
|
Parameters
|
|
Thickness
|
1mm-5mm
|
|
Package
|
Bulk or pallet
|
|
Width
|
≤3000mm
|
|
Length
|
100m/roll & Customized
|
|
Colour
|
Customized
|
|
Delivery Time
|
7-10 days
|
Product Paramenters
|
Item
|
Units
|
Parameter
|
Testing Standard
|
|
Tensile Strength（Felt base）
|
Mpa
|
60-90
|
GB/T 1447-2005
|
|
Tensile Strength（woven roving
|
Mpa
|
90-150
|
GB/T 1447-2005
|
|
Flexural Strength（Felt base）
|
Mpa
|
130-180
|
GB/T 1449-2005
|
|
Flexural Strength（woven roving
|
Mpa
|
250-300
|
GB/T 1449-2005
|
|
Water absorption
|
/
|
0.24
|
GB/T 1462-2005
|
|
Density
|
g/cm3
|
1.3-1.5
|
/
|
|
Impact Strength
|
kj/㎡
|
≥30
|
GBT 1451-2005
|
|
Barcol hardness
|
/
|
≥35
|
GB/T 1447-2005
|
Application
FRP panels are widely used in buildings, refrigerated warehouses, refrigerated vehicles, trains, passenger cars, ships, food processing plants, restaurants, pharmaceutical factories, laboratories, hospitals, bathrooms, large supermarkets, schools and other places, such as walls, partitions, doors, ceilings, etc. .
Product packaging
COMPANY PROFILE
WE ASSURE
1 Stable Quality
2 Quickly Response
3 Independent Laboratory
4.Delivery Fastly
1 Stable Quality
2 Quickly Response
3 Independent Laboratory
4.Delivery Fastly
Exhibition
FAQ
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, which is located in ANHUI,CHINA.
Q: Do you have quality control?
A: Yes, we have gained SGS authentication and we have our own lab .
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q:How about the delivery time?
A: Generally it is 7-10 days.
A: Yes , we are a manufacturer, We have own factory, which is located in ANHUI,CHINA.
Q: Do you have quality control?
A: Yes, we have gained SGS authentication and we have our own lab .
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q:How about the delivery time?
A: Generally it is 7-10 days.
