Quick Details
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
3600/4500/5000/7200/14400/15000mm
-
Working Temperature:
-
1100C/1260C/1360C/1430C (2012F/2300F/2480F/2600F)
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
24h -3
-
Thermal Conductivity:
-
0.16(800 )
-
Model Number:
-
Standard
-
Brand Name:
-
JIUQIANG
-
Place of Origin:
-
Shandong, China
-
Product name:
-

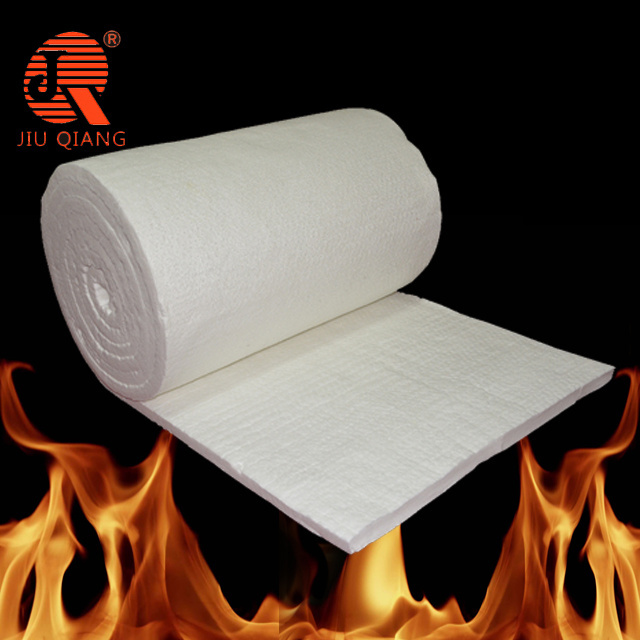

1260 heat insulation thermal ceramic fiber blanket
-
Raw material:
-
Aluminum silicate
-
Color:
-
Pure White
-
Package:
-
carton or woven bag for thermal insulation blanket
-
Item:
-
Refractory high temperature fire blanket price
-
Application of ceramic fiber blanket:
-
Refractory Furnace Lining
-
Feature 1:
-
Low Thermal Conductivity
-
Type:
-
1100C/1260C/1420C/1600C
Quick Details
-
Thickness:
-
10-50mm
-
Width:
-
610/1220mm
-
Chemical Composition:
-
AL2O3+SIO2
-
Ultimate Strength (≥ MPa):
-
0.04
-
Density (kg/m³ ):
-
128
-
Length:
-
3600/4500/5000/7200/14400/15000mm
-
Working Temperature:
-
1100C/1260C/1360C/1430C (2012F/2300F/2480F/2600F)
-
Fiber Diameter:
-
3-5um
-
Shrinkage (1800 ℉, 3h):
-
24h -3
-
Thermal Conductivity:
-
0.16(800 )
-
Model Number:
-
Standard
-
Brand Name:
-
JIUQIANG
-
Place of Origin:
-
Shandong, China
-
Product name:
-
1260 heat insulation thermal ceramic fiber blanket
-
Raw material:
-
Aluminum silicate
-
Color:
-
Pure White
-
Package:
-
carton or woven bag for thermal insulation blanket
-
Item:
-
Refractory high temperature fire blanket price
-
Application of ceramic fiber blanket:
-
Refractory Furnace Lining
-
Feature 1:
-
Low Thermal Conductivity
-
Type:
-
1100C/1260C/1420C/1600C
Jiuiang heat insulation blanket for is a new kind fire-resistant heat insulation material with white color, standard dimension and the function of fire- resistance, heat insulation and heat preservation. Without any bonding agent, good tensile strength, tenacity and fiber structure can be kept while using under the normal and oxidation condition. Temperature level is 1100-1430°c.
1.Low thermal conductivity, low heat storage
2.Excellent thermal stability and thermal shock resistance
3.Excellent tensile strength
4.Excellent thermal insulation, fire-proof and sound absorption
1.Industrial furnace, heating devices, high temperature pipe wall linings
2.High tempeture boilers, steam turbine and Nuclear power thermal insulation
3.Chemical industrial high-temperature reaction equipment and heating equipment wall linings
4.High building fireproof and thermal insulation
5.Furnace door and roof thermal insulation
6.High temperature filter materials
|
Type |
Common |
Standard |
High Purity |
High Aluminium |
Zirconia |
|
|
Classification temperature (°C) |
1100 |
1260 |
1260 |
1360 |
1400 |
|
|
Working Temperature (°C) |
< 1000 |
1050 |
1100 |
1260 |
1350 |
|
|
Color |
White |
Pure white |
Pure white |
Pure white |
Pure white |
|
|
Density (kg/m3) |
96/128/160 |
96/128/160 |
96/128/160 |
128/160 |
128/160 |
|
|
Shrinkage on heating (%) (24 hours, density as 128/m 3 ) |
-4
|
-3
|
-3
|
-3
|
-3
|
|
|
Thermal conductivity by different temperature (w/m.k) (density as 128kg/m 3 ) |
0.09(400°C)
|
0.09(400°C)
|
0.09(400°C)
0.16(800°C)
|
0.12(600°C)
|
0.16(800°C)
|
|
|
Tensile strength (MPa)
|
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
|
|
Chemical composition (%) |
AL 2 O 3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
|
AL 2 O 3 +SiO 2 |
96 |
97 |
99 |
99 |
- |
|
|
AL 2 O 3 +SiO 2 +ZrO 2 |
- |
- |
- |
- |
99 |
|
|
ZrO 2 |
- |
- |
- |
- |
15-17 |
|
|
Fe 2 O 3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
|
Na 2 O+K 2 O |
≤0.5 |
≤0.5 |
0.2 |
0.2 |
0.2 |
|
|
Size (mm) |
14400/7200/4500/3600×1220/610×6-50; Other sizes can be available. |
|||||
Packaging & Shipping
We often adopt carton packages or woven bags for our products, but for load and unload consideration, you can also adopt pallet package.
