Quick Details
-
Brand Name:
-
BISON
-
Model Number:
-
DWP30
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
10HP
-
Cable Length:
-
/
-
Outlet Size:
-
3 inch
-
Power:
-
/
-
motor:
-
Diesel
-
Product Name:
-
Piston Pump Unit
-
Material:
-
Cast Iron
-
Engine type:
-
1-Cylinder, 4-strock, Air-cooled Diesel Engine
-
Engine Spare Parts:
-
Carburetor, Camshaft, Spark Plug, Piston, Crankshaft, Crankcase
-
Water Pump Type:
-
Agricultural Irrigation Low Pressure Centrifugal Diesel Water Pump
-
Water Pump Size:
-
Pressure 1inch, 1.5inch, 2inch, 3inch, 4inch, 6inch All Have
-
Keywords:
-
Diesel engine irrigation pump
-
Maximum Head:
-
80mm
-
Maximum Flow Rate:
-
41 M3/H
-
Theory:
-
Centrifugal Pump
Quick Details
-
Application:
-
Family Homes, Irrigation and Agriculture, wastewater treatment, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
/
-
Brand Name:
-
BISON
-
Model Number:
-
DWP30
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
10HP
-
Cable Length:
-
/
-
Outlet Size:
-
3 inch
-
Power:
-
/
-
motor:
-
Diesel
-
Product Name:
-
Piston Pump Unit
-
Material:
-
Cast Iron
-
Engine type:
-
1-Cylinder, 4-strock, Air-cooled Diesel Engine
-
Engine Spare Parts:
-
Carburetor, Camshaft, Spark Plug, Piston, Crankshaft, Crankcase
-
Water Pump Type:
-
Agricultural Irrigation Low Pressure Centrifugal Diesel Water Pump
-
Water Pump Size:
-
Pressure 1inch, 1.5inch, 2inch, 3inch, 4inch, 6inch All Have
-
Keywords:
-
Diesel engine irrigation pump
-
Maximum Head:
-
80mm
-
Maximum Flow Rate:
-
41 M3/H
-
Theory:
-
Centrifugal Pump

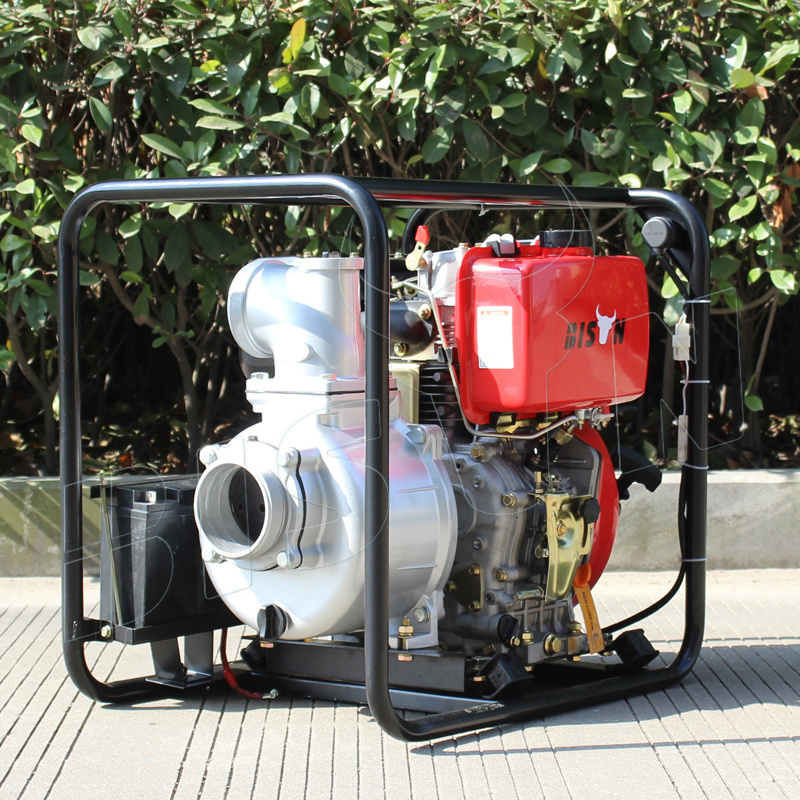

4" high head high pressure diesel water pump for agricultural irrigation
|
Diesel Water Pump
|
BSD20
|
BSD30
|
BSD40
|
BSD40(E)
|
|||
|
In/outlet size(mm)
|
50(2.0'')
|
80(3.0")
|
100(4.0")
|
100(4.0")
|
|||
|
Pump lift(m)
|
26
|
25
|
31
|
31
|
|||
|
Suction height(m)
|
8
|
8
|
8
|
8
|
|||
|
Flux(m³/h)
|
36
|
50
|
96
|
96
|
|||
|
Model
|
BS170F(E)
|
BS178F(E)
|
BS186F(E)
|
BS186F(E)
|
|||
|
Output(kw)
|
2.5
|
4.0
|
6.3
|
6.3
|
|||
|
Bore x stroke(mm)
|
70*55
|
78*62
|
86*70
|
86*70
|
|||
|
Displacement(cc)
|
211
|
296
|
406
|
406
|
|||
|
Type
|
Single Cylinder, Air Cooled, 4 Stroke
|
|
|
|
|||
|
Compression ratio
|
20:1
|
20:1
|
19:1
|
19:1
|
|||
|
Rated speed(RPM)
|
3000/3600
|
3000/3600
|
3000/3600
|
3000/3600
|
|||
|
Starting system
|
Recoil start/Key start
|
|
|
|
|||
|
Fuel tank capacity(L)
|
2.5
|
3.5
|
5.5
|
5.5
|
|||
|
N.W./G.W.(kg)
|
35/37
|
52/54
|
64/67
|
69/72
|
|||
|
Dimension(m³/h)
|
500*420*500
|
560*440*550
|
650*480*600
|
650*500*740
|
|||
