Products

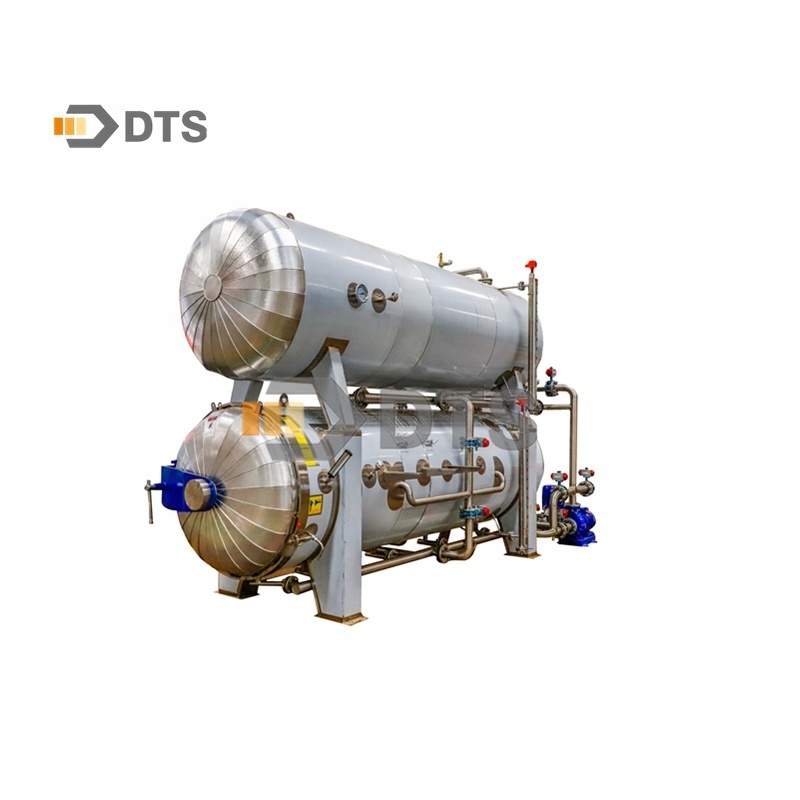

DTS High Pressure Water Immersion Retort for Canning Olive Retort
DTS High Pressure Water Immersion Retort for Canning Olive Retort
DTS High Pressure Water Immersion Retort for Canning Olive Retort
DTS High Pressure Water Immersion Retort for Canning Olive Retort
DTS High Pressure Water Immersion Retort for Canning Olive Retort
DTS High Pressure Water Immersion Retort for Canning Olive Retort
DTS High Pressure Water Immersion Retort for Canning Olive Retort
DTS High Pressure Water Immersion Retort for Canning Olive Retort

DTS High Pressure Water Immersion Retort for Canning Olive Retort

FOB Reference Price: Get Latest Price
≥1 Sets
US $45000
≥3 Sets
US $42500
≥5 Sets
US $40000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/380V/415V/440V(or customized)
Power:
20-50kw
Weight:
1980 KG
Dimension(L*W*H):
6.3m*2.1m*3.35m
Sterilizing way:
Water Immersion
Heating way:
Steam Boiler
Material:
Stainless Steel SUS304
Usage:
Extend Food Shelf Life
Control system:
PLC
Working temperature:
115-129
Package:
Wooden Case
Function:
High Temperature High Pressure Sterilizing
Advantage:
High Efficiency Low Cost
Volume:
5.49

Quick Details

Marketing Type:
New Product 2023
Place of Origin:
Shandong, China
Brand Name:
DTS
Voltage:
220V/380V/415V/440V(or customized)
Power:
20-50kw
Weight:
1980 KG
Dimension(L*W*H):
6.3m*2.1m*3.35m
Sterilizing way:
Water Immersion
Heating way:
Steam Boiler
Material:
Stainless Steel SUS304
Usage:
Extend Food Shelf Life
Control system:
PLC
Working temperature:
115-129
Package:
Wooden Case
Function:
High Temperature High Pressure Sterilizing
Advantage:
High Efficiency Low Cost
Volume:
5.49
Product Description

Advantages

Uniform water flow distribution
By switching the water flow direction in the retort vessel, uniform water flow is achieved at any position in the vertical and horizontal directions. An ideal system for dispersing water to the center of each product tray to achieve uniform sterilization without dead ends.

High temperature short time treatment
High temperature short time sterilization can be performed by heating hot water in a hot water tank in advance and heating from high temperature to sterilize.

Suitable for easily deformed containers
Because water has buoyancy, it can form a very good protective effect on the container under high temperature state.
Suitable for handling large packaging canned food
It is difficult to heat and sterilize the central part of large canned food in a short time by using a stationary retort,
especially for food with high viscosity.
By rotating, the high viscosity food can be evenly heated to the center in a short time, and achieve effective sterilization
effect. The buoyancy of the water at high temperature also plays a role in protecting the product packaging during the rotating process.

Product Application

Detailed Images

Model Diameter(mm)

Body Length

(mm)

Volume(m³) Length(mm) Width(mm) Height(mm)

Basket size

(L*W*Hmm)

J-1003 1000 2400 2.12 4000 1700 2900 758*650*621
J-1204 1200 3600 4.47 5400 2100 3350 860*800*775
J-1404 1400 3900 6.62 6050 2500 3900 920*920*915
J-1505 1500 5300 10.12 7700 2600 4450 1000*1000*975

Packaging & Shipping
