Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*3000mm
-
Cutting Thickness:
-
0-25mm
-
Control Software:
-
LaserCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YIZHOULASER
-
Weight (KG):
-
950 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

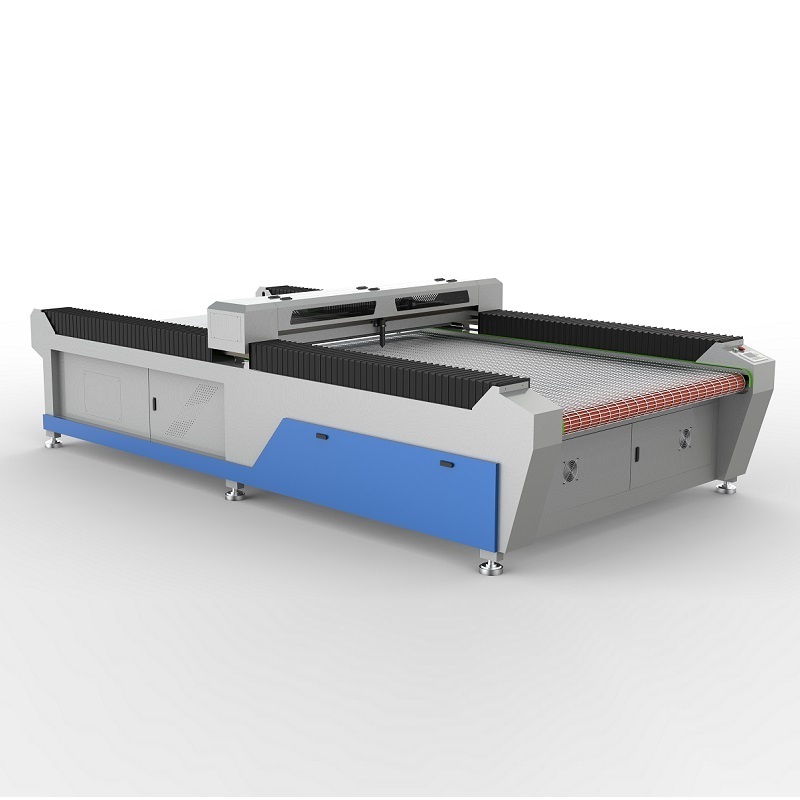

CO2 CNC Laser Cutting Machine price for fabric
-
Laser power:
-
130W
-
Laser tube:
-
EFR
-
Working area:
-
1600mmX1000mm
-
Color:
-
Blue-white
-
Function:
-
cutting for fabric
-
Model:
-
Y1610
-
Table:
-
auto feeding
-
Software:
-
Ruida latest software
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
1500mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*3000mm
-
Cutting Thickness:
-
0-25mm
-
Control Software:
-
LaserCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YIZHOULASER
-
Weight (KG):
-
950 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
CO2 CNC Laser Cutting Machine price for fabric
-
Laser power:
-
130W
-
Laser tube:
-
EFR
-
Working area:
-
1600mmX1000mm
-
Color:
-
Blue-white
-
Function:
-
cutting for fabric
-
Model:
-
Y1610
-
Table:
-
auto feeding
-
Software:
-
Ruida latest software
Product Application
Main configurations of laser cutting machine for fabirc
1. 1600*3000 mm working size
2. 150 W Reci/EFR laser tube
3. Water chiller CW5000
4. Servo Motor&Driver
5. PMI linear rail+Belt transmission
6. USB port, WIFI control optional
Features of home fabric laser cutting machine:
- Auto-feeding, which increases efficiency
- Professional for large rolls of material, like fabric or rubber
- Can cut fabric in a variety of thicknesses
Machine Parts
Name: Laser Tube
Brand: Reci/ EFR
Original: China
Power: 150 W
L: 1650 mm
R: 80 mm diameter,10000 hours life time
Max.output power:160W
Main Parts
Name:
Driver&Motor
Brand: Leadshine/Delta/Panasonic
Original: China/Japan
Servo motor and driver makes machine running low noice and precision,automatic checking signal and protect machine
Machine Parts
Name:
Water Chiller
Brand:
TY
Original:
China
Automatic Alarm system and temperature controlled,good working for cooling laser tube, cooling capacity reach to 1500W
Main Features
Name:
Tank Chain
Original: China
T
ank chain produced by Chinese military company,good quality and longer life time.
Machine Parts
Low noise and no-oil 0.8 Mpa air compressor
Machine Parts
99.99% focus rate, best quality
Diameter: 20 mm
Foci: 50.8 mm| 63.5 mm |100 mm
Machine Parts
Stainless steel conveyor belt
Machine Parts
Machine Part
Machine Parts
good quality laser head,with adjust screw,easy to adjust laser route
Machine Parts
150W laser power supply,with alarm system
