Quick Details
-
Model Number:
-
FDL90
-
Nominal Diameter:
-
DN100-DN3000
-
Power supply:
-
24VDC 220VDC/ Battery
-
Output:
-
4-20mA
-
Accuracy:
-
0.2% , 0.5%
-
Flow Rate:
-
0.3-12m/s
-
Digital communication::
-
RS485, RS232, MODBUS,REMOTE
-
Nominal Pressure:
-
4.0MPa,1.6MPa,1.0MPa,Or other specified by order
-
Medium Temperature:
-
80~150 Degree C
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FRD
-
Model Number:
-
FDL90
-
Nominal Diameter:
-
DN100-DN3000
-
Power supply:
-
24VDC 220VDC/ Battery
-
Output:
-
4-20mA
-
Accuracy:
-
0.2% , 0.5%
-
Flow Rate:
-
0.3-12m/s
-
Digital communication::
-
RS485, RS232, MODBUS,REMOTE
-
Nominal Pressure:
-
4.0MPa,1.6MPa,1.0MPa,Or other specified by order
-
Medium Temperature:
-
80~150 Degree C
Products Description

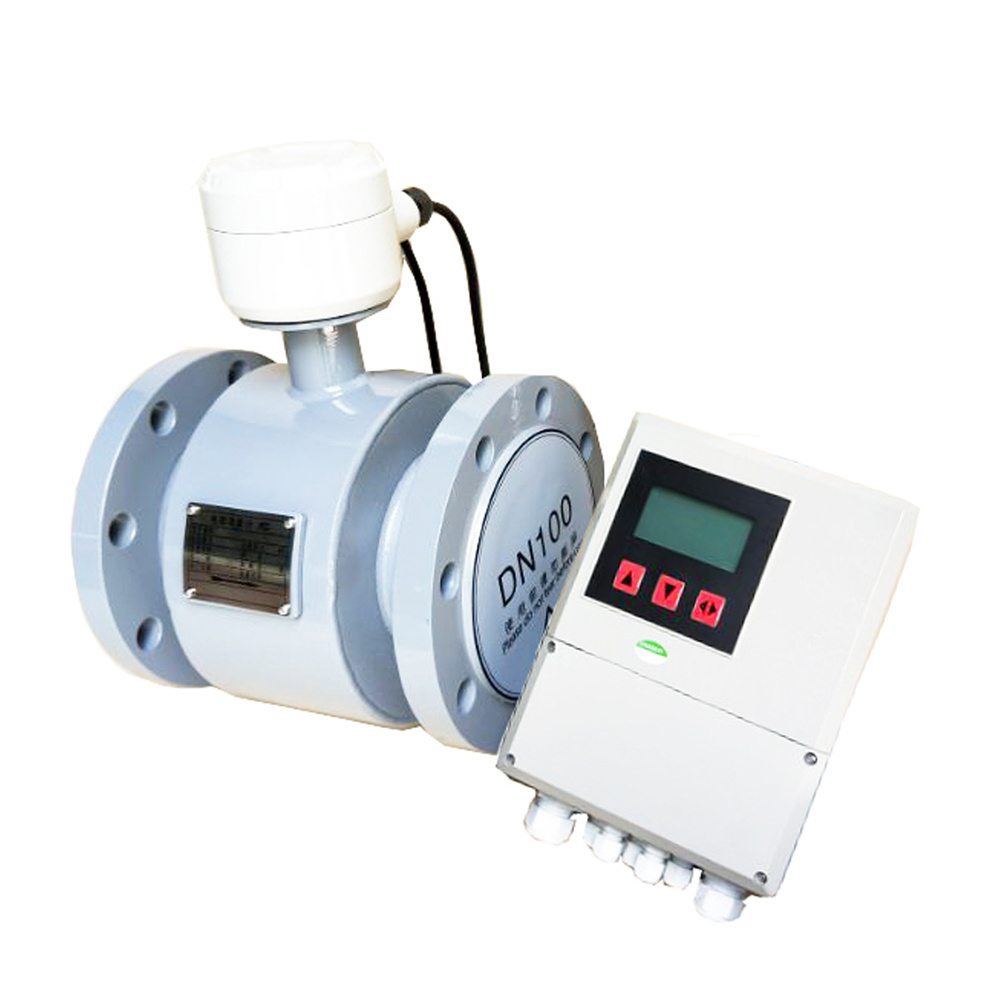

Electromagnetic flowmeter
Electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water,agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry.
Feature:
* Measurement is not affected by the variation of flow density, viscosity, temperature,pressure and conductivity. High accuracy measurement is guaranteed according to the linear measurement principle.
* No obstacle in the pipe, no pressure-loss and lower requirement for straight pipeline.
* DN 6 to DN2000 covers a wide range of pipe size. A variety of liners and electrodes are available to satisfy different flow
characteristic.
* Programmable low frequency square wave field excitation, improving measurement stability and reducing power consumption.
* Implementing 16 bits MCU, providing high integration and accuracy; Full-digital processing, high noise resistance and reliable measurement; Flow measurement range up to 1500:1.
* High definition LCD display with backlight.
* RS485 or RS232 interface supports digital communication.
* Intelligent empty pipe detection and electrodes resistance measurement diagnosing empty pipe and electrodes contamination accurately.
* SMD component and surface mount technology (SMT) are implemented to improve the reliability.
* No obstacle in the pipe, no pressure-loss and lower requirement for straight pipeline.
* DN 6 to DN2000 covers a wide range of pipe size. A variety of liners and electrodes are available to satisfy different flow
characteristic.
* Programmable low frequency square wave field excitation, improving measurement stability and reducing power consumption.
* Implementing 16 bits MCU, providing high integration and accuracy; Full-digital processing, high noise resistance and reliable measurement; Flow measurement range up to 1500:1.
* High definition LCD display with backlight.
* RS485 or RS232 interface supports digital communication.
* Intelligent empty pipe detection and electrodes resistance measurement diagnosing empty pipe and electrodes contamination accurately.
* SMD component and surface mount technology (SMT) are implemented to improve the reliability.
Product Paramenters
|
item
|
value
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
Brand Name
|
FRD
|
|
Model Number
|
FDLE
|
|
Type
|
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
|
Recommend Products
Working Principle
The measuring principle of electromagnetic flowmeter is based on the electromagnetic induction law of Farady. The sensor is mainlycomposed of measuring tube with isolate lining, a pair of electrodes installed by penetration of the measuring tube wall, a pairof coils and iron core to produce working magnetic field. When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid.
