Quick Details
-
table diameter:
-
350mm 14"
-
max. rotary angle of table:
-
360 degree
-
swing angle of ram:
-
+/- 45 degree
-
tool shank size:
-
WxH 25x40 mm
-
max.cutting tool force:
-
4500 N
-
max. worktable load:
-
300 kgs
-
center T-slot:
-
14mm
-
speed motor:
-
700/1410 rpm
-
protection guard on spindle:
-
touch stop
-
Weight:
-
900kg
-
Certification:
-
CE
-
Power:
-
1.5kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
max.slotting length:
-
160 mm
-
table diameter:
-
350mm 14"
-
max. rotary angle of table:
-
360 degree
-
swing angle of ram:
-
+/- 45 degree
-
tool shank size:
-
WxH 25x40 mm
-
max.cutting tool force:
-
4500 N
-
max. worktable load:
-
300 kgs
-
center T-slot:
-
14mm
-
speed motor:
-
700/1410 rpm
-
protection guard on spindle:
-
touch stop
-
Weight:
-
900kg
-
Certification:
-
CE
-
Power:
-
1.5kw

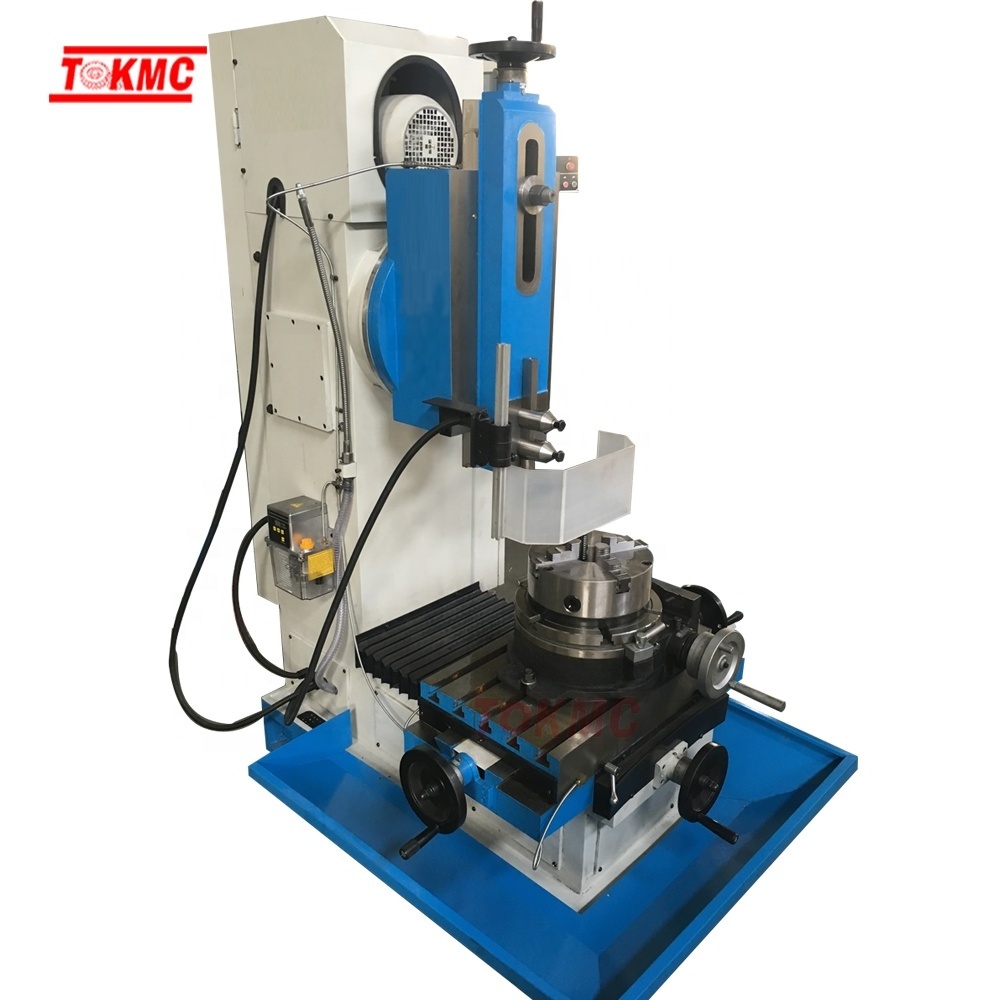

high precision metal steel vertical slotting machine B5016
Feature :
1- Electrical System Suitable To CE
3 - Brake for Motor
4 - Spindle Chip Cover with Safety Switch
5 - Chip Covers for Guideways
6 - Chip Tray
7 - Time Adjustable Auto Lubircation System
8 - Rotary Table 320 mm & Chuck 250 mm & Index
9 - Working Lamp
10 - Coolant System
|
Specification |
Unit |
B5016C |
|
Max. Slotting length |
mm |
160 |
|
No. Of ram strokes per minute |
|
23,32,44,48,67 |
|
Swing angle of ram |
deg |
45 ° |
|
Table diameter |
mm |
350mm |
|
Vertical adjustment of ram |
Mm |
160 |
|
Distanc between tool holding surface and column front |
mm |
485 |
|
Distance between table surface and lower end of ram slide |
mm |
320 |
|
Max.longitudinal travel of table |
mm |
360 |
|
Max. Cross travle of travel |
mm |
320 |
|
Max.rotary angle of table |
deg |
360 |
|
Tool shank size (WXH) |
mm |
25x40 |
|
Max.cutting force |
N |
4500 |
|
Max.table load-carrying capacity |
KGS |
300 |
|
Width of table center T-slot |
Mm |
14 |
|
Power of main drive motor |
Rpm |
700/1410 |
|
Net weight |
KGS |
1000 |
|
Overall dimensions |
mm |
1270x1100x1700 |
