Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
hengsheng
-
Model Number:
-
300-180S1
-
Torque:
-
customized
-
Model:
-
300-180S1
-
Structure:
-
Permanent magnet type
-
Product Name:
-

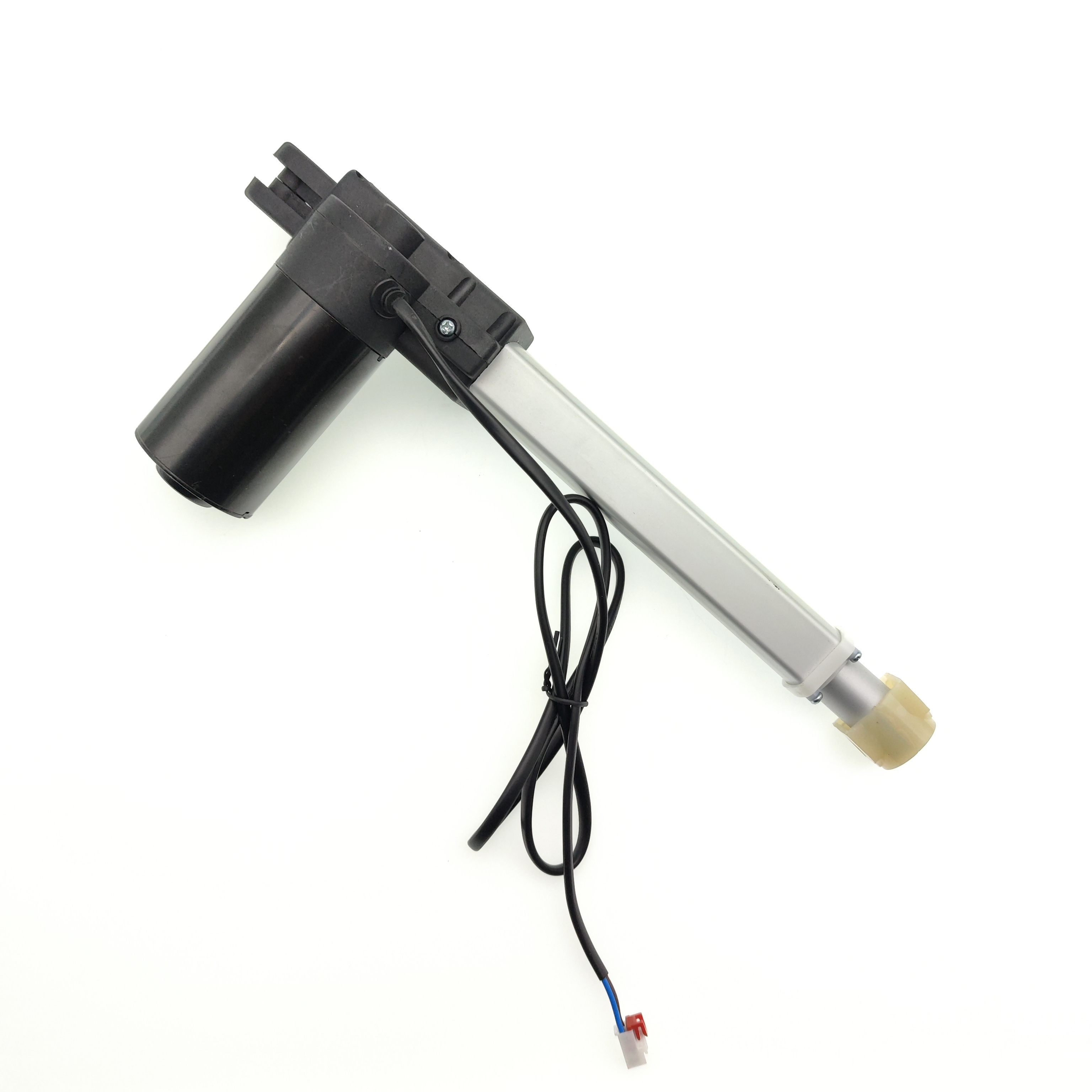

Iinear actuator
-
Product material:
-
Aluminium
-
Rated current:
-
≤0.8A
-
Speed:
-
6-7mm/s
-
load current:
-
≤2A
-
Load weight (kg):
-
120
-
Forming length:
-
customized
Quick Details
-
Speed(RPM):
-
custom
-
Continuous Current(A):
-
custom
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
hengsheng
-
Model Number:
-
300-180S1
-
Torque:
-
customized
-
Model:
-
300-180S1
-
Structure:
-
Permanent magnet type
-
Product Name:
-
Iinear actuator
-
Product material:
-
Aluminium
-
Rated current:
-
≤0.8A
-
Speed:
-
6-7mm/s
-
load current:
-
≤2A
-
Load weight (kg):
-
120
-
Forming length:
-
customized
Product Description
|
Place of Origin
|
China Fujian
|
|
certificate
|
CE ROHS
|
|
Brand Name
|
hengsheng
|
|
Model
|
300-180S1
|
|
Structure
|
Permanent magnet type
|
|
Product Name
|
Iinear actuator
|
|
Product material
|
Aluminium
|
|
Rated current
|
≤0.8A
|
|
Speed
|
6-7mm/s
|
|
load current
|
≤2A
|
|
Load weight (kg)
|
120
|
|
Forming length
|
customized
|
|
Duty cycle
|
20%
|
|
noise level
|
≤55db
|
|
Limit switch
|
built-in
|
|
Minimum installation distance
|
300mm-180mm
|
|
Operating temperature
|
30 ℃ ~ + 65 ℃
|
|
Dynamic load force (N)
|
1000N
|
2000N
|
3000N
|
6000N
|
||
|
No load speed (mm/s)
|
25
|
15
|
10
|
5
|
||
|
Full load speed (mm/s)
|
24
|
16
|
8
|
4
|
||
|
Voltage (VDC)
|
12V/24VDC
|
|
|
|
||
