- Product Details
- {{item.text}}
Quick Details
-
Power Source:
-
Electric
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
beyok
-
Model Number:
-
FQM-517
-
Suitable for:
-
widely used
-
Material:
-
Plastic
-
Color:
-
black
Quick Details
-
After-sales Service Provided:
-
Free spare parts, Return and Replacement
-
Warranty:
-
1 Year
-
Application:
-
Car, Hotel, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
beyok
-
Model Number:
-
FQM-517
-
Suitable for:
-
widely used
-
Material:
-
Plastic
-
Color:
-
black
Products Description

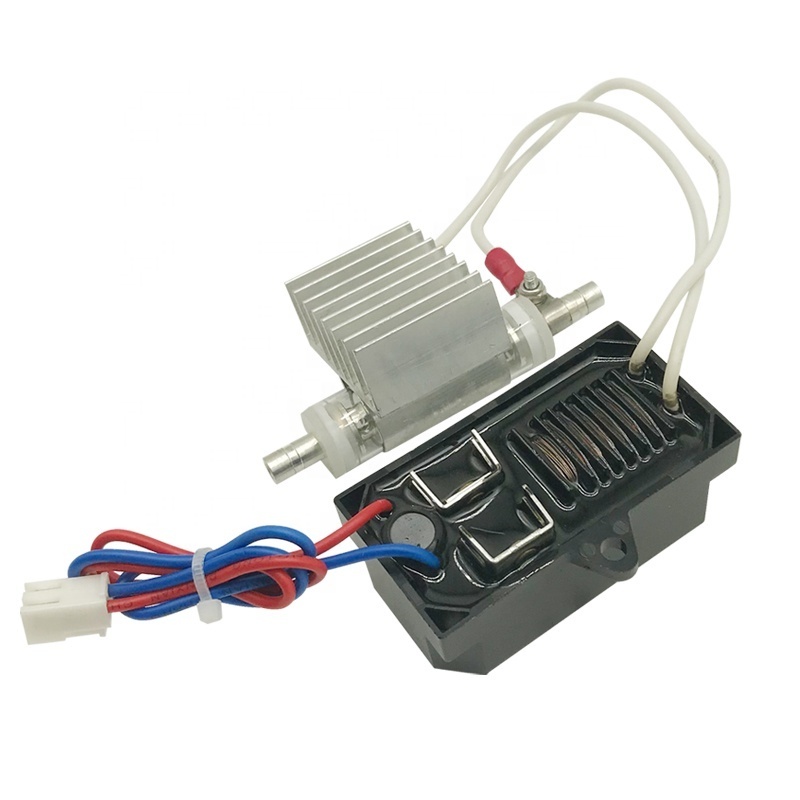

The FQM-series of BEYOK ozone generator cells use ozone core discharge of invention patent, including the fission design of ozone generator tube and ozone driving circuit, they can provide stable and efficient ozone output, easy to install and maintain.
Features
Benefits
* High efficient broad-spectrum sterilization
* Without ozone residual and secondary pollution
* Low rate of ozone decay
* Good quality and high efficient performance
* one unit with driving circuit, ozone generator tube
* connect with air dryer through air inlet to increase ozone output
* Widely used in various applications
Application
* Water: washing machine, dishwasher, water machine, water purification machines, etc
* Air: air purifier, disinfection cabinet, refrigerator, dryer,wardrobe, beauty equipment, etc
About BEYOKozone
* Own more than 20 years' experiences
* Get more than 100 patents
* Covers an area of 1.3 hectares
* Located near Shanghai, good transportation
* ISO9001/14001/45001 systems
* 1 million annual production capacity
* Have professional R&D teams
* Support OEM/ODM
Parameters
|
Model:
|
FQM-517
|
FQM-700
|
FQM-800H
|
FQM-815H
|
|||
|
Ozone Output:
|
300 mg/h
|
200-300 mg/h
|
300-500 mg/h
|
400-800 mg/h
|
|||
|
Generating Method:
|
Corona Discharge
|
|
|
|
|||
|
Voltage:
|
AC220V-DC12V
|
DC12V; Customized AC220V-AC110V
|
|
|
|||
|
Power:
|
5W
|
6W
|
12W
|
30W
|
|||
|
Cooling:
|
Air cooling with external fan
|
|
|
|
|||
|
Feed gas:
|
External air or oxygen
|
|
|
|
|||
|
Air flow:
|
2-5 L/min
|
1-5 L/min
|
1-5 L/min
|
5-10 L/min
|
|||
|
Oxygen flow:
|
0.5-1 L/min
|
0.5-1 L/min
|
0.5-1 L/min
|
1-2 L/min
|
|||
|
Air outlet:
|
Ф6 mm pagoda joint
|
|
|
|
|||
|
Shell material:
|
Flame retardant plastics
|
|
|
|
|||
|
Circuit dim.:
|
66*34*24 mm
|
63*52*35 mm
|
63*52*35 mm
|
145*56*46 mm
|
|||
|
Ozone tube dim.:
|
30*35*78 mm
|
Ф31*88 mm
|
40*38*88 mm
|
40*38*150 mm
|
|||
|
Net weight:
|
- kg
|
- kg
|
- kg
|
- kg
|
|||
Product Application
