Quick Details
-
Brand Name:
-
Manorshi
-
Theory:
-
ultrasonic, Ultrasonic Sensor
-
Description:
-
Ultrasonic sensor
-
Output:
-
Digital Sensor
-
Resonant frequency:
-
975±30KHZ(PV520A)
-
Resonant impedance:
-
≤300Ω
-
Static capacitance:
-
1000PF±20%
-
Max.Input Voltage:
-
500Vp-p
-
Dimension:
-
21mm
-
RoHS:
-
yes
Quick Details
-
Usage:
-
measure distance, Level Sensor
-
Model Number:
-
MSW-S211000H10TR-W400
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Manorshi
-
Theory:
-
ultrasonic, Ultrasonic Sensor
-
Description:
-
Ultrasonic sensor
-
Output:
-
Digital Sensor
-
Resonant frequency:
-
975±30KHZ(PV520A)
-
Resonant impedance:
-
≤300Ω
-
Static capacitance:
-
1000PF±20%
-
Max.Input Voltage:
-
500Vp-p
-
Dimension:
-
21mm
-
RoHS:
-
yes
|
Item
|
Value
|
|
Using method
|
Transmitter and Receiver
|
|
Center frequency
|
975±30KHz
|
|
Resonance impedance（R0）
|
<110Ω
|
|
Static capacitance（CP）
|
600±20%pF
|
|
Capacitance
|
2800±20% pF(at 1.0KHz)
|
|
Receiving sensitivity
|
>280mv（Half Wave）
|
|
Operating temperature
|
<90°C
|
|
Operating Voltage
|
3V
|
|
Beam Angle
|
5-10°
|
|
Protection level
|
IP68
|
|
Voltage withstand
|
﹥2.6MPa
|
|
Lead mode
|
Sensor Center
|
|
Sealing mode
|
Epoxy
|
|
Mounting dimensions
|
Φ21mm
|
|
Shell material
|
Macromolecule material+Stainless steel cap
|

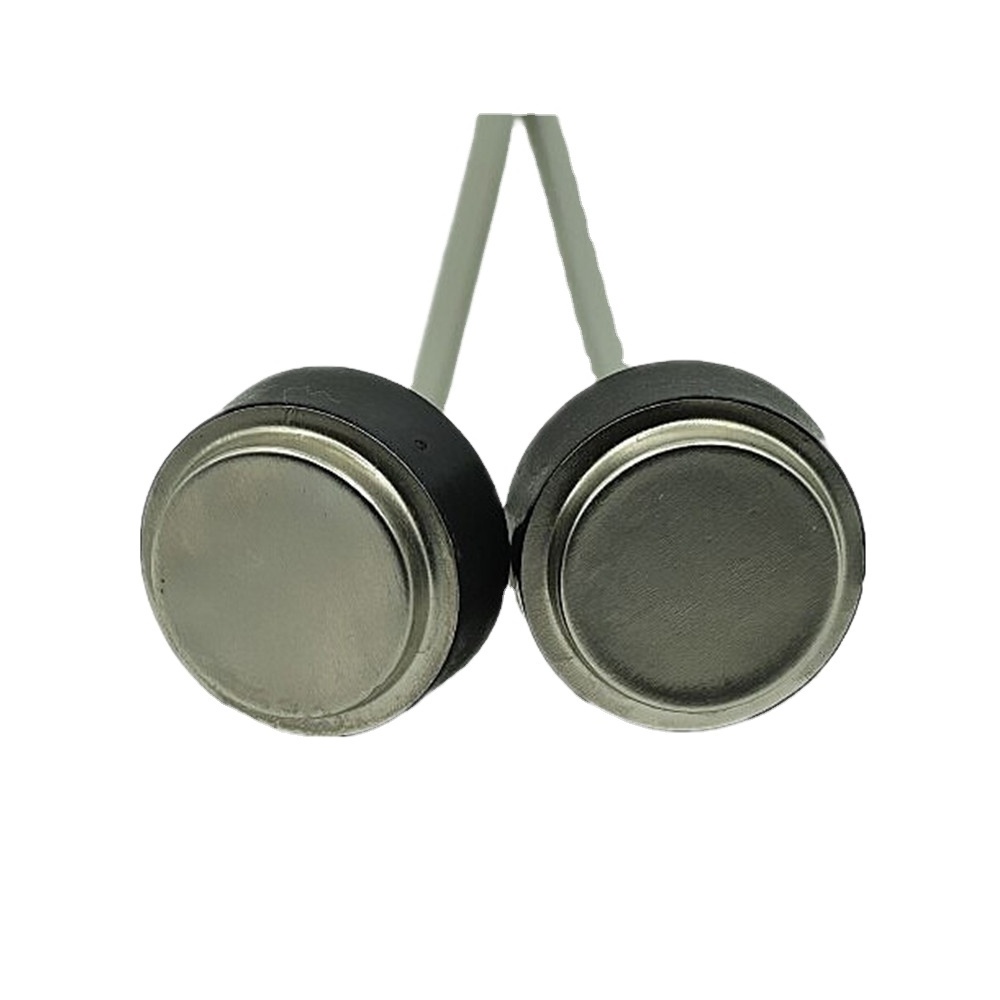

The ultrasonic transducer utilizes the piezoelectric effect to convert electricity to mechanical vibration and form an ultrasonic wave.
The backs of these transducers are completely sealed with resin, protecting them from exposure to the environment.
The backs of these transducers are completely sealed with resin, protecting them from exposure to the environment.
Our company manufactures a comprehensive line of audio indicators, audio transducers and ultrasonic components.
By always providing customers with products and services of superior quality, our company has rapidly become one of the major suppliers of sounding elements in the world.
|
Q: Could I have samples for testing first?
|
|
|
|
|
||||
|
A：Yes, definitely you can. After confirming your requirements, we will quote and discuss with you about the samples.
|
|
|
|
|
||||
|
Q: What's the minimum order quantity?
|
|
|
|
|
||||
|
A: Our minimum order quantity depends on products. Please email us to check.
|
|
|
|
|
||||
|
Q: Could you customize the products according to my requirements?
|
|
|
|
|
||||
|
A: Yes. We could customize the products for you.
|
|
|
|
|
||||
|
Q: What's your lead time?
|
|
|
|
|
||||
|
A: Generally speaking, sample order 3-7 working days; bulk order 15-25 working days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders.
|
|
|
|
|
||||
|
Q: Could you send me a price list?
|
|
|
|
|
||||
|
A: We quote according to the products and the quantity you need. Please contact salesman, and let them know your requirements, they will provide the price list for you.
|
|
|
|
|
||||
|
Q: Could we have our logo or company name to be printed on your products or packages?
|
|
|
|
|
||||
|
A: Sure. Your logo could be printed on your products by different ways.
|
|
|
|
|
||||
|
Q: How does your factory do regarding quality control?
|
|
|
|
|
||||
|
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of production.
|
|
|
|
|
||||
|
Every product will be fully assembled and carefully tested before packed.
|
|
|
|
|
||||
