Quick Details
-
Car Make:
-
tricycle
-
Warranty:
-
8 Months
-
Car Fitment:
-
Adly Moto
-
Weight:
-
38.5kg
-
AxleTrack:
-
352
-
Height:
-
251
Quick Details
-
OE NO.:
-
NO
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
EB02
-
Car Make:
-
tricycle
-
Warranty:
-
8 Months
-
Car Fitment:
-
Adly Moto
-
Weight:
-
38.5kg
-
AxleTrack:
-
352
-
Height:
-
251
Products Description
Product Features

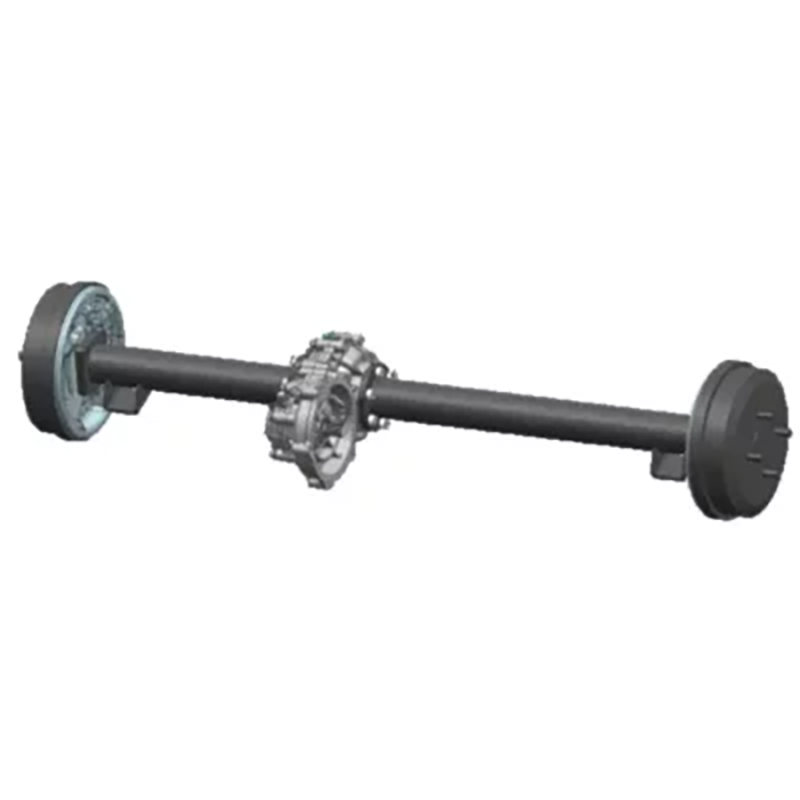

EB02 Rear Axle Assembly is currently used for the rear axle of 3.5KW electric tricycles
|
Product Performance
|
|
|
||
|
Max Input Torque
|
T max
|
22N.m
|
||
|
Max Input Rotation Rate
|
n max
|
4500r/min
|
||
|
Centre.to-centre Spacing
|
A
|
136mm
|
||
|
Gear Ratio
|
U
|
10.088
|
||
|
Input & Output Spline Parameters
|
|
|
|
|||
|
Tooth system
|
|
Input internal spline
|
Output end internal spline
|
|||
|
modulus
|
m
|
1
|
1
|
|||
|
number of teeth
|
z
|
18
|
25
|
|||
|
Pressure angle
|
a
|
20°
|
45°
|
|||
|
the modification coefficient
|
x
|
0.8
|
0.1
|
|||
|
Over Dimension & Weight
|
|
|
|
Weight(kg)
|
38.5
|
|
|
Length
|
1302
|
|
|
AxleTrack
|
352
|
|
|
Height
|
251
|
|
|
