Quick Details
-
Voltage:
-
Manual
-
Dimension(L*W*H):
-
310*290*110mm
-
Weight:
-
2.04 KG
-
Marketing Type:
-
New Product 2022
-
Product Name:
-
Hand operated small olive oil press hand operated oil press
-
Raw material:
-
Walnut Peanut and other oil seeds
-
Function:
-
Oil Mill Making Pressing Extracting Machine
-
Application:
-
Edible Oil Production
-
Advantage:
-
Energy Saving Low Residual
-
Keyword:
-
Soybean Oil Solvent Extraction Equipment
-
Feature:
-
High Oil Yield Efficiency
-
Used for:
-
Home use oil press
-
Capacity:
-
3-5kg/h
-
Application range:
-
Competitive Mini Oil Press Machine
Quick Details
-
Max Capacity:
-
3-5 kg/h
-
Place of Origin:
-
Henan China
-
Brand Name:
-
PSO
-
Voltage:
-
Manual
-
Dimension(L*W*H):
-
310*290*110mm
-
Weight:
-
2.04 KG
-
Marketing Type:
-
New Product 2022
-
Product Name:
-
Hand operated small olive oil press hand operated oil press
-
Raw material:
-
Walnut Peanut and other oil seeds
-
Function:
-
Oil Mill Making Pressing Extracting Machine
-
Application:
-
Edible Oil Production
-
Advantage:
-
Energy Saving Low Residual
-
Keyword:
-
Soybean Oil Solvent Extraction Equipment
-
Feature:
-
High Oil Yield Efficiency
-
Used for:
-
Home use oil press
-
Capacity:
-
3-5kg/h
-
Application range:
-
Competitive Mini Oil Press Machine
Recommend Products

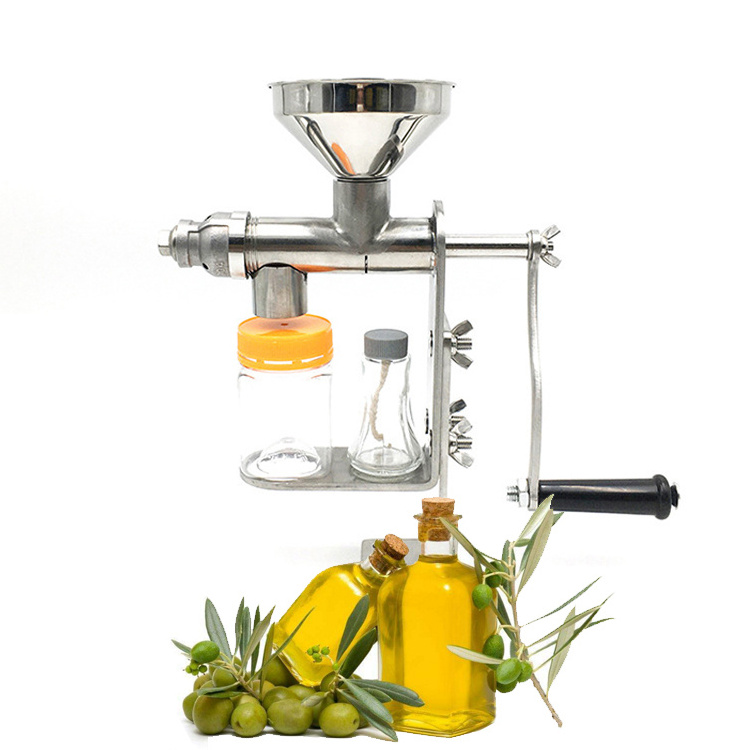

Hand operated small olive oil press hand operated oil press
Application
This is a new manual oil press machine that consists of four main parts: frame, press cage, handle and
heating part. It is easy to operate, high oil yield and extensive use.
Operation
1. Before operation please fix the frame and make sure crank can be turned freely.
2. Lubricate washer with edible oil and insert on screw shaft from the small end.
3. Insert screw shaft in press cage.
4. Screw on press cage cap and screw on terminal adjustment bolt.
5. Attach crank arm to screw shaft and tighten the bolt.
6. Fill 80% fuel to the lamp bottle (kerosene or alcohol). Pass a 15cm wick through the washer. Leave 0.5cm of wick outside and put the longer end in the fuel bottle. Place washer at the bottle mouth. Place the lamp under press cage. Secure the lamp with rubber band.
heating part. It is easy to operate, high oil yield and extensive use.
Operation
1. Before operation please fix the frame and make sure crank can be turned freely.
2. Lubricate washer with edible oil and insert on screw shaft from the small end.
3. Insert screw shaft in press cage.
4. Screw on press cage cap and screw on terminal adjustment bolt.
5. Attach crank arm to screw shaft and tighten the bolt.
6. Fill 80% fuel to the lamp bottle (kerosene or alcohol). Pass a 15cm wick through the washer. Leave 0.5cm of wick outside and put the longer end in the fuel bottle. Place washer at the bottle mouth. Place the lamp under press cage. Secure the lamp with rubber band.
Our Advantages
1. Make sure no impurities in the material before pressing.
2. At the beginning of pressing, oil flowing from the terminal adjustment bolt is normal.
3. Loose the terminal adjustment bolt if the discharged cake is too dry and crank turning resistance is too big
4. Tighten the terminal adjustment bolt if the discharged cake contains too much oil residual.
5. Clean the oil press immediately after operation. Otherwise residual in the machine will get hard and affect next operation.
3. Loose the terminal adjustment bolt if the discharged cake is too dry and crank turning resistance is too big
4. Tighten the terminal adjustment bolt if the discharged cake contains too much oil residual.
5. Clean the oil press immediately after operation. Otherwise residual in the machine will get hard and affect next operation.
Specification
|
Model
|
AY-2403
|
|
Capacity
|
3-5kg/h
|
|
Material
|
304SS
|
|
Dimension
|
310*290*110mm
|
|
Weight
|
2.04kg
|
|
Suitable for
|
Peanut, walnut, sunflower seeds, etc.
|
