Quick Details
-
Application:
-
woodcutting
-
Weight (KG):
-
18502750 KG
-
Max.Working Width(mm):
-
710mm
-
Wood Length:
-
can be adjusted
-
Motor Power:
-
15kw
-
Thickness:
-
up to 250mm
-
Blade size:
-
4575*34*0.9mm
-
Wood width:
-
up to 350mm
-
Control system:
-
button
-
Max sawing width:
-
800mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sawmill World
-
Voltage:
-
15kw
-
Application:
-
woodcutting
-
Weight (KG):
-
18502750 KG
-
Max.Working Width(mm):
-
710mm
-
Wood Length:
-
can be adjusted
-
Motor Power:
-
15kw
-
Thickness:
-
up to 250mm
-
Blade size:
-
4575*34*0.9mm
-
Wood width:
-
up to 350mm
-
Control system:
-
button
-
Max sawing width:
-
800mm
Contact information: Cassie Wang
Whatsapp/Wechat/mobile:86 15266018163
Facebook: Binyan wang
Email: cassie@sawmillworld.com
Product Description
splint Horizontal Resaw
|
Model
|
SHJM-400
|
SHJM-650
|
SHJM-800
|
||
|
Saw Wheel Diameter
|
600MM
|
700MM
|
700MM
|
||
|
Max Sawing Width
|
400MM
|
650MM
|
800MM
|
||
|
Blade Length*Width
|
4330*75
|
4870*75
|
5370*75
|
||
|
Max Processing Thickness
|
200MM
|
|
|
||
|
Max Sawing Height
|
110 MM
|
|
|
||
|
Min Sawing Thickness
|
2 MM
|
|
|
||
|
Feeding Speed
|
0.1-30 Meters/Minute
|
|
|
||
|
Motor Power
|
15KW
|
18.5KW
|
22KW
|
||
|
Feeding Motor
|
0.75KW
|
0.75KW
|
1.5KW
|
||
|
Machine Weight
|
1850KG
|
2550KG
|
2750KG
|
||

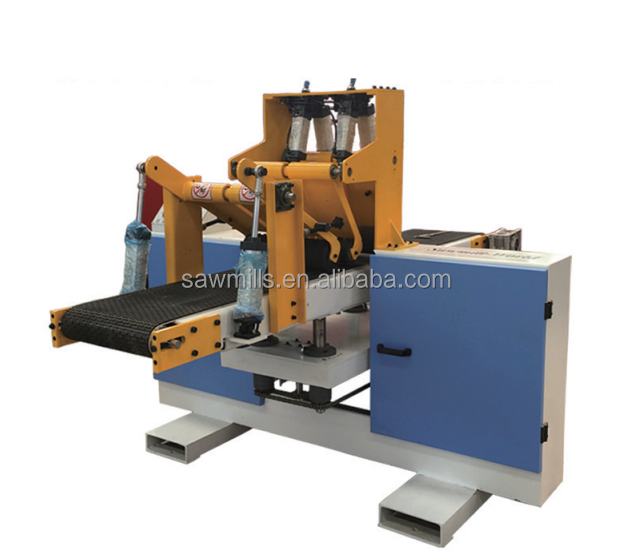

MJH350 Horizontal Resaw
|
Max Processing Width
|
350mm
|
|
Max Processing Thickness
|
250mm
|
|
Production board thickness
|
2-160mm
|
|
working desk size
|
2400*355mm
|
|
Saw Wheel Diameter
|
710mm
|
|
Feeding Speed
|
0.1-30 Meters/Minute
|
|
Main Motor Power
|
15KW
|
|
Blade Size
|
4575*34*0.9mm
|
|
Price
|
7750USD
|
Spare Parts
|
1
|
6210 NACHI Bearing
|
9
|
16
|
144
|
|
|
2
|
6205 Bearing
|
1.2
|
20
|
24
|
|
|
3
|
Air Gauge
|
7.5
|
2
|
15
|
|
|
4
|
Air Cylinder 50*125-75
|
14
|
6
|
84
|
|
|
5
|
Rectify Air Cylinder
|
6
|
2
|
12
|
|
|
6
|
Air Cylinder Joint Black
|
10 Each
|
|
10
|
|
|
7
|
Air Cylinder Joint
Copper |
5 Each
|
|
|
|
|
8
|
Total
|
|
|
289
|
|
