Quick Details
-
Brand Name:
-
CIS CO
-
Model Number:
-
CTS-SX10N-K9
-
Camera Zoom:
-
5x zoom (2.65 optical/digital zoom)
-
Field of View (H x V):
-
83 x 51°
-
Maximum Lens Aperture:
-
f/2.1
-
Maximum Bandwidth:
-
Up to 3 Mbps
-
PoE:
-
Compatible
-
Power Consumption (Maximum):
-
12 W
-
Resolution:
-
1080p
-
Camera:
-
PTZ
-
Room Size:
-
Small Room
-
Microphone:
-
Internal
Quick Details
-
Type:
-
Video Conference System
-
Function:
-
Voting
-
Place of Origin:
-
China
-
Brand Name:
-
CIS CO
-
Model Number:
-
CTS-SX10N-K9
-
Camera Zoom:
-
5x zoom (2.65 optical/digital zoom)
-
Field of View (H x V):
-
83 x 51°
-
Maximum Lens Aperture:
-
f/2.1
-
Maximum Bandwidth:
-
Up to 3 Mbps
-
PoE:
-
Compatible
-
Power Consumption (Maximum):
-
12 W
-
Resolution:
-
1080p
-
Camera:
-
PTZ
-
Room Size:
-
Small Room
-
Microphone:
-
Internal
Product Description
Product Overview

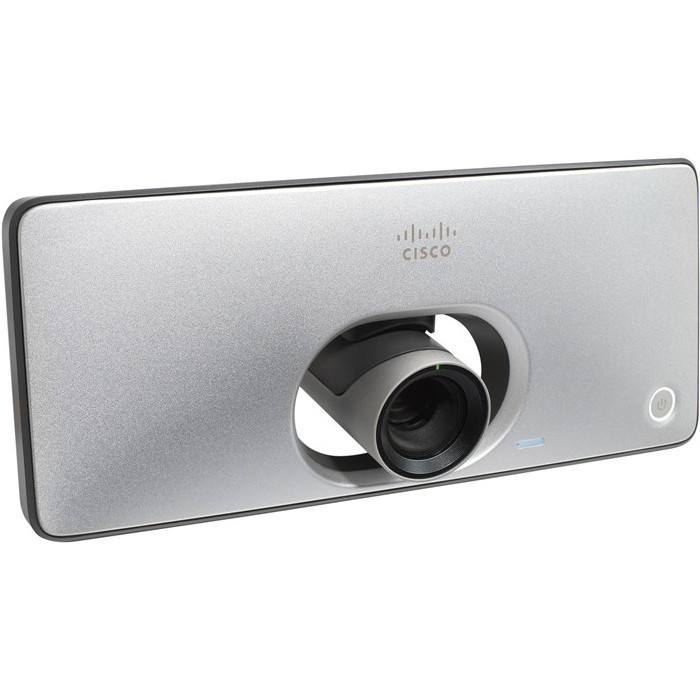

Cisco CTS-SX10N-K9 Quick Set Video Conferencing Device Package Contents:
* SX10N codec
* Wall mount
* TRC6 remote control
* Network and HDMI cables
* SX10N codec
* Wall mount
* TRC6 remote control
* Network and HDMI cables
|
Camera Zoom
|
5x zoom (2.65 optical/digital zoom)
|
|
Pan & Tilt Range
|
+5 to -25° tilt
+30 to -30° pan |
|
Field of View (H x V)
|
83 x 51°
|
|
Maximum Lens Aperture
|
f/2.1
|
|
Camera Controls
|
Focus: manual/automatic
Iris: manual/automatic White Balance: manual/automatic Image Flipping: automatic when upside-down |
|
User Interface
|
TRC6 remote control
On-screen GUI Cisco Telepresence Touch 10 (optional, not included) iOS and Android devices (using optional Cisco Intelligent Proximity app) |
|
Maximum Bandwidth
|
Up to 3 Mbps
|
|
Minimum Bandwidth
|
1080p30 from 1472 kbps
720p30 from 768 kbps |
|
Video Standards
|
H.263, H.263+, and H.264
|
|
Video Inputs & Formats
|
2 Inputs:
HDMI or VGA (user-selectable) Supported Formats: 640x480 (VGA) 720x480 704x576 (4CIF) 800x600 (SVGA) 848x480 1024x768 (XGA) 1152x864 (XGA+) 1280x720 (720p) 1280x768 (WXGA) 1920 x 1080@30 (HD1080p) EDID (Extended Display Identification Data) |
|
Video Output Formats
|
1080p60
VESA Monitor Power Management Extended Display Identification Data (EDID) |
|
Resolution-Live Video
|
(Decode only):
176 x 144@30 (QCIF) (Encode and Decode): 352 x 288@30 (CIF) 512 x 288@30 (w288p) 576 x 448@30 (448p) 768 x 448@30 (w448p) 704 x 576@30 (4CIF) 1024 x 576@30 (w576p) 640 x 480@30 (VGA) 800 x 600@30 (SVGA) 1024 x 768@30 (XGA) 1280 x 768@30 (WXGA) 1280 x 720@30 (HD720p) 1920 x 1080@30 (HD1080p) |
|
Audio Standards
|
64 kbps MPEG4 AAC-LD
OPUS G.722, G.722.1, G.711mu, G.711a, G.729ab, and G.729 |
|
Audio Inputs
|
Internal microphone
External microphone:4-pin mini-jack HDMI audio-in |
|
Audio Outputs
|
Line Out: 4-pin mini-jack
HDMI (digital main audio) |
|
Dual Stream
|
H.239 (H.323) dual stream (CE8.2 or later)
BFCP (SIP) dual stream Resolution up to 1080p5 (CE8.0 or later) |
|
Multipoint Technology
|
Cisco Ad-Hoc Conferencing
(requires Cisco UCM, Cisco TelePresence Server, and Cisco TelePresence Conductor) |
|
Protocols
|
H.323, SIP
H.323 (CE8.2 or later) |
|
Connectivity Interfaces
|
1 x PoE-enabled LAN connector (RJ-45) 100 Mb
1 x USB port (for future usage) 1 x Micro-USB port (for debugging) |
|
PoE
|
Compatible
|
|
Power Input
|
100 - 240 VAC, 50/60 Hz
|
|
Power Consumption (Maximum)
|
12 W
|
|
Operating Temperature & Humidity
|
32 to 104°F (0 to 40°C) at 10-90% relative humidity (non-condensing)
|
|
Storage Temperature & Humidity
|
-4 to 140°F (-20 to 60°C) at 10-90% relative humidity (non-condensing)
|
|
Dimensions (WxHxD)
|
SX10 Unit: 10.8 x 4.6 x 3.6" (27.4 x 11.7 x 9.1 cm)
|
|
Weight
|
SX10 Unit: 2 lb (0.9 kg)
|
