Quick Details
-
Warranty:
-
2year, 2Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Panda
-
Model Number:
-
DX30GF~DX300GF
-
Speed:
-
1500 rmp / 1800 rmp
-
Weight:
-
650kg
-
Product name:
-
Panda
-
Diesel engine:
-
Ricardo Engine
-
Alternator brand:
-
Marathon/Mecc alte/Stamford/Hengsheng
-
Certificate:
-
CE
-
Cooling system:
-
Closed water-cooling system
-
Connection mode:
-
Three-phase four-wire system,series Y
-
name:
-
power Diesel
Quick Details
-
Rated Voltage:
-
110V-480V
-
Rated Current:
-
20A to 7000A
-
Frequency:
-
50 Hz/ 60 Hz
-
Warranty:
-
2year, 2Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Panda
-
Model Number:
-
DX30GF~DX300GF
-
Speed:
-
1500 rmp / 1800 rmp
-
Weight:
-
650kg
-
Product name:
-
Panda
-
Diesel engine:
-
Ricardo Engine
-
Alternator brand:
-
Marathon/Mecc alte/Stamford/Hengsheng
-
Certificate:
-
CE
-
Cooling system:
-
Closed water-cooling system
-
Connection mode:
-
Three-phase four-wire system,series Y
-
name:
-
power Diesel
Products Description
Why choose us?
1.One-stop purchasing service, 24 hours online reply
2.5000 generator sets are in stock, confirmed and shipped within 48 hours
Click the link to contact me and get 10% off
Product Paramenters
|
Technical Parameters Of Generator Equipment:
|
|
|
|
Model number
|

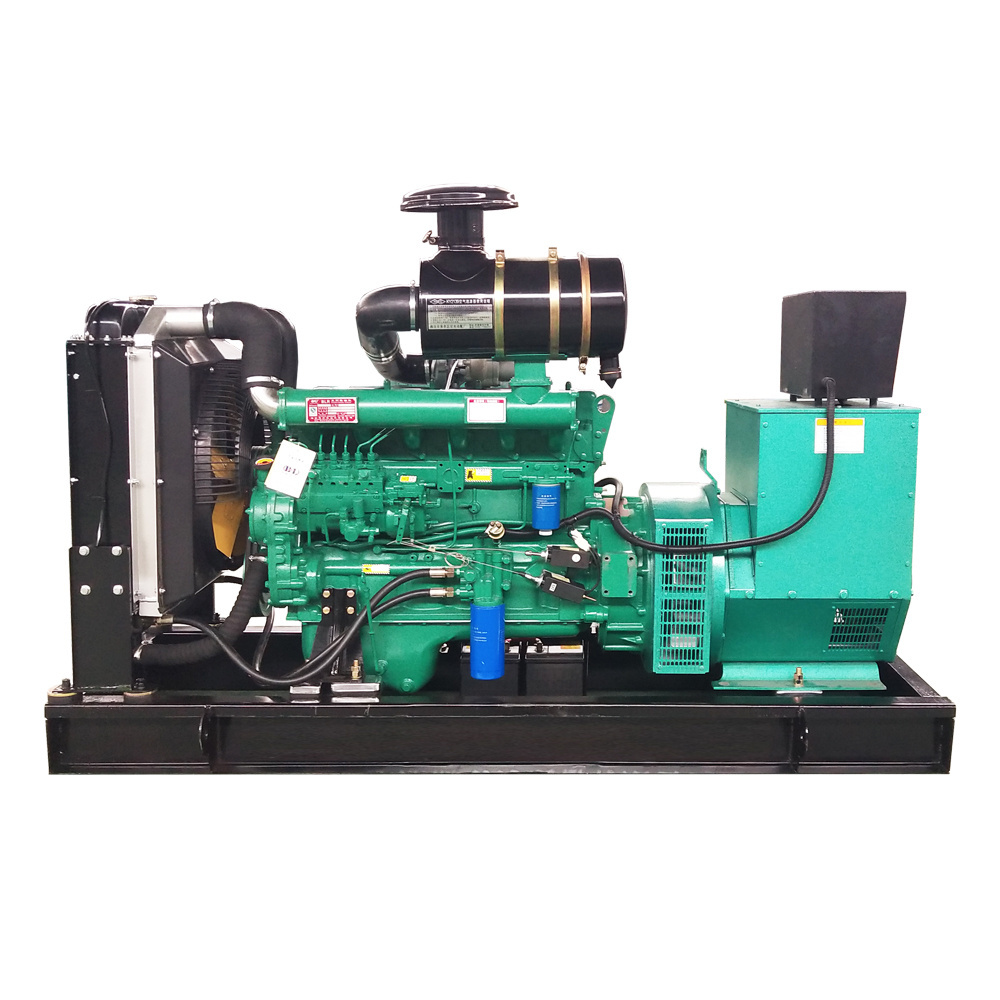

Open and Silent Type Diesel Generator Set
|
|
|
Output power
|
20kw to 1200kw
|
|
|
Power factor (PF)
|
COSΦ=0.8（lag）
|
|
|
Output voltage(OV）
|
400V/440V/230V/220V/110V
|
|
|
Output current
|
36A--1800A
|
|
|
Normal frequency
|
50HZ/60HZ
|
|
|
Rated speed
|
1500rpm/1800rpm
|
|
|
Diesel oil type
|
(standard) 0 × light diesel (normal temperature)
|
|
|
Steady state voltage regulation rate (%)
|
≤±1
|
|
|
Voltage fluctuation rate(%)
|
≤±0.5
|
|
|
Transient voltage regulation(%)
|
＋20～－15
|
|
|
Voltage settling time(S)
|
≤1
|
|
|
Steady-state frequency control
|
≤±1
|
|
|
Frequency jitter(%)
|
≤±0.5
|
|
|
Transient frequency fluctuation(%)
|
＋10～－7
|
|
|
Frequency stabilization time(s)
|
≤3
|
|
|
Fuel consumption(MCR)
|
198g/kW·h
|
|
|
Noise(LP7M)
|
105/75dB（A）
|
|
①The fuel consumption rate and lubricating oil consumption rate are superior to the domestic similar products
②Fast delivery time,3-5days after receiving the deposit，except special models
③WarrantyTime:2year or 2000hour whichever reaches first
④Every generatorset is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and
proving of all control and alarm, safety shut-down functions
proving of all control and alarm, safety shut-down functions
