Quick Details
-
Max. Lifting Height:
-
5.77~8.05M
-
Span:
-
Max. length 5.01~7.19M
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHENZHOU
-
Weight (KG):
-
1800 kg
-
Valid radius:
-
4~6M
-
Working system:
-
A3
-
Color:
-
Clients' Requirments
-
Control method:
-
Remote Controller
-
Power Source:
-
3 Phase 380V 50hz
-
Lifting speed:
-
8/0.8 m/min
-
Slewing angle:
-
180,270,360,any angle
-
Slewing speed:
-
0.5~1 r/min
-
Lifting mechanism:
-
Electric hoist
-
Main electrical parts:
-
according to customer's needs
Quick Details
-
Application:
-
Lifting operation
-
Rated Loading Capacity:
-
3T~5T
-
Rated Lifting Moment:
-
2.5~200KN
-
Max. Lifting Height:
-
5.77~8.05M
-
Span:
-
Max. length 5.01~7.19M
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHENZHOU
-
Weight (KG):
-
1800 kg
-
Valid radius:
-
4~6M
-
Working system:
-
A3
-
Color:
-
Clients' Requirments
-
Control method:
-
Remote Controller
-
Power Source:
-
3 Phase 380V 50hz
-
Lifting speed:
-
8/0.8 m/min
-
Slewing angle:
-
180,270,360,any angle
-
Slewing speed:
-
0.5~1 r/min
-
Lifting mechanism:
-
Electric hoist
-
Main electrical parts:
-
according to customer's needs
Environmental conditions:
◐
The crane power supply is three-phase ac, the rated voltage is 380V and the rated power is 50HZ.
◐Flammable, explosive and corrosive gases are not allowed in the working environment of the crane.
◐Crane is nor allowed to carry molten metal, toxic substances and inflammable and explosive goods.
|

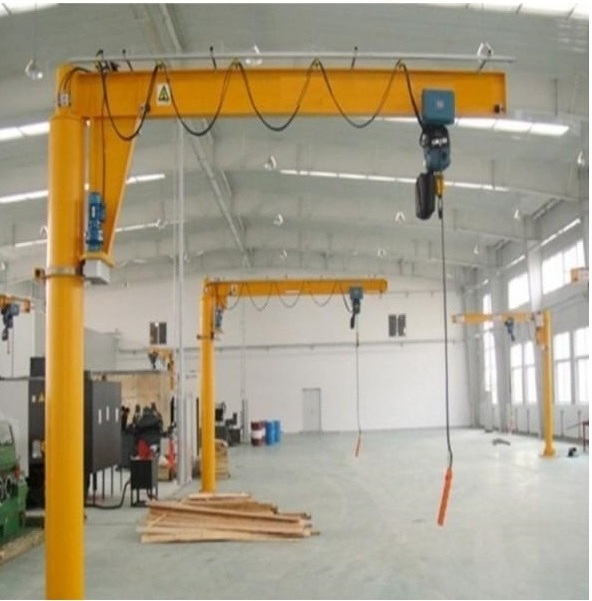

BZ Type Fixed Pillar JIB Crane 180-360 Degree Slewing
|
|
|
|
|
||||
|
BZ-type swinging boom crane is a small and medium sized crane which has been developed in recent years
|
|
|
|
|
||||
|
Its structure is unique. And it is reliable, efficient, energy-saving, time-saving, labor-saving and flexible, and can operate
freely in 3D space |
|
|
|
|
||||
|
Especially in the short distance, the heavy lifting of the situation can show more than other conventional crane equipment unique advantages
|
|
|
|
|
||||
|
It is widely used in workshop. warehouse, wharf and other fixed places
|
|
|
|
|
||||
Production process
Packing & Delivery
Packing
▷The accessories we will use PE film for packing or according to customers' special request.
▷Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
▷The normal package is wooden box(Size: L*W*H), and the wooden box will be fumigated.
▷Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
▷The normal package is wooden box(Size: L*W*H), and the wooden box will be fumigated.
Delivery
▷The transport of products is usually carried in containers by sea.
▷Transport ways are based on reducing cost & keep safety.
▷Transport ways are based on reducing cost & keep safety.
Pre-Sales Service
▷ Inquiry and consulting support.
▷Sample testing support.
▷View our factory.
After-Sales Service
▷ Training how to install the machine.
▷Training how to use the machine.
▷Engineers available to service machinery overseas.
▷Engineers available to service machinery overseas.
Shandong Shen Zhou Machinery Limited Company
is l founded in 1989, is the predecessor of Xintai City crane factory, restructuring in 2005. Over the years the company continued to introduce domestic and foreign advanced production technology, absorb the specialized, high-quality professionals, the company strong technical force, advanced process equipment, has a professional engineering and technical personnel, first-class installation team, excellent after sale service, and took the lead through the ISO9001 international quality system certification, with independent intellectual property rights and industrial property rights. With ten series over 60 varieties and various non-standard lifting equipment production capacity, product selling more than 30 domestic provinces and cities and more than 50 countries and regions.
1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your
country.
6. Safety device.
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your
country.
6. Safety device.
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
