Our Main Products Heavy Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price.
- Product Details
- {{item.text}}
Quick Details
-
Dimensions (L x W x H) (mm):
-
11200x2496x3370
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Car Towing Wrecker Truck
-
Chassis brand:
-
HOWO Chassis
-
Driving type:
-
LHD RHD
-
Other name:
-
Newest Breakdown Wrecker Truck
-
Type:
-
8*4 Recovery Truck
-
Name:
-
Road Block Removal Truck
-
Loading capacity:
-
30ton Wrecker Towing Truck
-
Engine:
-
WD615
-
Tires:
-
12.00R20
-
Driving model:
-
8*4 30ton Rotator Wrecker Truck
Quick Details
-
Emission Standard:
-
Euro 2
-
Condition:
-
New
-
Brand Name:
-
sinotruk
-
Dimensions (L x W x H) (mm):
-
11200x2496x3370
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Car Towing Wrecker Truck
-
Chassis brand:
-
HOWO Chassis
-
Driving type:
-
LHD RHD
-
Other name:
-
Newest Breakdown Wrecker Truck
-
Type:
-
8*4 Recovery Truck
-
Name:
-
Road Block Removal Truck
-
Loading capacity:
-
30ton Wrecker Towing Truck
-
Engine:
-
WD615
-
Tires:
-
12.00R20
-
Driving model:
-
8*4 30ton Rotator Wrecker Truck

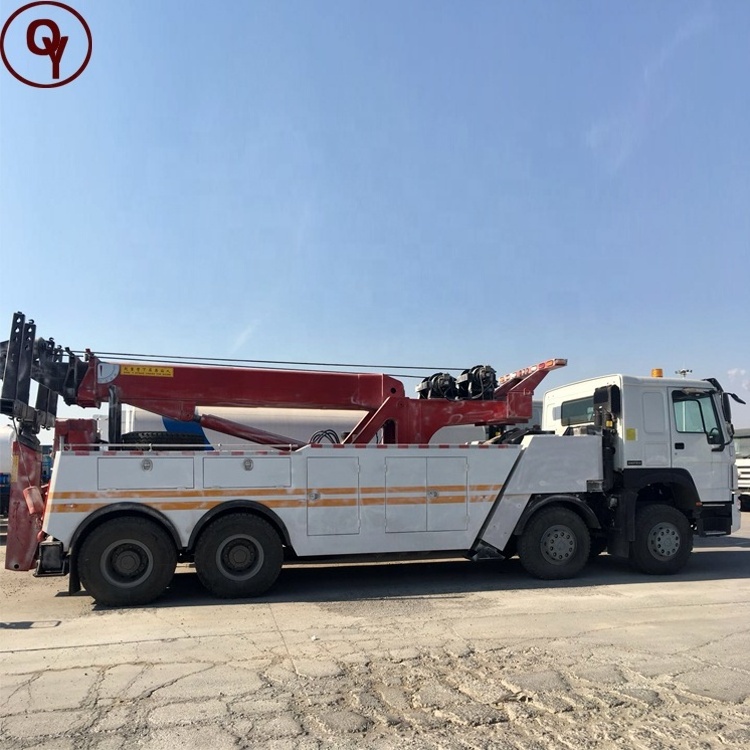

Sinotruk New Design
tow truck wrecker recovery truck
Product Description
Specification
|
SPECIFICATION FOR BOOM
|
|
|
|
|
||||
|
Max Lifting Capacity(kg)
|
|
20000
|
|
|
||||
|
Max. lifting height (mm)
|
|
6060
|
|
|
||||
|
Max. tilting angle of boom (°)
|
|
30
|
|
|
||||
|
Rating pulling force of winch(Ton)
|
|
20
|
|
|
||||
|
Quantity of winch (unit)
|
|
2
|
|
|
||||
|
SPECIFICATION FOR UNDERLIFT
|
|
|
|
|
||||
|
Max. lifting mass (kg)
|
|
20000
|
|
|
||||
|
Rating lifting mass (kg)
|
|
7500
|
|
|
||||
|
Rating lifting mass fully extended(kg)
|
|
4600
|
|
|
||||
|
Max effective length of underlift(mm)
|
|
3775
|
|
|
||||
|
Extension stroke(mm)
|
|
2090
|
|
|
||||
|
SPECIFICATION FOR CHASSIS
|
|
|
|
|
||||
|
Dimension(Lx W xH)(unloaded)(mm)
|
|
10370×2496×3250
|
|
|
||||
|
Approaching angle/Departure angle(°)
|
|
16/18
|
|
|
||||
|
Overhang(front/rear) (mm)
|
|
1500/1670
|
|
|
||||
|
Wheel base (mm)
|
|
5800+1400
|
|
|
||||
|
Max speed(km/h)
|
|
102
|
|
|
||||
|
Curb weight(kg)
|
|
19170
|
|
|
||||
|
Engine
|
Model
|
WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
|
|
|
||||
|
|
Fuel type
|
Diesel
|
|
|
||||
|
|
Power, max(kw/rpm)
|
371HP
|
|
|
||||
|
|
Emission
|
EUROII
|
|
|
||||
|
Fuel tanker capacity(L)
|
|
400L aluminum oil tank
|
|
|
||||
|
Transmission
|
|
Model
|
HW19710, 10 speeds forward and 2 reverse
|
|
||||
|
Brake system
|
|
Service brake
|
Dual circuit compressed air brake
|
|
||||
|
Steering system
|
|
Model
|
ZF8118
|
|
||||
|
Front axle
|
|
STR
|
|
|
||||
|
Rear axle
|
|
ST16
|
|
|
||||
|
Tire
|
|
12.00R20 (Radial Tyre)
|
|
|
||||
|
Electrical system
|
|
Battery
|
|
2X12V/165Ah
|
||||
|
|
|
Alternator
|
|
28V-1500kw
|
||||
|
|
|
Starter
|
|
7.5Kw/24V
|
||||
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3
working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Recommend Products
About Product Description
Wrecker truck is also called wrecker towing truck, flatbed tow truck, tow truck hydraulic, tow trucks wreckers, rotator tow truck,towing wrecker truck, road wrecker truck, wrecker truck towing truck, road wrecker, rotator wrecker, recovery wrecker, wrecker towtruck, recovery truck, rotator recovery truck, wrecker with crane, etc.
1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.
2. Application: Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments,
timely, fast clean-up accident, failure, illegal and other vehicles.
1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.
2. Application: Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments,
timely, fast clean-up accident, failure, illegal and other vehicles.
