Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Warranty:
-
2 years
-
Place of Origin:
-
China
-
Brand Name:
-
BIGLUX
-
Model Number:
-
HP4608G
-
Output Voltage (V):
-
AC120V-240V within inverter
-
Output Frequency:
-
50-60HZ
-
Solar Panel:
-
8pcs 460w, total 3680W
-
Battery:
-
16pcs 200Ah, DC12V, 38400Wh
-
Inverter:
-
8kW/8kVA,50/60 Hz,Pure Sine Wave
-
Controller:
-
80A MPPT, 95% Efficiency
-
Input plug:
-
1*AC240V / AC120V
-
Output socket:
-
3*AC240V / AC120V
-
Trailer:
-
US/EU/AU Standard, Ball Hitch,Double Axle,Manual Outrigger
-
Charing time:
-
8.8 hours with good sunshine
-
Running time:
-
19.2 hours for 1.6 kW with a full charge
-
Operation size:
-
4700*6500*2250mm
Quick Details
-
Application:
-
Industrial, construction
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Warranty:
-
2 years
-
Place of Origin:
-
China
-
Brand Name:
-
BIGLUX
-
Model Number:
-
HP4608G
-
Output Voltage (V):
-
AC120V-240V within inverter
-
Output Frequency:
-
50-60HZ
-
Solar Panel:
-
8pcs 460w, total 3680W
-
Battery:
-
16pcs 200Ah, DC12V, 38400Wh
-
Inverter:
-
8kW/8kVA,50/60 Hz,Pure Sine Wave
-
Controller:
-
80A MPPT, 95% Efficiency
-
Input plug:
-
1*AC240V / AC120V
-
Output socket:
-
3*AC240V / AC120V
-
Trailer:
-
US/EU/AU Standard, Ball Hitch,Double Axle,Manual Outrigger
-
Charing time:
-
8.8 hours with good sunshine
-
Running time:
-
19.2 hours for 1.6 kW with a full charge
-
Operation size:
-
4700*6500*2250mm
Product Description

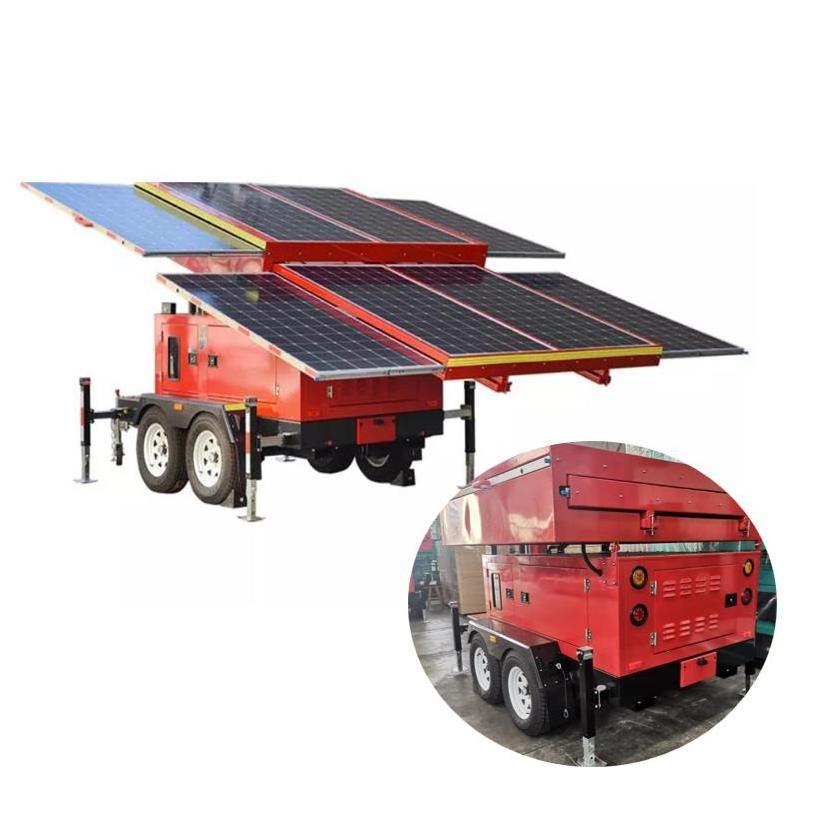

Mobile Hybrid Diesel Solar Power Supply Station Generator with 38400WH Battery
It is double Axle Trailer with Inverter, can
be widely used and relocated as power station for providing electricity to kinds of devices, such as led lights, surveillance cameras, etc.
GPS available and you can check the situation of the batteries from an APP.
For example, the application below.
|
Model Number
|
HP4608G
|
|
Application
|
Industrial, construction
|
|
Solar Panel Type
|
Monocrystalline Silicon
|
|
Battery Type
|
Lead-Acid
|
|
Output Voltage (V)
|
AC120V-240V within inverter
|
|
Output Frequency
|
50-60HZ
|
|
Solar Panel
|
8pcs 460w
|
|
Battery
|
16pcs 200Ah, DC12V,38400Wh
|
|
Inverter
|
8kW/8kVA,50/60 Hz,Pure Sine Wave
|
|
Controller
|
80A MPPT, 95% Efficiency
|
|
Input plug
|
1*AC240V / AC120V
|
|
Output socket
|
3*AC240V / AC120V
|
|
Trailer
|
US/EU/AU Standard,Ball Hitch,Double Axle,Manual Outrigger
|
|
Charing time
|
8.8 hours with good sunshine
|
|
Running time
|
19.2 hours for 1.6 kW with a full charge
|
|
Genset
|
5KW diesel Generator as backup
|
Backup generator of the
Mobile Hybrid Diesel Solar Power Supply Station Generator with 38400WH Battery
Diesel Genset 5kW/5kVA, AC220V/110V; Putting inside the trailer, could be pulled in-out easily.
And shutter for better ventilation.
