- Product Details
- {{item.text}}
Quick Details
-
Tolerance:
-
±1%
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rigang
-
Model Number:
-
Hot Rolled
-
Application:
-
transmission towers, Building Structure
-
MOQ:
-
1 Ton
-
Quality:
-
High Quality
-
Product:
-
Steel Angle
-
Packing:
-
Standard Packing
-
Sample:
-
Sample Freely
-
Shape:
-
Equilateral Angle Bar
-
Keywords:
-
Steel Angle Bar Carbon
-
Surface treatment:
-
Customers's Requirements
-
Length:
-
Customized Length
Quick Details
-
Standard:
-
JIS
-
Grade:
-
Q195-Q420 Series
-
Type:
-
Equal
-
Tolerance:
-
±1%
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rigang
-
Model Number:
-
Hot Rolled
-
Application:
-
transmission towers, Building Structure
-
MOQ:
-
1 Ton
-
Quality:
-
High Quality
-
Product:
-
Steel Angle
-
Packing:
-
Standard Packing
-
Sample:
-
Sample Freely
-
Shape:
-
Equilateral Angle Bar
-
Keywords:
-
Steel Angle Bar Carbon
-
Surface treatment:
-
Customers's Requirements
-
Length:
-
Customized Length
Products Description

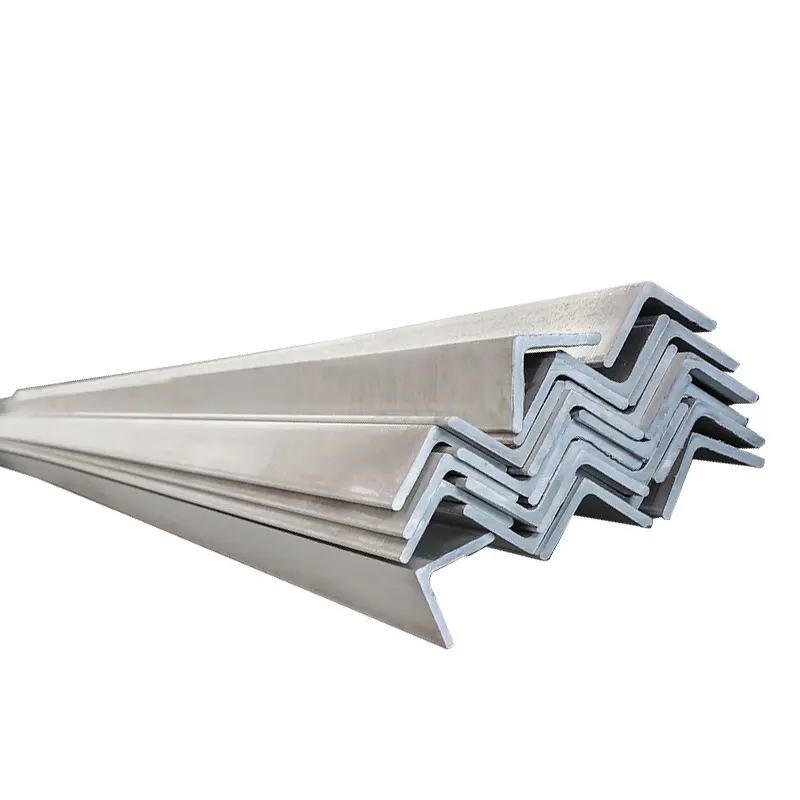

Angle steel
1. The steel bar material ,size are optional according to customers' demands .Also we supply Surface Treatment Service :
1. The steel bar material ,size are optional according to customers' demands .Also we supply Surface Treatment Service :
-Black Painted (varnish coating)
-Galvanized
-Cover With Oiled -Cover with PE, FBE etc
-Cover with corrosion resistant coating
2. We can also can production according to customer actual requests.
Paramenters
|
Product name
|
|
steel angle
|
|
|||
|
Scope of sizes
|
|
equal angles: 25*25mm-250*250mm
|
|
|||
|
|
|
unequal angles: 75*50-200*125mm
|
|
|||
|
Shape types
|
|
Steel equal angle,Steel uneaqual angle,L shape anges
|
|
|||
|
Grades
|
|
Q235B/Q355B/Q420B of GB standard
|
|
|||
|
|
|
S235JR/S355JR/S355JO/S355J2 of EN standard
|
|
|||
|
|
|
SS400/SS540 of JIS standard
|
|
|||
|
|
|
A36, A572 gr.50/60 of ASTM standard
|
|
|||
|
|
|
Gr. A, Gr. B, Gr. AH32, AH36 of ABS, CCS, VL, LR, BV, KR, RINA and NK standards
|
|
|||
|
Package
|
|
Standard seaworthy packing(plastic&wooden) or according to customers' requests
|
|
|||
|
Equal Angle
|
|
|
|
|||
|
Specification(mm)
|
Theoretical weight(kg/m)
|
Specification(mm)
|
Theoretical weight(kg/m)
|
|||
|
25*25*2.5
|
0.98
|
90*90*7
|
9.59
|
|||
|
25*25*3
|
1.12
|
90*90*8
|
10.90
|
|||
|
30*30*2.5
|
1.17
|
90*90*9
|
9.59
|
|||
|
30*30*3
|
1.36
|
90*90*10
|
13.30
|
|||
|
30*30*4
|
1.78
|
100*100*6
|
9.22
|
|||
|
30*30*5
|
2.16
|
100*100*7
|
10.70
|
|||
|
38*38*3
|
1.72
|
100*100*8
|
12.1
|
|||
|
38*38*4
|
2.26
|
100*100*10
|
14.90
|
|||
|
40*40*3
|
1.83
|
100*100*12
|
17.90
|
|||
|
40*40*4
|
2.41
|
100*100*13
|
19.10
|
|||
|
40*40*5
|
2.92
|
110*110*7
|
11.92
|
|||
|
40*40*6
|
3.50
|
110*110*8
|
13.47
|
|||
|
45*45*4
|
2.74
|
110*110*10
|
16.69
|
|||
|
45*45*5
|
3.38
|
125*125*8
|
15.51
|
|||
|
50*50*3
|
2.33
|
125*125*10
|
19.14
|
|||
|
50*50*4
|
3.06
|
125*125*12
|
22.70
|
|||
|
50*50*5
|
3.77
|
130*130*9
|
17.90
|
|||
|
50*50*6
|
4.43
|
130*130*10
|
19.70
|
|||
|
50*50*8
|
5.82
|
130*130*12
|
23.40
|
|||
|
55*55*5
|
4.17
|
130*130*15
|
28.80
|
|||
|
56*56*4
|
3.493
|
140*140*10
|
21.49
|
|||
|
56*56*5
|
4.326
|
140*140*12
|
25.52
|
|||
|
60*60*4
|
3.68
|
140*140*14
|
29.49
|
|||
|
60*60*5
|
4.55
|
150*150*12
|
27.30
|
|||
|
60*60*6
|
5.41
|
150*150*15
|
33.60
|
|||
|
60*60*8
|
7.09
|
150*150*16
|
35.80
|
|||
|
63*63*5
|
4.81
|
160*160*12
|
29.39
|
|||
|
63*63*6
|
5.72
|
160*160*14
|
33.99
|
|||
|
63*63*7
|
6.54
|
160*160*16
|
38.52
|
|||
|
65*65*5
|
5.00
|
175*175*12
|
31.80
|
|||
|
65*65*6
|
5.91
|
175*175*15
|
39.40
|
|||
|
65*65*8
|
7.66
|
180*180*12
|
33.16
|
|||
|
70*70*5
|
5.76
|
180*180*14
|
38.38
|
|||
|
70*70*6
|
6.38
|
180*180*16
|
43.54
|
|||
|
70*70*7
|
7.35
|
180*180*18
|
48.63
|
|||
|
70*70*8
|
8.37
|
200*200*14
|
42.90
|
|||
|
75*75*6
|
6.85
|
200*200*15
|
45.30
|
|||
|
75*75*8
|
8.92
|
200*200*18
|
54.40
|
|||
|
75*75*9
|
9.96
|
200*200*20
|
59.70
|
|||
|
75*75*10
|
11.02
|
200*200*25
|
73.60
|
|||
|
80*80*6
|
7.32
|
250*250*20
|
76.18
|
|||
|
80*80*7
|
8.48
|
250*250*25
|
93.77
|
|||
|
80*80*8
|
9.55
|
250*250*28
|
104.00
|
|||
|
80*80*10
|
11.87
|
250*250*30
|
111.32
|
|||
|
90*90*6
|
8.28
|
250*250*35
|
128.00
|
|||
