TRUSUS Fireproof Insulation 6Mm Thickness Magnesium Oxide Board Price

TRUSUS Fireproof Insulation 6Mm Thickness Magnesium Oxide Board Price

FOB Reference Price: Get Latest Price

≥500 Pieces

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hospital

Design Style:: Modern

Place of Origin:: China

Brand Name:: TRUSUS OR OEM

Model Number:: TR145

Certificate:: ISO/SGS/CE.

Sample:: Free

Color:: white, red, grey,pink,green

Feature:: Fire and water proof;Dam proof;Heat insulation;

Material:: Mgo,MgCL2,fiberglass mesh,sawdust,perlite

Thickness:: 3mm to 20mm

Quality:: Class A

Product name:: 6Mm Thickness Magnesium Oxide Board Price

Brand:: TRUSUS OR OEM

H.S:: 68080000

Quick Details

Warranty:: 3 years

After-sale Service:: Online technical support

Project Solution Capability:: Others

Application:: Hospital

Design Style:: Modern

Place of Origin:: China

Brand Name:: TRUSUS OR OEM

Model Number:: TR145

Certificate:: ISO/SGS/CE.

Sample:: Free

Color:: white, red, grey,pink,green

Feature:: Fire and water proof;Dam proof;Heat insulation;

Material:: Mgo,MgCL2,fiberglass mesh,sawdust,perlite

Thickness:: 3mm to 20mm

Quality:: Class A

Product name:: 6Mm Thickness Magnesium Oxide Board Price

Brand:: TRUSUS OR OEM

H.S:: 68080000

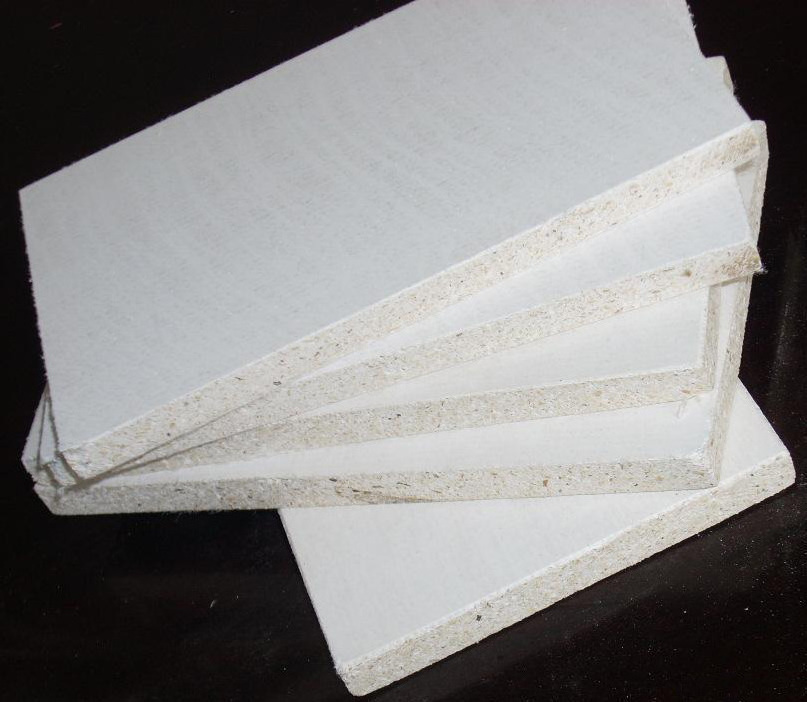

6Mm Thickness Magnesium Oxide Board Price

DESCRIPTION

MgO board is made from Magnesium Oxide(MgO), Magnesium Chloride(Mgcl2), fiberglass mesh, sawdust, perlite etc.,using highly purified active MgO as the main fireproof material of board, high-quality MgCl2 as the main cementing material to solidify other materials, alkali-resistance fiberglass mesh to ensure the high strength of board, soft sawdust and light non-combustible perlite as filling materials. It is a kind of Eco-friendly fireproof board widely used in construction and decoration.

(Pave slurry on the surface of MGO board to reduce the holes, make the surface more smoothness and less holes. Slurry paved board is a kind building material to further process.Suit to stick thin decorative material or paint on the board.)

APPLICATION

P artition and ceiling in the room, office building, hotel, hospital, airport, subway, gymnasium, library, museum, theater, factory building, computer laboratory, indoor natatorium. It is also used as the backing-lining, fireproof door and other wallboard, outdoor bill-board; base plate of various kinds of plaques; outside board of the ventilation shaft and the steel construction; roof boarding; electric wire and cable wraps up and applies etc.

FEATURE

1. Fireproof

It was tested by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC). Its fireproof level is rated level A (nonflammable level)

2. Dam proof

It is excellent in moisture-resistance. Dry bending strength is 15Mpa. Bending strength under absorbed moisture is 22Mpa.

3. Heat insulation

It has heat prevention material incorporated, it has great feature of heat prevention. Thermal resistance is 1.14m2k/w.

4. Soundproof

It is proved to have good noise insulation property after inspected by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC), The noise insulation factor of the wall can reach 44dB and 47dB. It has the best noise insulation constitution in China, especially the 95mm wall comprised by the 10mm board.It is light, it can save time, space, weight and expense. It is a new and high efficient wall.

5. Compact resistance

It is a light board. Its density is less than 1.0×1.03kg/m3. At the same time its bending strength and impact resistance is excellent. Also, it will maintain its' quality during construction.

SPECIFICATION

1. Size: 1200*2400mm 1220*2440mm 1200*3000mm

2. Thickness: 3mm to 20mm

3. Note s : other specifications is available.

TECHNICAL DATA

Density	0.95g/cm³
Bending strength	19.5MPa
Typical moisture content	6%
Drying shrinkage	0.26%
Moisture movement	0.50%
Impact strength	6.2KJ/m²
Pull put force of Screw	37.1N/mm
Non combustible performance	According to GB8624-1997, Combustibility is A1 Class.
Fire rating limited	6mm:>2Hours; 12mm:>4Hours;
Thermal Coefficient	0.109W/(m.k)
