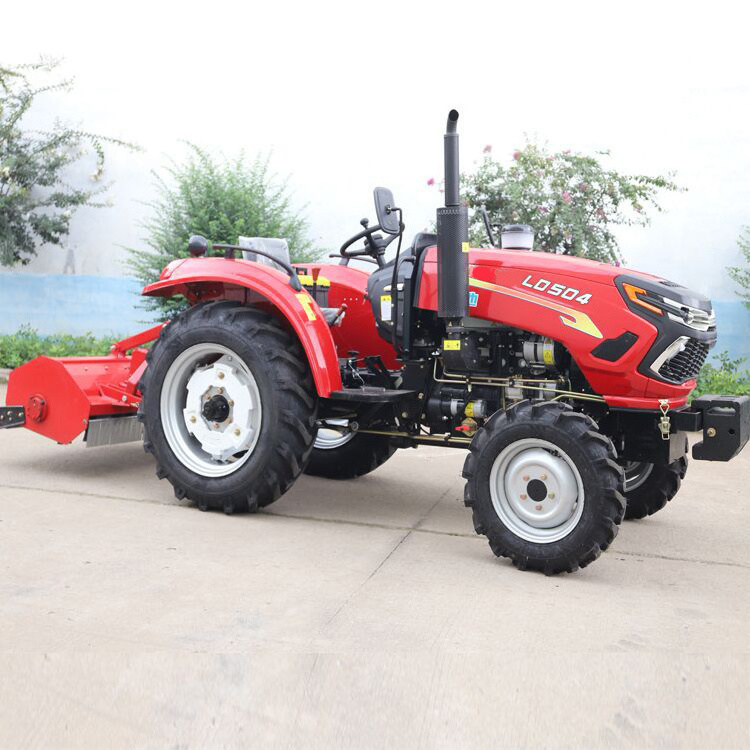

Agricultural Tractor
10-200HP Tractor
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1350 KG
-
Product name:
-
Agricultural Tractor
-
color:
-
Can be customized/original
-
Front /Rear Wheel:
-
6.0-16/9.5-24
-
Optional Front/Rear Wheel:
-
6.5-16/11.2-24
-
Clutch:
-
Dry-friction, Single Stage or Dry-friction. Dual Stage
-
Steering:
-
Hydraulic Type
-
Transmission Box:
-
8F+2R Collar Shift
-
Suspension Type:
-
Post Positioned Three-point Suspension
-
Type and Rev. (r/min):
-
Post-position, half-independent, 540/720
-
Spline Size:
-
I35 Rectangle Spline with 6 teeth
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Marketing Type:
-
Various accessories with customization
-
Engine Brand:
-
Laidong KM385
-
Weight:
-
1350 KG
-
Product name:
-
Agricultural Tractor
-
color:
-
Can be customized/original
-
Front /Rear Wheel:
-
6.0-16/9.5-24
-
Optional Front/Rear Wheel:
-
6.5-16/11.2-24
-
Clutch:
-
Dry-friction, Single Stage or Dry-friction. Dual Stage
-
Steering:
-
Hydraulic Type
-
Transmission Box:
-
8F+2R Collar Shift
-
Suspension Type:
-
Post Positioned Three-point Suspension
-
Type and Rev. (r/min):
-
Post-position, half-independent, 540/720
-
Spline Size:
-
I35 Rectangle Spline with 6 teeth
The price of the product is advance payment. If you are interested in purchasing, please contact customer service for
consultation.
For more information ⋙⋙
Please contact me
Product Description
●TE series tractor is designed for multiple light works, such as farming, transportation etc. ●Equipped with Chinese famous diesel
engine, It has the advantage of high cost efficiency and fuel efficiency, low maintenance cost and good working performance.
●Using central console and mature structure, the tractor is easy to control and maintain. ●8F+2R gearbox with easy operation and
convenient maintenance; ●Optional single/double action clutches for different needs and operation; Optional Herringbone tires,
paddy tires or other type of tires to meet your needs of working conditions. ●Hydraulic power steering( 4WD) makes it easy to
control and reduce the labor strength of operator.
engine, It has the advantage of high cost efficiency and fuel efficiency, low maintenance cost and good working performance.
●Using central console and mature structure, the tractor is easy to control and maintain. ●8F+2R gearbox with easy operation and
convenient maintenance; ●Optional single/double action clutches for different needs and operation; Optional Herringbone tires,
paddy tires or other type of tires to meet your needs of working conditions. ●Hydraulic power steering( 4WD) makes it easy to
control and reduce the labor strength of operator.
|
Main Technical Specifications :
|
|
|
Overall Dimension（mm
|
|
|
||||
|
Model
|
NT-254
|
NT-304
|
NT-354
|
NT-404
|
NT-454
|
||||
|
Type
|
4x4
|
4x4
|
4x4
|
4x4
|
4x4
|
||||
|
L x W x H
|
3050x1500x2030
|
3050x1500 x 2930
|
3150x1500 x 2040
|
3250x1500x2130
|
3250x1500x2130
|
||||
|
Front Wheel
|
1200
|
1200
|
1200 i2nn( lienal)
|
1200 1?nn f iieital)
|
1200 i2nn r itcnAi)
|
||||
|
Wheel Base
|
1700
|
1700
|
1800
|
1800
|
1800
|
||||
|
Min. Ground Base
|
360 (the bottom of transmission box)
|
|
|
|
|
||||
|
Min. Usage Mass (kg)
|
1350
|
1350
|
1450
|
1450
|
1450
|
||||
|
Model
|
Laidong KM385
|
Laidong 39C
|
Laidong 4L22BT
|
Laidong 4L23BT
|
Laidong 490
|
||||
|
Type
|
Vertical, water cooled and 4-stroke
|
|
|
|
|
||||
|
Rated Power (kw)
|
18.4
|
22.1
|
25.7
|
29.4
|
33.1
|
||||
|
Rated Rev. (r/min)
|
2300
|
2300
|
2350
|
2300
|
2400
|
||||
Detailed Images
You choose to buy our agricultural tractor, we provide you with the auxiliary equipment you want and deliver it to you together
Optional Attachments
Related Products
Packing & Delivery
If you need 1-3 units would be Wooden box, More than 4 units will loading by container
After 5-7 days we will shipping your goods when we received the advance payment
