Quick Details
-
Weight:
-
251 KG
Quick Details
-
Use:
-

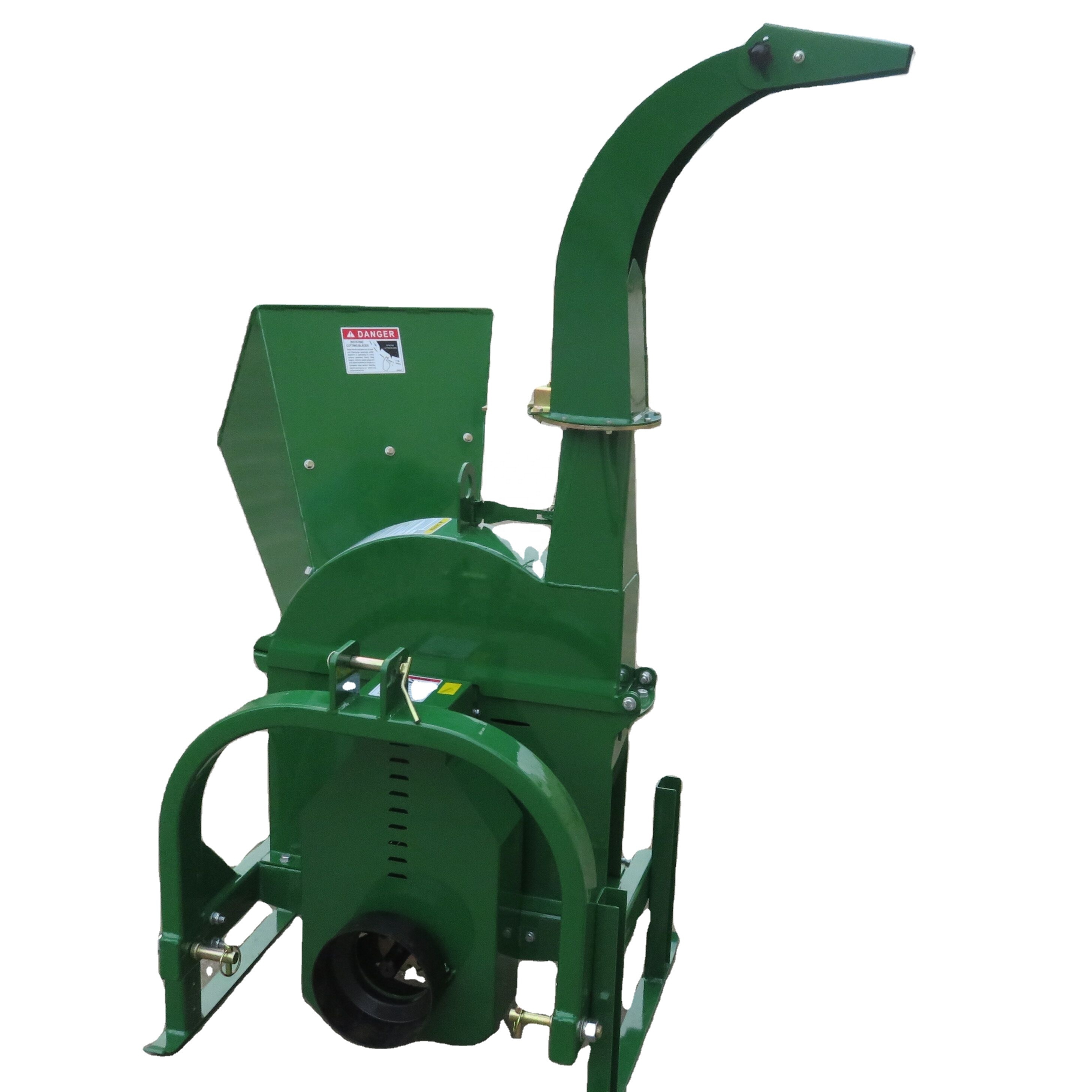

crush wood into chips
-
Place of Origin:
-
SHN
-
Brand Name:
-
rima
-
Weight:
-
251 KG
Product Parameters
|
Model
|
WC68
|
|
Drive System
|
Tractor PTO
|
|
Max. Chipping Diameter
|
150mm/ 6''
|
|
Tractor Required (at the PTO)
|
20-50HP
|
|
Hydraulic Oil
|
19 L / 5 gallons of ISO 32 or ISO 46
|
|
Hydraulic Pump
|
Belt driven
|
|
Flywheel Diameter/Thickness
|
24" x 3/4" thick (61cm x 2.0 cm thick)
|
|
Flywheel Speed
|
540 RPM
|
|
Flywheel Drive System
|
Direct drive
|
|
Flywheel Housing Design
|
Easy To open clamshell
(for easy clean out and blade changes) |
|
Flywheel Housing Thickness
|
5/16" (8mm) Thick
|
|
Flywheel Shaft
|
2" (50mm) Diameter
|
|
Number of Blades
|
4 Reversible blades
|
|
In-feed System
|
Self-contained hydraulic system
|
|
In-feed Drive
|
Forward/Neutral/Reverse with variable speed
(0-75 ft-min) / (23 m/min) |
|
In-feed Roller Size
|
8.25" (21cm) Chisel tooth
|
|
In-feed Opening
|
6" tall x 8" wide (15cm x 20cm)
|
|
In-feed Roller Pressure
|
Adjustable via spring tension
|
|
Quick Hitch Compatible
|
Yes
|
|
Discharge Chute
|
360 Degree swivel
|
|
Packing size
|
1120x870x1120mm
|
|
Weight
|
322/374 kg
|
|
40” Container
|
52pcs
|
