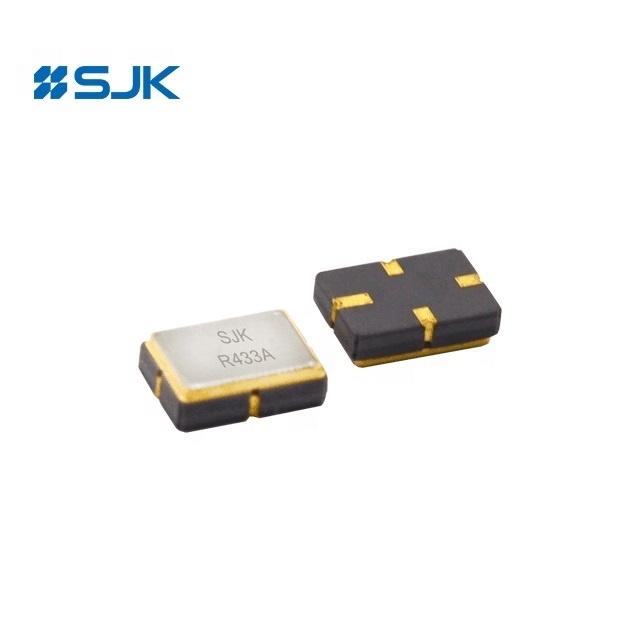

QCC4A Series SMD SAW Resonator
Model: QCC4A Series SMD SAW Resonator
Frequency: 315MHz~868.35MHz
Frequency tolerance: ±75KHz
Insertion loss: 1.2dB Max.
Size: 5.0×3.5×1.5mm
|
Specifications and Dimensions |
Features of QCC4A Series SMD SAW Resonator
1-port SAW resonator
Ceramic package for surface mounted technology (SMT)
Electrostatic Sensitive Device (ESD)
Package size with 5.0*3.5*1.5mm
Package code QCC4A
Application: Remote control, Security, Alarm etc
RoHS Compliant /Pb Free
Electrical Specifications of QCC4A Series SMD SAW Resonator
|
P/N |
Center Frequency (MHz) |
Frequency Tolerance (KHz)
|
Insertion Loss (dB) |
Package Code |
|
R315 |
315.000 |
±30 /±75 |
1.2 |
QCC4A |
|
R318 |
318.000 |
±30 /±75 |
1.2 |
QCC4A |
|
R346.8 |
346.800 |
±30 /±75 |
1.2 |
QCC4A |
|
R370 |
370.000 |
±30 /±75 |
1.4 |
QCC4A |
|
R423.22 |
423.220 |
±30 /±75 |
1.4 |
QCC4A |
|
R433.42 |
433.420 |
±30 /±75 |
1.1 |
QCC4A |
|
R433 |
433.920 |
±30 /±75 |
1.3 |
QCC4A |
|
R434.42 |
434.420 |
±30 /±75 |
1.4 |
QCC4A |
|
R868 |
868.350 |
±75 /±150 |
1.0 |
QCC4A |
Dimensions[mm]
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
